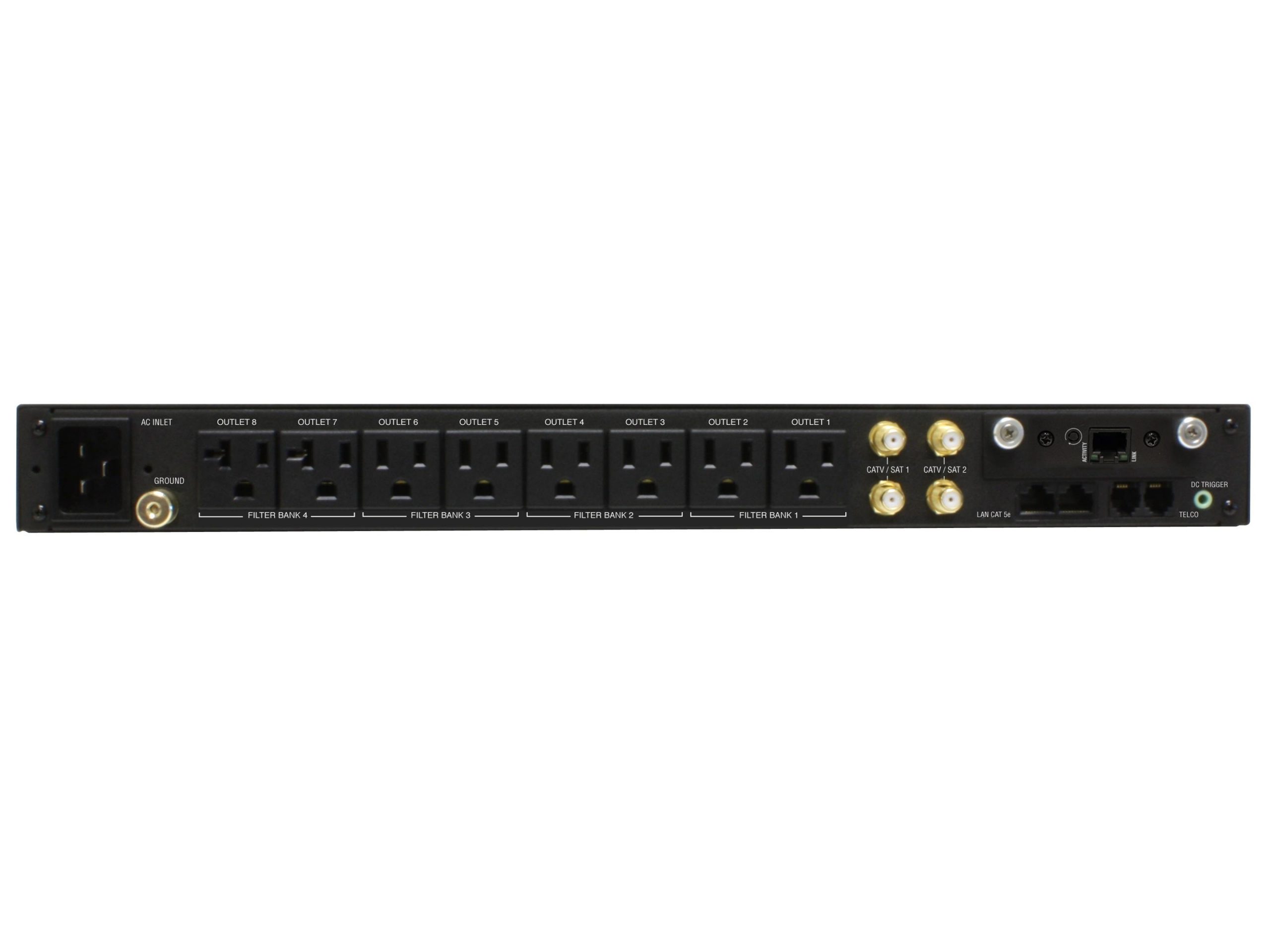

Panamax M4320-PRO 20A Power Conditioner/8 Individually Controlled Outlets

In Stock

$1,292.66

Business price

Shipping Info

Free ground shipping on select $300+ orders in the contiguous US.

Payment Methods

Mastercard, Visa, American Express, Discover, PayPal

Return Policy

We offer 30-Day money back guarantee of the purchase date.

Description

20A BlueBOLT Power Conditioner, 8 Individually Controlled Outlets, 8 Ft Cord

Features

Eight fully controllable/programmable outlets via RS-232C or BlueBOLT™
Linear Filtration with four isolated outlet banks
Two front-panel programmable reboot buttons
Removable rack ears (included) with a full depth metal chassis
BlueBOLT™ IP system control and monitoring, comes installed (RS232 communication card included, not installed)
Sleek new design including volt/amp meter, outlet status and warning LEDs
Dedicated 20 AMP
Circuit breaker/power switch

General

Weight	12 lbs.
Rack Ears	Removable
Dimensions	19 in. W (17 in. without rack ears) x 12.25 in. D x 1.75 in H

AC Specifications

Voltage Regulation	No
Total Outlets	9 outlets
Total Current Capacity	20 A (2400W)
Thermal Fusing	Yes
Protection Modes	L-N, L-G, N-G
Peak Impulse Current	135,000
Line Voltage	120VAC, 60 Hz
Isolated Banks	4
Initial Clamping Level	200V Peak, 141V RMS
High Current Outlets	2 outlets
Energy Dissipation	2700 Joules
Catastrophic Srge Circuit	Yes
Auto-resetting Under-voltage shutoff	100 VAC ± 2 VAC
Auto-resetting Over-voltage shutoff	134 VAC ± 2 VAC

LAN Protection

Telco Protection

Universal Coax Protection

EMI/RFI Noise Filtration

Banks 1,2,3	76db, 5KHz — 250 kHz
Bank 4, High Current Outlets	46 db, 250 KHz — 1 Mhz

Weight	14.00 lbs
