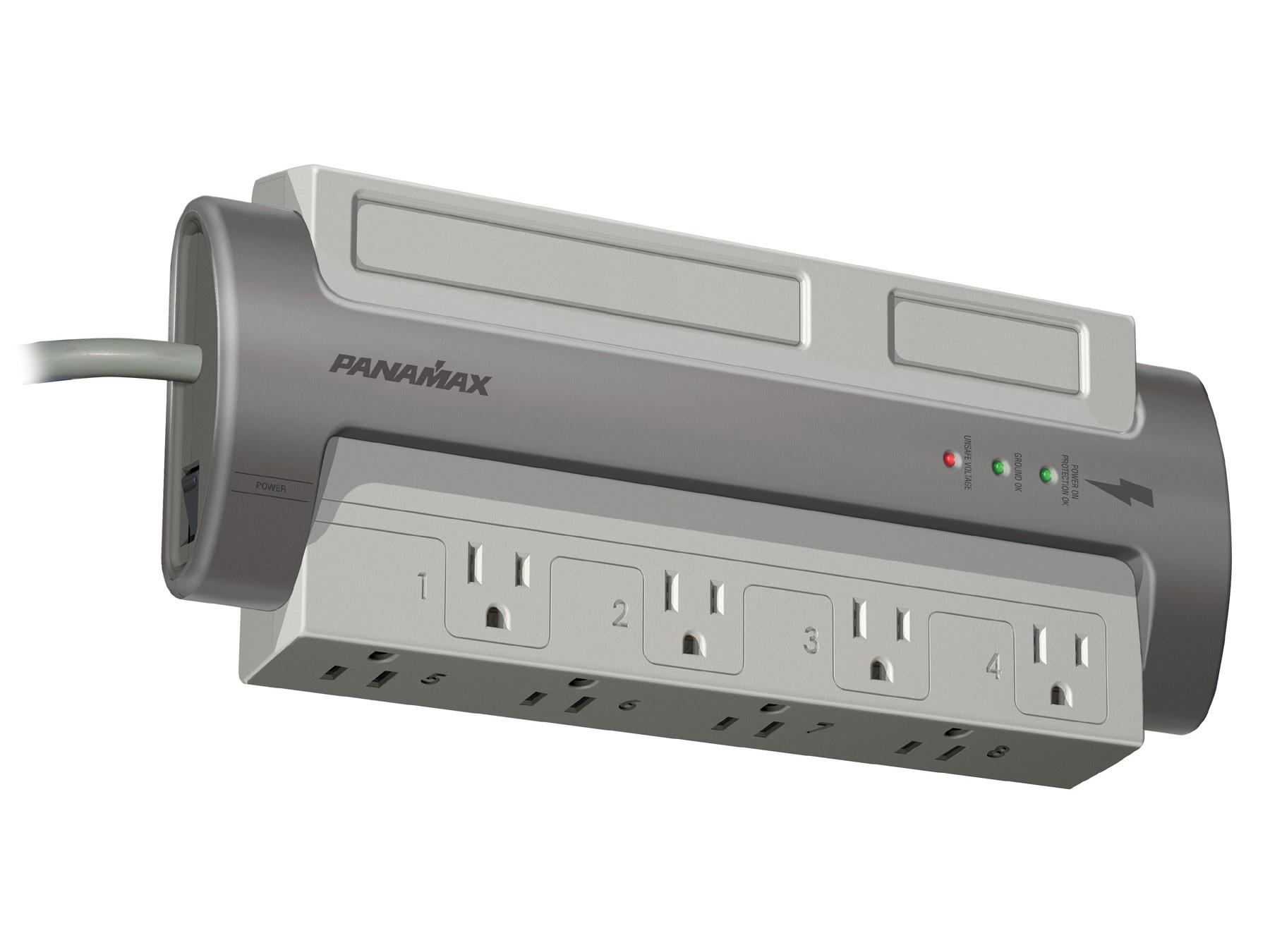

Download Manual The Panamax M8-EX is an 8-outlet AC surge suppression and noise filtration unit designed to protect and condition power for AV and broadcast equipment. It provides surge suppression, EMI/RFI noise attenuation, and protect-or-disconnect circuitry to safeguard connected devices. The unit combines surge protection with line conditioning to maintain reliable operation of sensitive electronics.
The M8-EX features eight AC outlets with transformer spacing to accommodate bulky power adapters and maintain an organized rack or shelf. It accepts add-on signal line modules for system expansion and includes a patented power management circuit to improve overall performance. Thermal fusing and a high peak impulse current rating add extra protection for unpredictable electrical events.
Technically the M8-EX delivers a single pulse energy dissipation of 1650 Joules and a UL 1449 suppression rating of 500V. Its response time is under 1ns and initial clamping level is 200V peak 141V RMS, ensuring fast and effective suppression of transients. The unit provides EMI/RFI noise filtration rated at 50 dB across 100 KHz – 1 MHz for cleaner power to sensitive audio and video gear.
Connectivity includes eight AC outlets with transformer spacing and an 8 ft fixed power cord terminated in a right angle 45 degree offset plug. Protection modes cover L-N, L-G and N-G connections and the device offers auto-resetting under-voltage shutdown at 90V +/- 6V and over-voltage shutdown at 144V +/- 8V. The M8-EX also supports lightning protection and uses protect or disconnect circuitry to prevent damage from sustained faults.
This unit is suited for AV racks, broadcast control rooms, postproduction suites and small server closets where clean, protected power is required. It protects mixers, patch bays, recorders and monitors from surges and line noise while preserving signal integrity. The M8-EX is also useful at remote production sites where robust surge protection and conditioned power reduce downtime risk.
Installation is straightforward with a fixed 8 ft cord and a right-angle plug for rear-panel routing or tight spaces. The chassis is built for equipment room use and provides thermal fusing to enhance safety during fault conditions. No special configuration is required beyond proper placement and connection to a grounded 120VAC outlet.
Overall the Panamax M8-EX provides a compact, specification-driven solution for protecting and conditioning AC power feeding critical AV and broadcast devices. Its combination of high joule energy dissipation, fast response time, EMI/RFI filtration and transformer-spaced outlets delivers practical protection and cleaner power. For installations needing reliable surge suppression and noise control the M8-EX is an effective component in a professional power management strategy.
