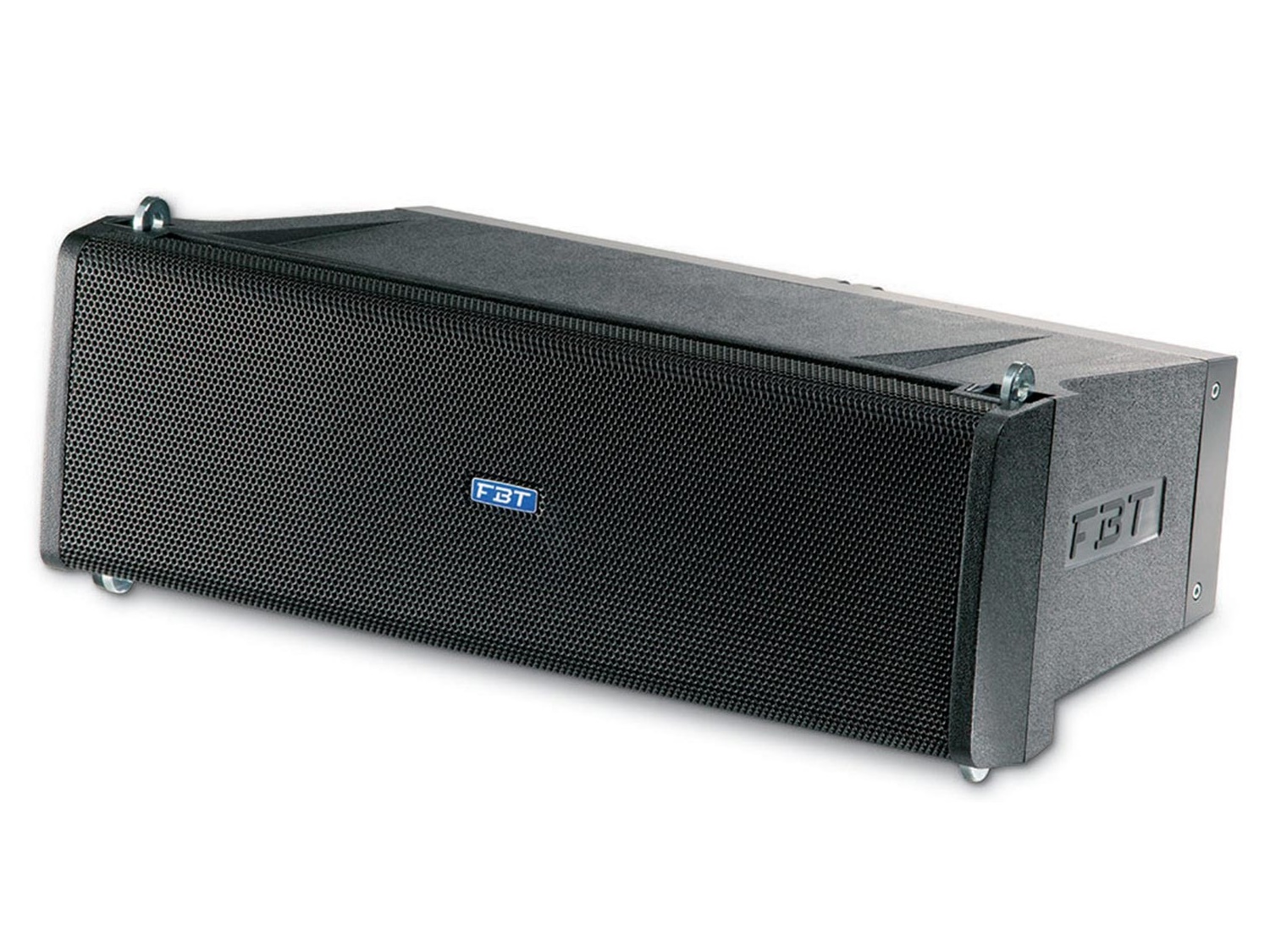

Download Manual The FBT MITUS 206L two-way compact line line array system shall incorporate 2 x 6.5” B&C neodymium woofers with1.7” voice coil and 1.4” exit B&C neodymium driver with 2.5” voice coil. The modularity of the FBT MITUS 206L makes it extremely flexible for a wide range of applications, from a small 2 cabinet P.A. system to an elaborate line array system consisting of up to 12 MITUS 206L cabinets along with multiple FBT MITUS 212FS subs for large concert events.
The FBT MITUS 206L shall meet the following performance criteria: Frequency response of 75Hz to 20kHz,Frequency sensitivity of 97dB LF / 108dB HF, Maximum SPL of 129dB for LF and 133dB for HF, Recommended power amplifier 500W RMS/16 Ohm LF and 150W RMS/16 Ohm HF. The waveguide, optimized by BEM finite element simulation, offers 100° horizontal dispersion; engineered to be perfectly integrated with the HF compression driver it allows the dispersion of a flat acoustic wave to over 18kHz. The system shall not include an internal passive crossover. The front shall be protected by a heavy duty metal grille with anti-resonance spacers and exclusive synthetic cloth to protect the drivers. Input connectors shall be parallel wired Neutrik NL4 speakon. Polypropylene gas-injected enclosure with integrated rigging hardware adjustable with 0° to 10° angle betwee cabinets at 2° step for flying and ground stacked configurations.
Features:
- Compact 2-way, bass-reflex design
- Passive version, recommended amplifier of 500Wrms / 16ohm LF and 150 Wrms / 16ohm HF
- Internal HF protection
- Neutrik Speakon NL- 4MDV connectors IN & LINK OUT
- External digital processor requie
- 2 x 6.5’’ (165 mm) B&C neodymium woofers with 1.7’’ (44 mm) coil
- 1.4’’ (36 mm) exit B&C neodymium driver with 2.5’’ (64 mm) coil
- Frequency response from 75Hz to 20KHz
- 100° horizontal waveguide with very low distortion and near flat wavefront up to 18Khz
- High impact polypropylene gas-injected enclosure withintegrated rigging hardwareadjustable with 0° to 10°angle between cabinets at2° step
- Ideal for small to medium sized application, from single pole mounted loudspeakers with 100°H x 10°V coverage
- to multiple cabinet full sized line array, the MITUS 206L maybe used also in outdoor applications where the system is not directly exposed to the elements
- Wide range of hardware accessories for flying and ground stacked configurations
- Very lightweight, only 13.5Kg
