Description

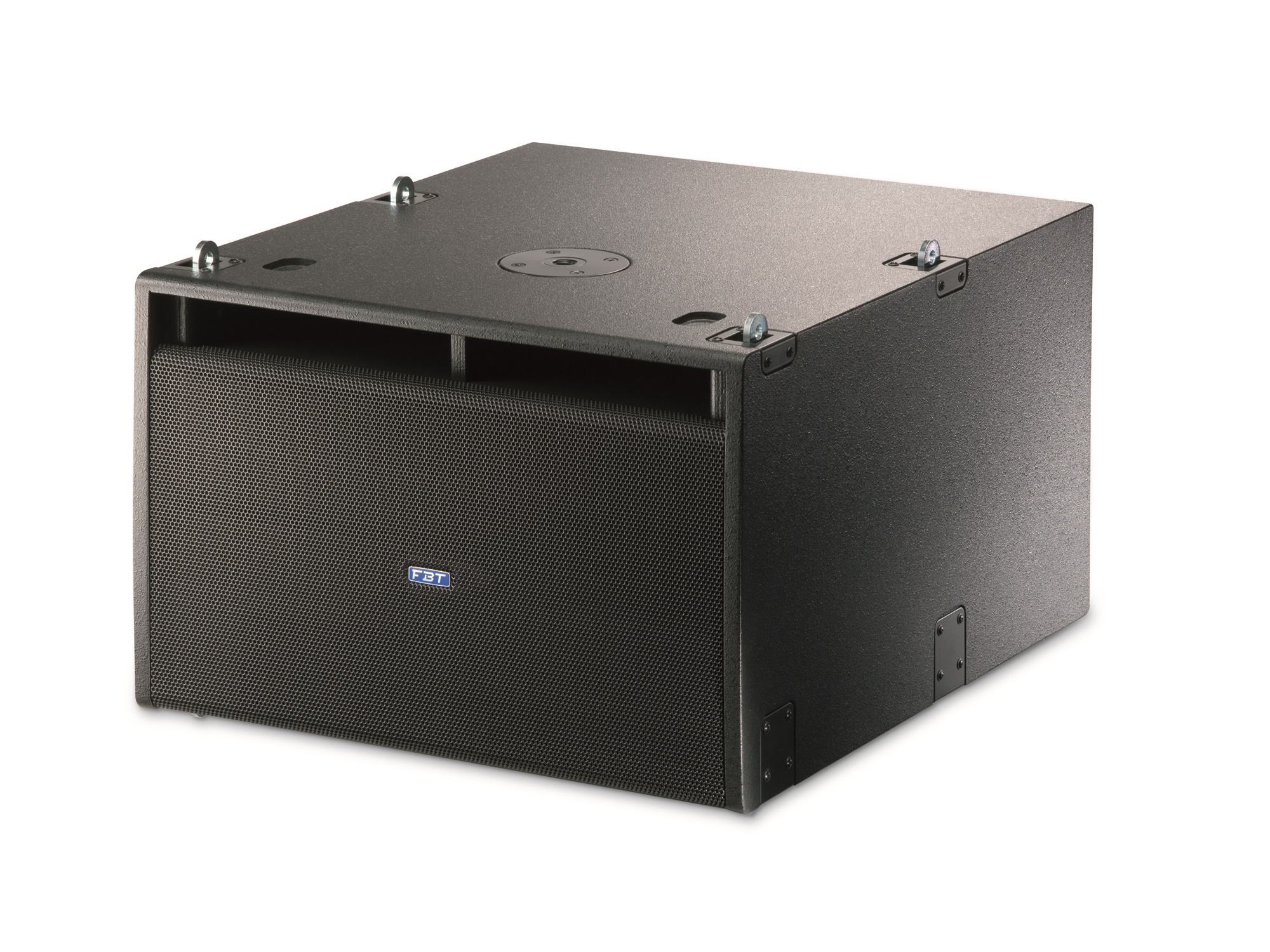

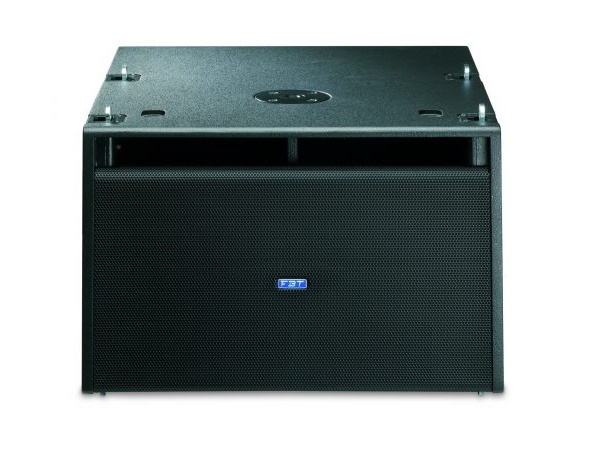

Download Manual The FBT MITUS 212FSA powered subwoofer meet the following performance criteria: frequency response of 45Hz to 120Hz, peak output of 138dB half-space. The FBT MITUS 212FSA is a vented band-pass design incorporating 2×12″ B&C neodymium magnet high excursion woofers with 3″ voice coil. The modularity of the FBT MITUS 212FSA makes it extremely flexible for a wide range of applications, from a small system to an elaborate line array system consisting of up to 12 MITUS 206LAcabinets along with multiple FBT MITUS 212FSA subs for large concert events. The FBT MITUS 212FSA provides a DSP with 8 presets cardioid and infra configurations, delay. The control panel provides XLR «in&link», volume, preset, delay, phase 0°-180°, ground lift switch. The MITUS 212FSA feature Baltic birch plywood construction covered in a scratch resistant black paint with a M20 top-mounted stand adapter.
Features:
- Compact vented band pass subwoofer sharing the same width and hardware suspension of the MITUS 206LA
- 320 mm (2 x 12’’) B&C neodymium magnet high excursion subwoofers with 75 mm (3’’) voice coils
- Frequency Response from 45Hz to 120Hz
- Class D amplifier delivering 1200WRMS
- Switch mode power supply
- DSP with 8 presets, cardioid and infra configurations, delay

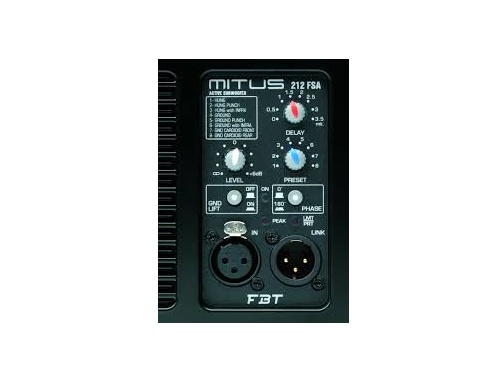

- Control panel with XLR input and link, volume, presets, delay, phase 0°-180°, ground-lift
- 15 mm (5/8’’) birch plywood enclosure, scratch resistant black paint
- Low frequency extension cabinet for the MITUS 206LA line array for flying or ground stacked configurations.
- M20 top mount stand socket
