Description

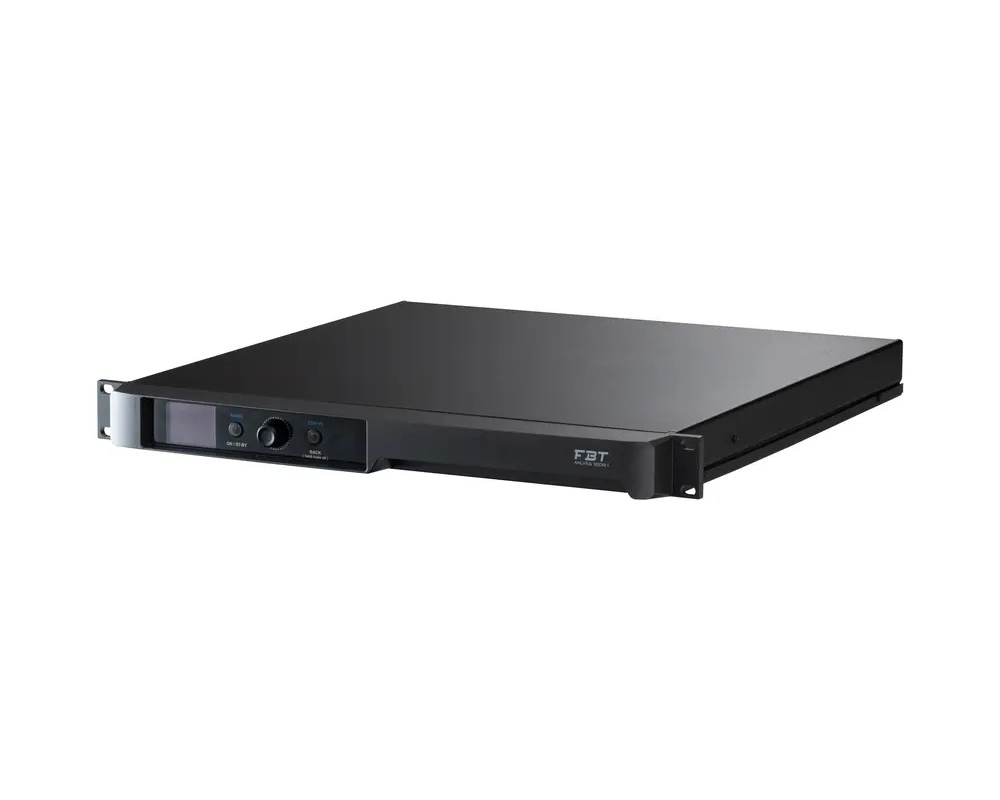

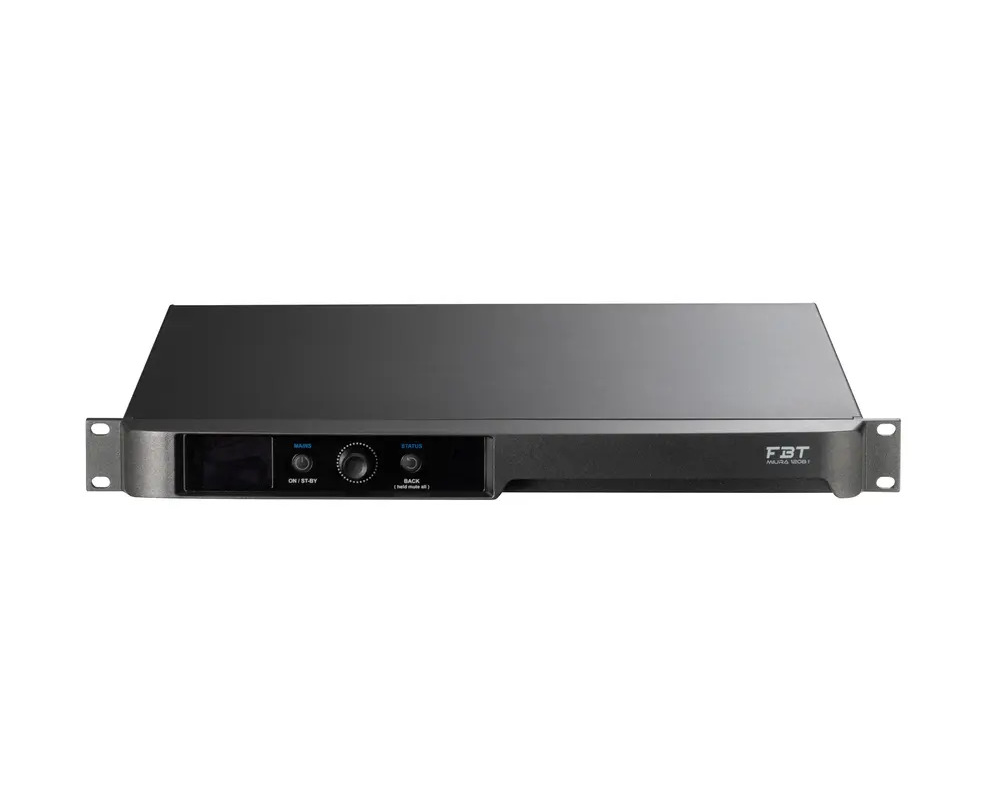

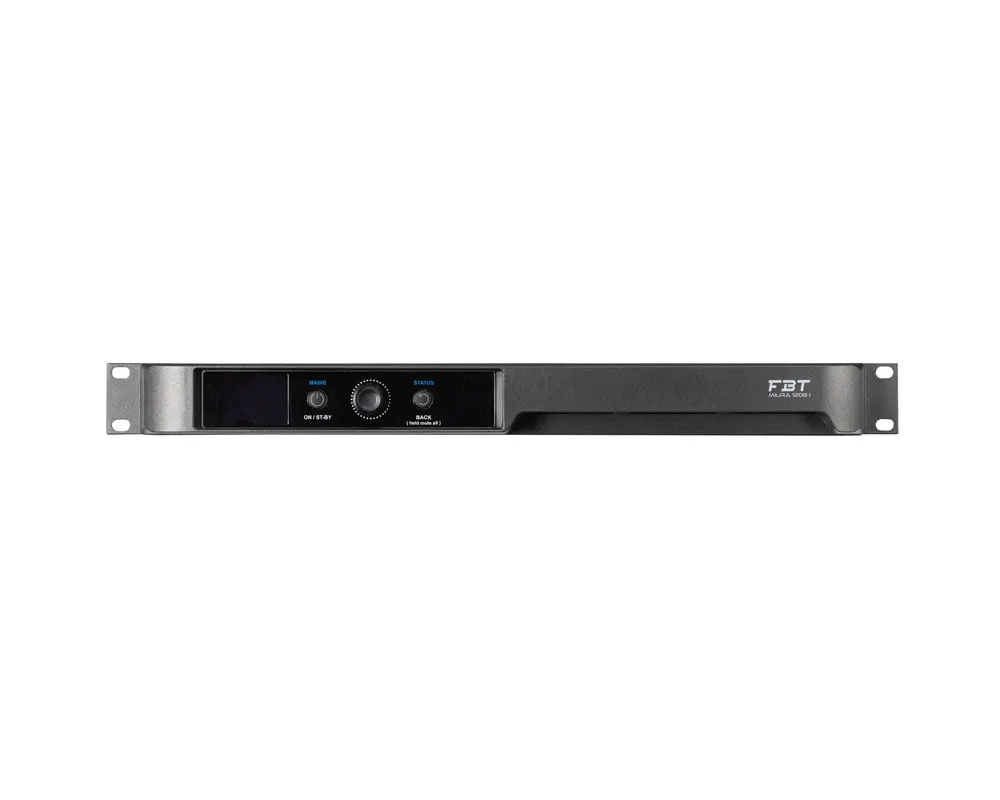

The MIURA 1208I is a compact 1U, 8-channel Class D amplifier designed for fixed installations requiring flexibility, precision, and reliable operation. It delivers 8×150W at 4–16 or 4×300W at 100V in bridge mode, supporting both low-impedance and high-impedance lines with full asymmetric power distribution. Integrated Dante audio streaming (4 channels) and TCP/IP control (AES70 compatible) via EtherCON ports allow seamless integration into networked systems through INFINITO software. The amplifier also features AES3 digital inputs with link, and offers efficient energy management via auto-standby and PFC-enabled universal PSU. A front OLED display with encoder ensures onboard setup, while Euroblock I/O, GPIO, and comprehensive protection features guarantee safe operation in complex installations.
Download Manual Features
- 8×150W at 4–16Ω / 4×300W at 70/100V (BTL mode)
- Class D topology with ultra-low distortion
- Full asymmetric loading with SE and BTL operation
- TCP/IP control (AES70) via INFINITO software
- 4-channel Dante audio receiver (24-bit, 48–96kHz)
- AES3 digital audio input with link
- OLED display with push encoder for local setup
- Auto-Standby / Wake function
- Universal SMPS with Power Factor Correction
- Euroblock audio I/O and 8-channel GPIO
