Description

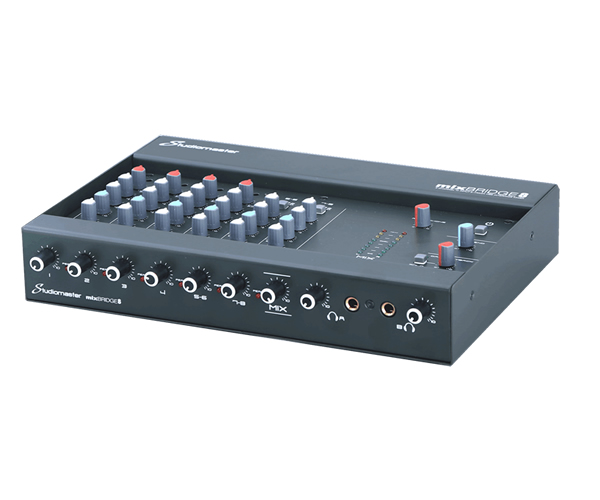

The Mixbridge 8 is a compact hybrid audio mixer and USB interface designed for small studio, live streaming and podcast setups. It combines analogue mixing controls with a built-in 24bit/48kHz USB audio interface to record and play back stereo tracks on a computer. The unit is lightweight and powered by an external 12V DC supply – making it simple to deploy in portable or desktop installations.
Key features include eight inputs configured as four mic/line combo jacks plus two stereo channels, individual +48V phantom power switches, and Hi-Z inputs on channels 1 and 2 for direct instrument connection. A dedicated TRRS mix-minus aux input enables live caller management for podcast and mobile streaming scenarios. Two-track USB I/O permits bidirectional stereo recording and playback for DAW workflows and live broadcast feeds.
Technical performance is optimized for clean audio capture and routing – the mixer offers MIC EIN below -100dB, THD at 0.03% or lower and an 80dB signal-to-noise ratio. Frequency response spans 10Hz to 20kHz within a +1/-3dB tolerance and the mic gain range is +6dB to +50dB while line gain spans +10dB to -34dB. EQ is provided as a simple 2-band HI/LO, with fixed HI at 12kHz and LO at 80Hz each offering +/-15dB of adjustment.
Connectivity covers balanced mix outputs on 1/4″ jacks, an aux/monitor output, four 1/4″ stereo inputs and four combo XLR/TRS mic/line inputs. The USB I/O presents as 2-track stereo in and out at 24bit/48kHz for direct computer integration. MIDI is not provided and the unit uses an external 12V DC PSU for power.
Typical applications include small live performances, podcast production, mobile streaming and desktop recording. The Hi-Z inputs make it convenient to connect guitars or other instruments directly without DI boxes and the TRRS mix-minus supports call-in guests on mobile devices or streaming apps. The compact footprint and straightforward front-panel controls suit single-operator workflows where quick adjustments are required.
Setup is simple and the mixer is built with rugged chassis components suitable for regular transport and studio use. Individual phantom power switching and combi jacks provide professional mic handling and flexible routing. The Mixbridge 8 delivers a practical balance of analogue control and USB interface capability for creators who need reliable audio I/O and live call integration.
