Description
The TASCAM Mixcast 4 is a compact podcast station that combines mixing, multi-track recording and streaming in a single desktop unit. It supports up to seven participants by combining four local microphone inputs with USB, Bluetooth and TRRS phone inputs. This unit is designed to simplify production workflows and deliver broadcast-ready audio without complex setup.

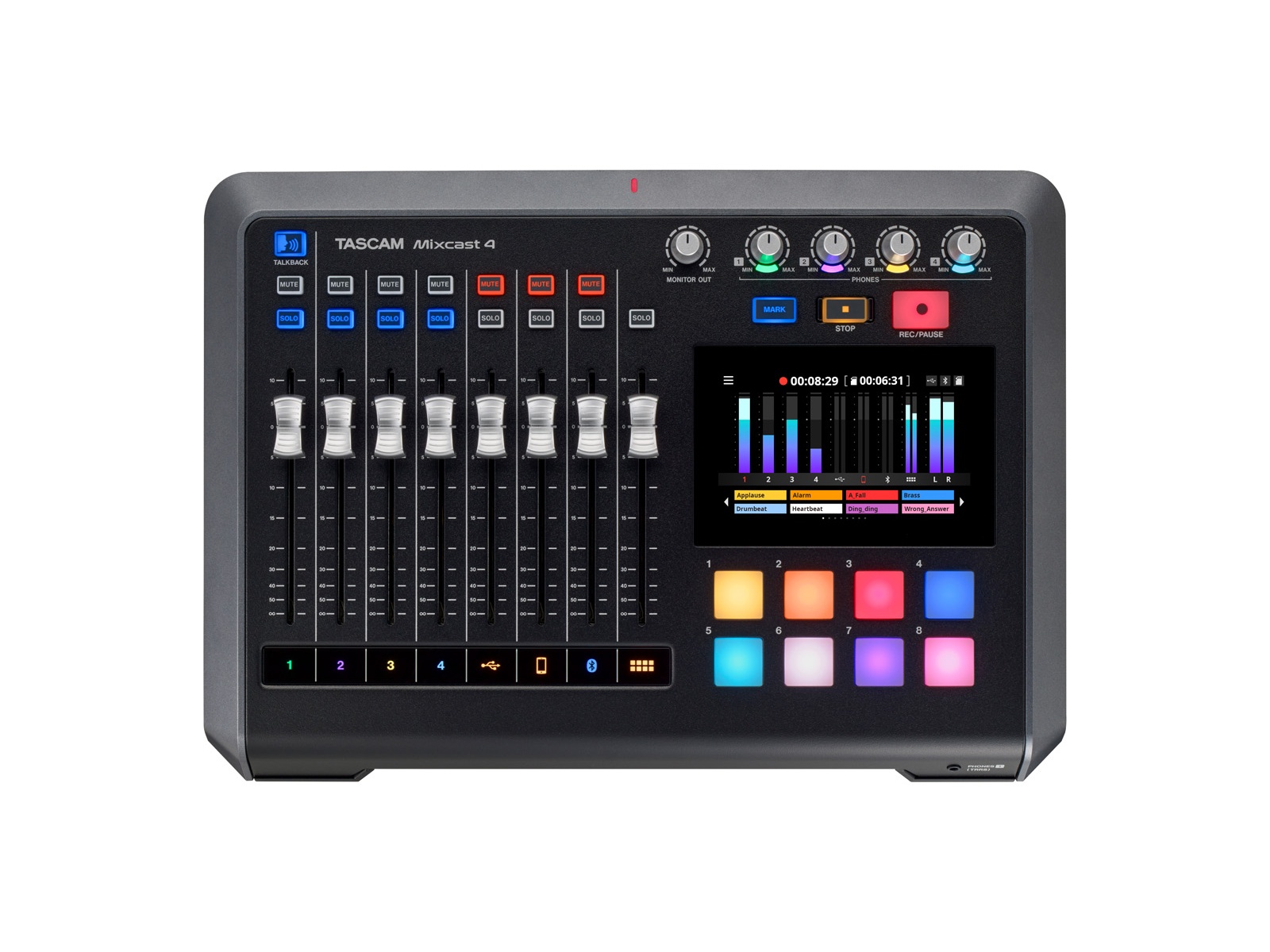

Key features include four XLR/TRS combo mic inputs with an auto-mix engine, four independent headphone outputs and customizable trigger pads for instant sound effects. The integrated 5-inch color touch panel provides fast access to level control, pad banks and recording controls. Real-time voice effects such as reverb and voice transformation can be applied to any mic input group for live content enhancement.
Recordings are saved directly to SD/SDHC/SDXC cards in 24-bit 48 kHz WAV(BWF) format and the unit supports up to 14 internal recording channels. The Mixcast 4 functions as a 14-in/2-out USB audio interface and is class-compliant with USB Audio Class 2.0 at 48 kHz/24-bit. Microphone preamp performance includes an EIN of -125 dBu, SNR of 101 dB and THD of 0.003% for low-noise, high-fidelity capture.

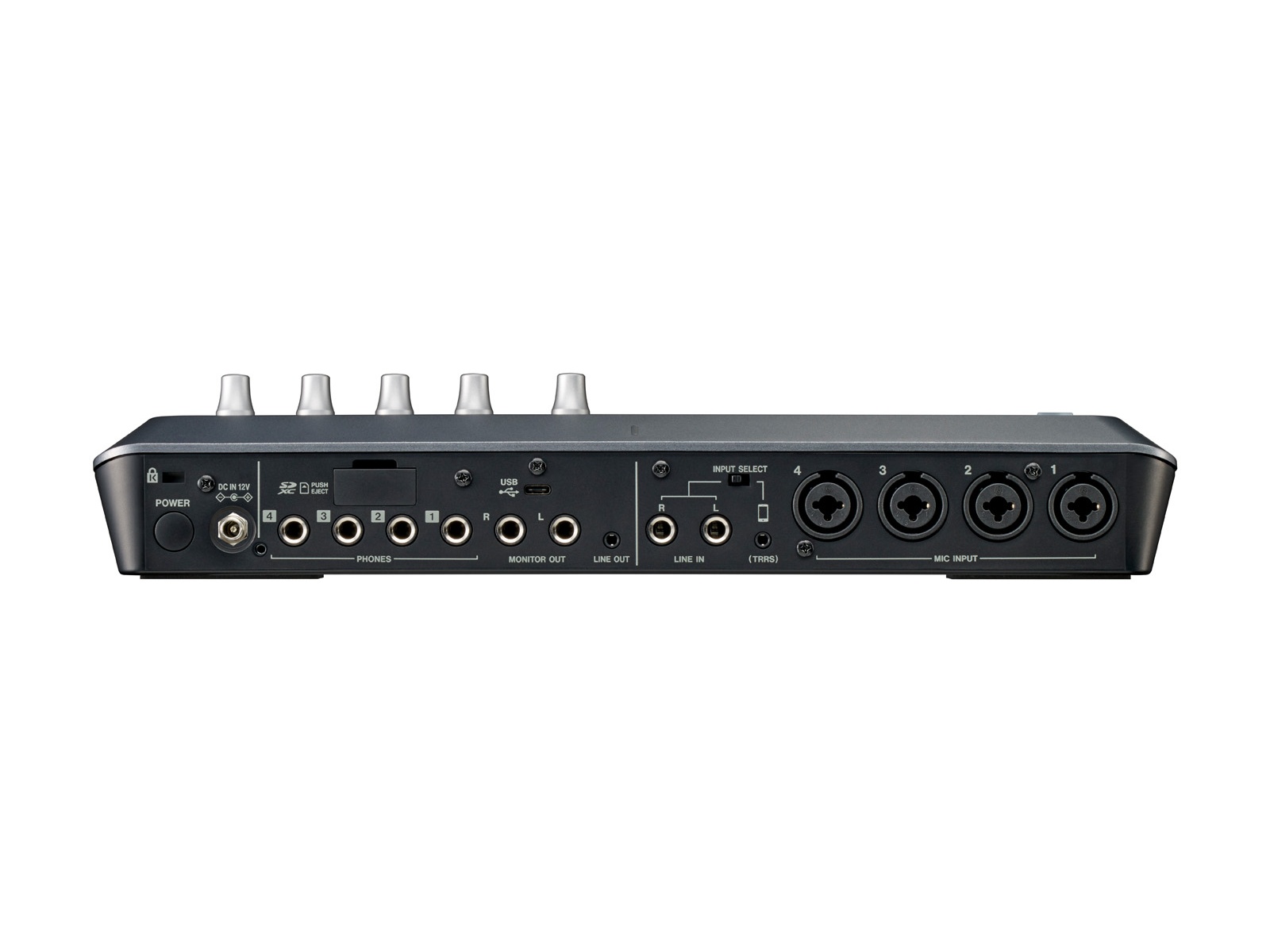

Connectivity covers XLR/TRS combo mic jacks, balanced line inputs and outputs, a 3.5 mm CTIA TRRS LINE IN for phone calls, Bluetooth A2DP support and USB-C for host connection. Mix-Minus routing prevents echo when taking call-ins from Bluetooth, USB or TRRS-connected phones. The unit is fully compatible with TASCAM Podcast Editor software for waveform editing and pad management.
Typical applications include multi-host podcasts, live streaming, on-location event audio and voice-over sessions where quick setup and reliable multi-track capture are required. The Mixcast 4 supports talkback to talent via headphone outputs and expanded talkback routing to USB/Bluetooth/TRRS to assist multi-person productions. Its sound pads and pad banks let producers trigger jingles, stingers and loops in real time without interrupting the main recording.
Setup is straightforward thanks to automatic mic mixing and a touch-first control surface that reduces the need for deep menu navigation. The unit offers a durable, road-ready enclosure and a compact footprint that fits desktop or studio furniture. Firmware updates expand features such as real-time effects and pad bank switching to keep the unit current over time.
