Description

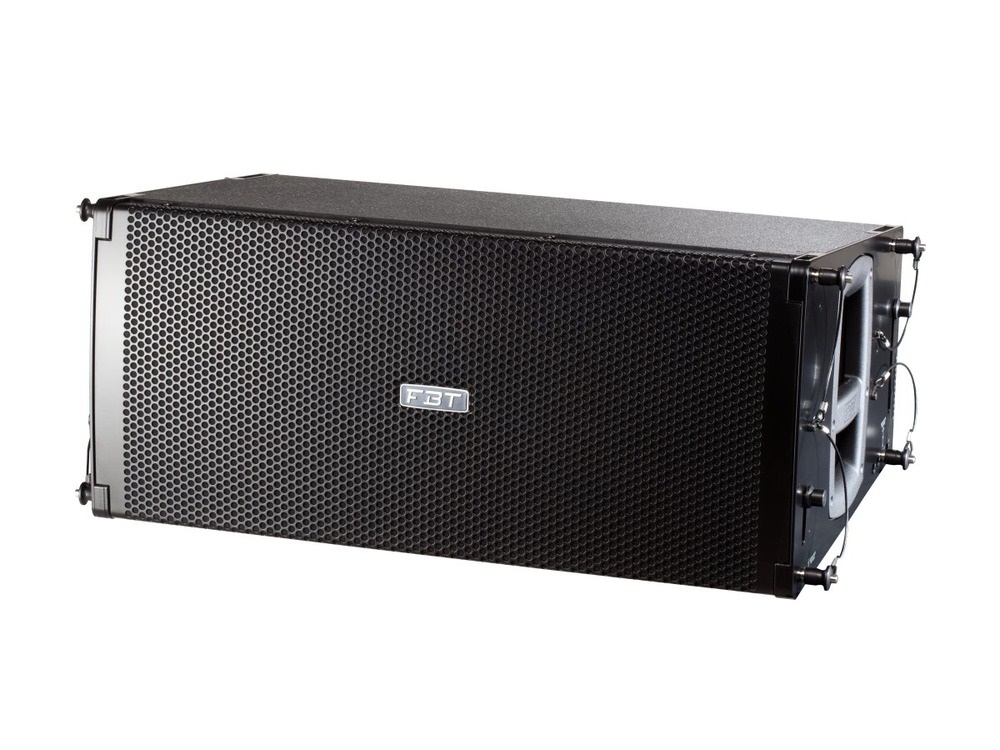

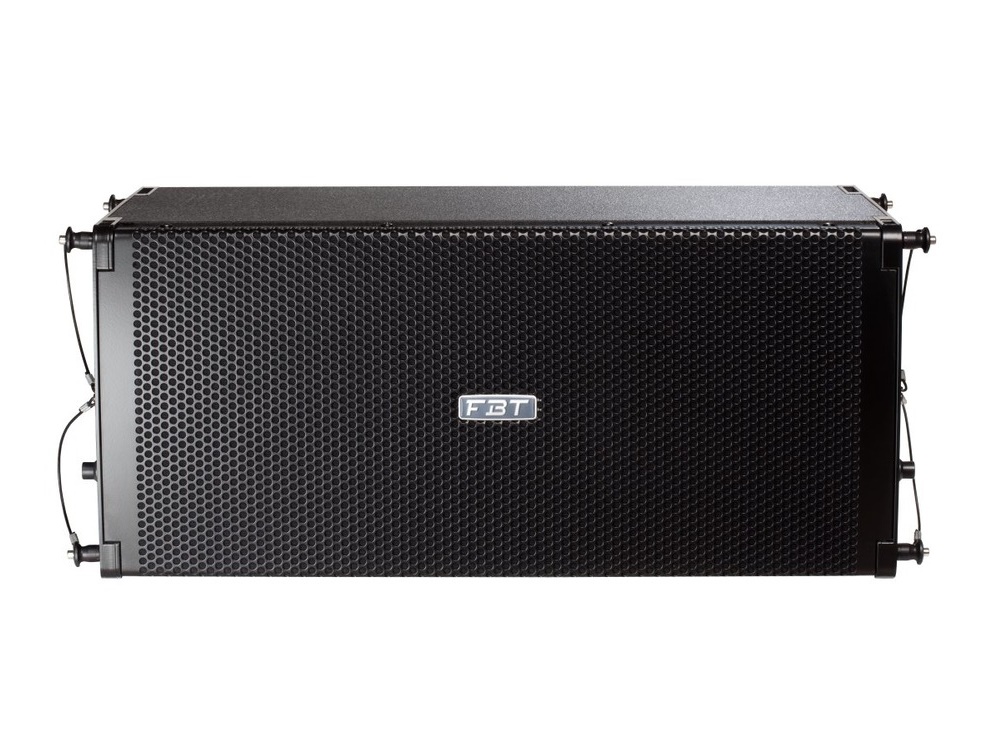

Download Manual A true line array system ancompassing advanced technology and refined italian engineering, these are the principles behind MUSE, a new sound reinforcement solution from FBT that redefines the modern line array in terms of power, size, light weight, flexibility and ease of use. The MUSE 210L is the ideal choice when line array performance is needed and a fast and easy set up is a must. The modularity of the FBT MUSE 210L makes it extremely flexible for a wide range of applications, from a small two cabinets PAsystem to an elaborate line array system consisting of up to 16 FBT MUSE 210L cabinets along with multiple FBT SUBLINE 218S subs for large concert events. The system features 2 x 10″ woofers with 2.5″ voice coil and two custom B&C HF compression drivers with 1″ throats.
The FBT MUSE 210L shall meet the following performance criteria: Frequency Response of 60Hz to 18kHz, Frequency Sensitivity of 101dB for LF / 112dB for HF, Maximum SPL of 135dB, Recommended Power Amplifier 800W RMS LF and 200W RMS HF. The system not include an internal passive crossover. The FBT MUSE 210L cabinets coupling hardware is internally integrated and allows the suspension of 16 arrays with a splay angle between 0° – 10° with 1° step. FBT MUSE 210L cabinets are constructed from 0,59″ (15mm) birch plywood, and incorporate two die cast aluminium handles; the front is protected by a heavy duty metal grille with anti-resonance spacers and exclusive synthetic cloth to protect the drivers. The FBT MUSE 210L provides a wide range of hardware accessories for flying and ground stacked configurations.
Features:
- Strong birch plywood cabinet
- Recommended amplifier 800+200W RMS
- 2 x 10” woofers with 2.5″ coil
- 2 x custom B&C HF compression drivers with 1″ throats
- 90°x10° max dispersion ( dependant upon n. of elements)
- Control panel with 2 x speakon NL4
- High SPLcapability: 135dB
- Integrated rigging hardware
- Completely Manufactured in Italy
