Description

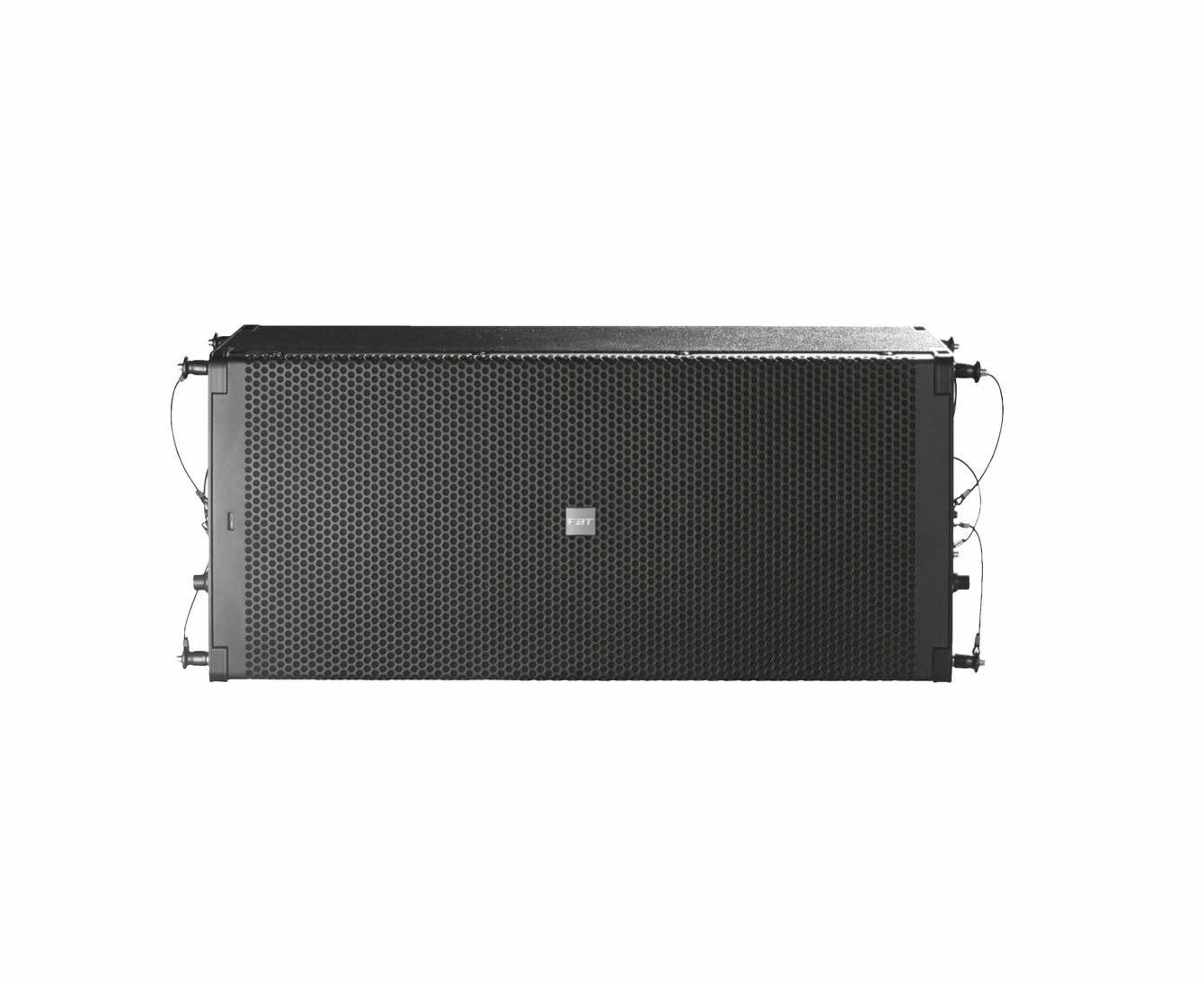

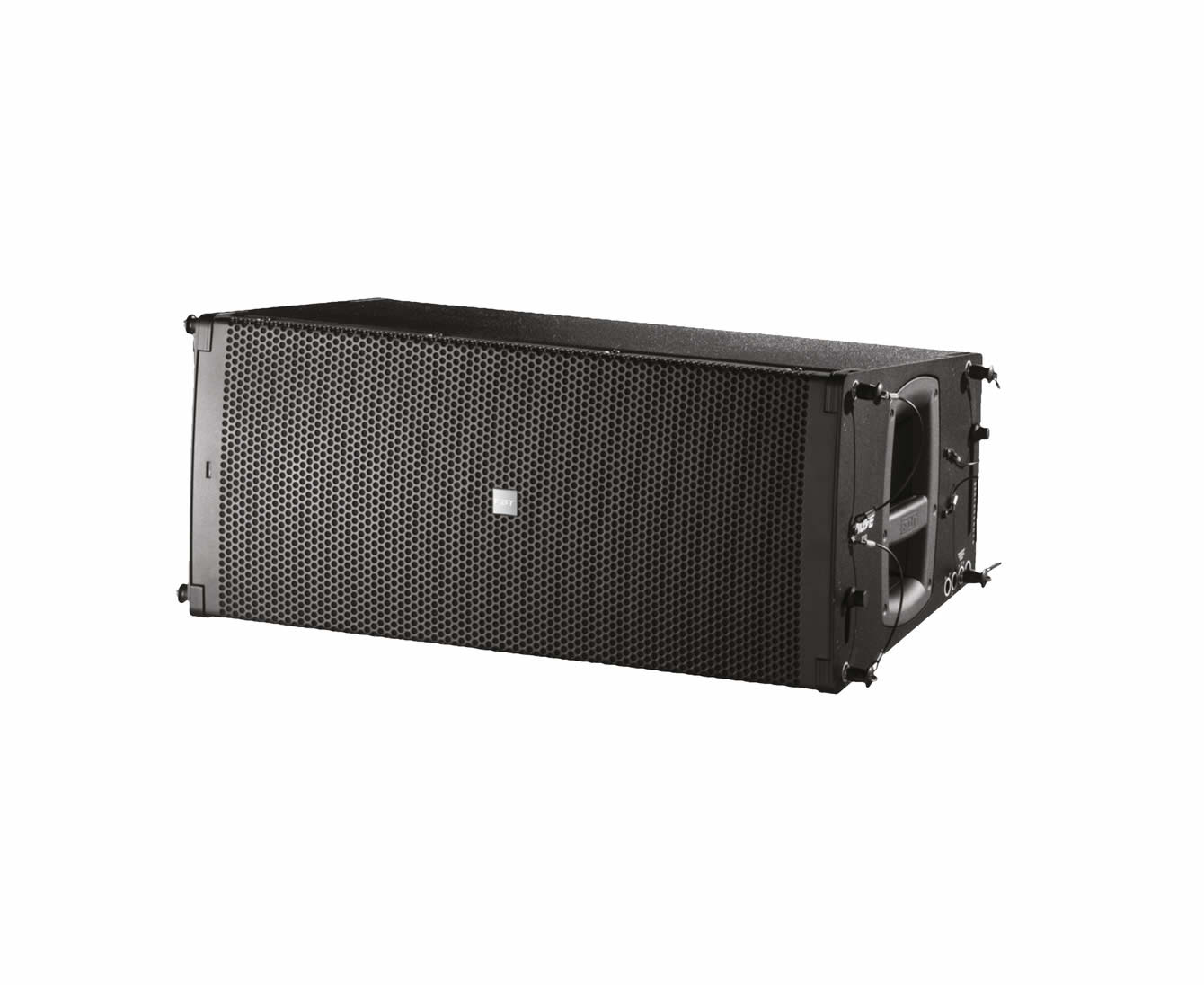

An innovative line array system with refined, technologically advanced engineering. These are the qualities of the new speaker that redefines the concept of line array in terms of power, size, lightness, flexibility and practicality of use. The modularity from 2 to 16 speakers allows use in a wide variety of situations, from small band to large outdoor concert.It has two custom 250mm woofers with 64mm high excursion coil and two custom B&C drivers with 25mm throat. The waveguide, optimised with BEM finite element simulations to minimise distortion, has a horizontal dispersion of 90°. Designed to present an optimal load to the driver’s membrane starting from 800Hz, it allows the propagation of a flat acoustic wave up to over 18Khz, strictly respecting the most stringent physical criteria for an ideal cylindrical source. The acoustic configuration with the central horn allows for a particularly linear and symmetrical horizontal dispersion.
The cabinet is made of 15mm birch plywood with two die-cast aluminium handles.
The hardware integrated in the cabinet allows the suspension of 16 boxes with a 10:1 safety factor and an inclination from 0° to 10° at a step of 1°. The design of the no-compromise mechanics in terms of practicality and speed of set-up of the system makes it particularly suitable for daily touring movements.
The aesthetic elegance also makes it very suitable for fixed installations.
The pinnacle of the entire project is the 800+400W RMS amplification module with TCP/IP network interface. Based on the OCA ALLIANCE AES70 standard, it communicates with the ‘INFINITO system management suite’ remote control software
INFINITO is a true revolution in the FBT world that enhances the user experience, reaching new heights in terms of performance and simplicity!
It is a software platform that is fully developed in house by the FBT R&D team that offers real time monitoring of the internal sensors and the status of the connected devices, fast IN/OUT Vu-meters, controls of all the parameters, group management and warnings readout.
Features
- Compact 2-way line array system in bass-reflex
- 2x 10″ woofers with 2.5″ voice coil
- 2x B&C custom drivers with 21″ throat
- Frequency response from 55Hz to 20kHz
- 800W class D amplifier for LF and 400W for HF with switching power supply unit
- TCP/IP OCA70 compatible network interface
- EtherCon RJ45 input and output for daisy-chain
- OLED DISPLAY and ENCODER for control
- Robust birch plywood cabinet with integrated suspension mechanism and adjustable angle between 0° and 10° in steps of 1°
- 2 aluminium handles
- Wide range of accessories for both hanging and resting configurations, preparation for amplifier control unit rain cover
