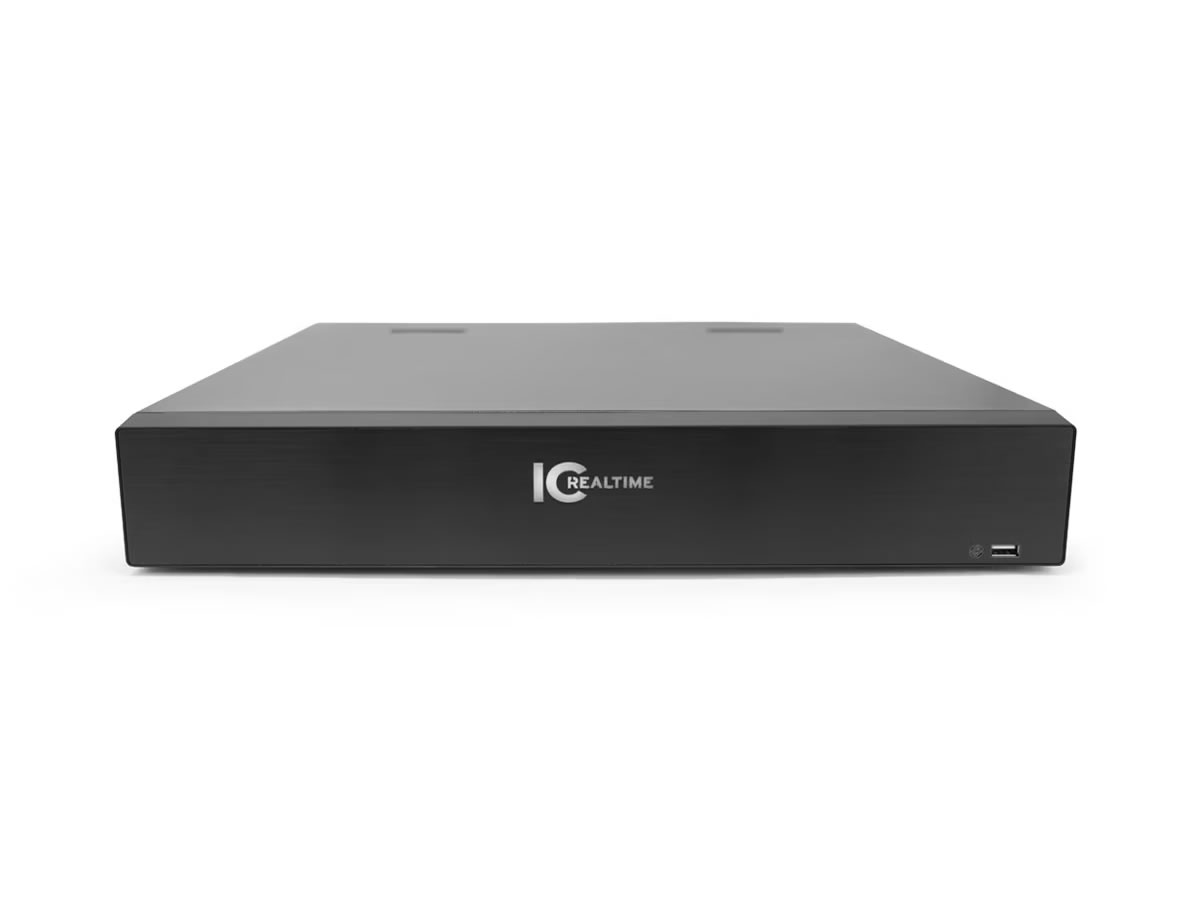

Download Manual The NVR-FX24POE-15U32MP1 is a 24-channel rackmount network video recorder designed to centralize IP surveillance recording and analytics. This compact 1.5U recorder supports resolutions up to 32MP and advanced compression options to preserve image quality while optimizing storage. The unit runs Embedded LINUX ICR 4.0 for reliable 24/7 operation and streamlined management.
The recorder integrates a 24-port IEEE 802.3af/at PoE switch with a 210W total PoE budget and per-port support up to 25.5W. It supports Smart H.265+, H.265, Smart H.264+, H.264 and MJPEG compression to reduce bandwidth and storage consumption. Dual HDMI outputs provide independent video source selection and HDMI supports up to 4K output for monitoring and local display requirements.
On the performance side the NVR delivers up to 384 Mbps aggregate throughput when AI is disabled and supports up to four SATA III drives for a maximum internal capacity of 64 TB. Playback and recording support multiple high resolutions including 32MP, 24MP, 16MP, 12MP and 4K tiers. The recorder also provides configurable pre-record and post-record intervals and per-channel bitrate control for flexible retention planning.

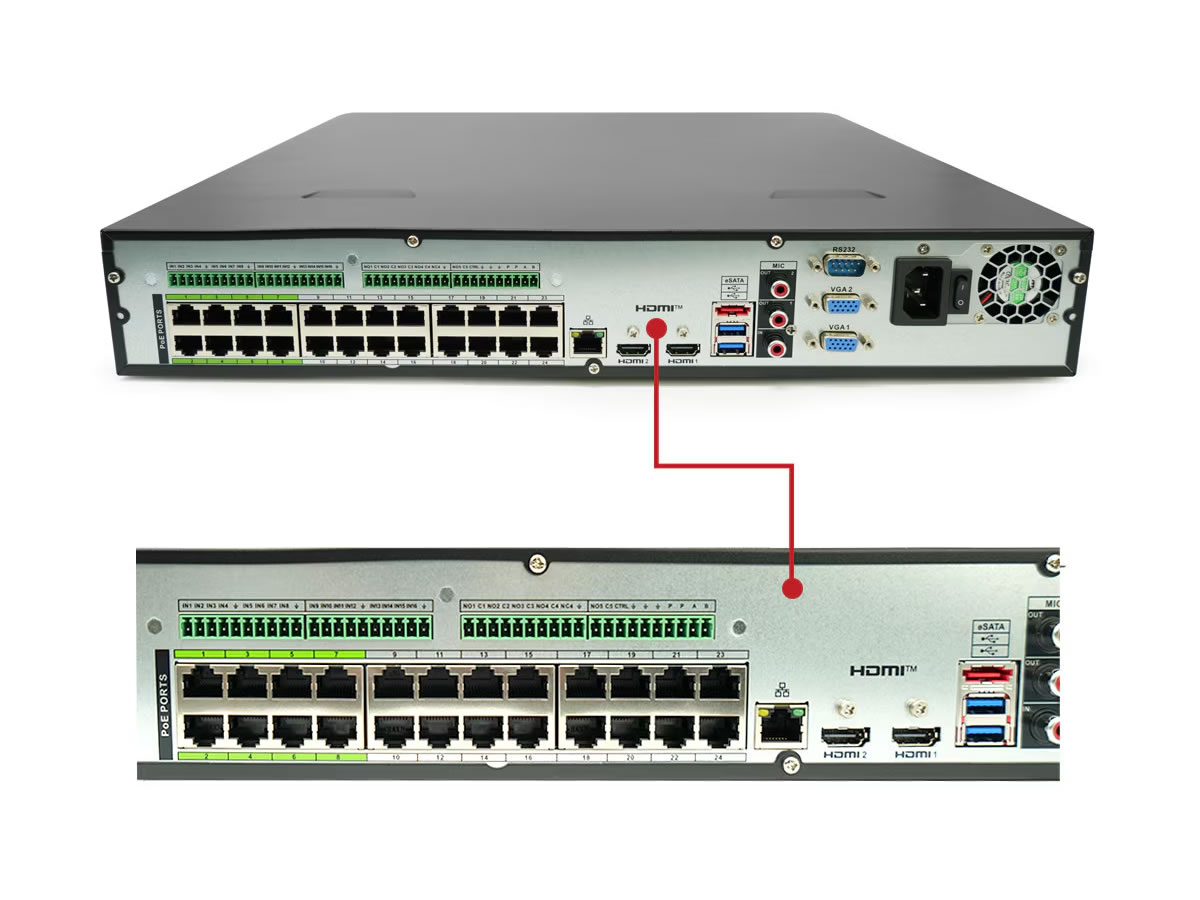

Connectivity includes 24 PoE camera ports, one RJ45 1 Gbps network uplink, one eSATA, three USB ports and analog RCA audio I/O. The unit is ONVIF Profile T/S/G compliant and supports CGI and SDK for third-party integration. Mobile access is available via IC View+ for iOS and Android and desktop management is provided by IC Now.
Typical deployments include retail, commercial buildings and campus environments where consolidated PoE feeds and centralized recording are required. The recorder supports AI by Recorder and AI by Camera features including IVS, face detection and recognition, ANPR, people counting and perimeter protection to enable advanced event detection and forensic search. Bridge Mode enables use with third-party cameras where required.

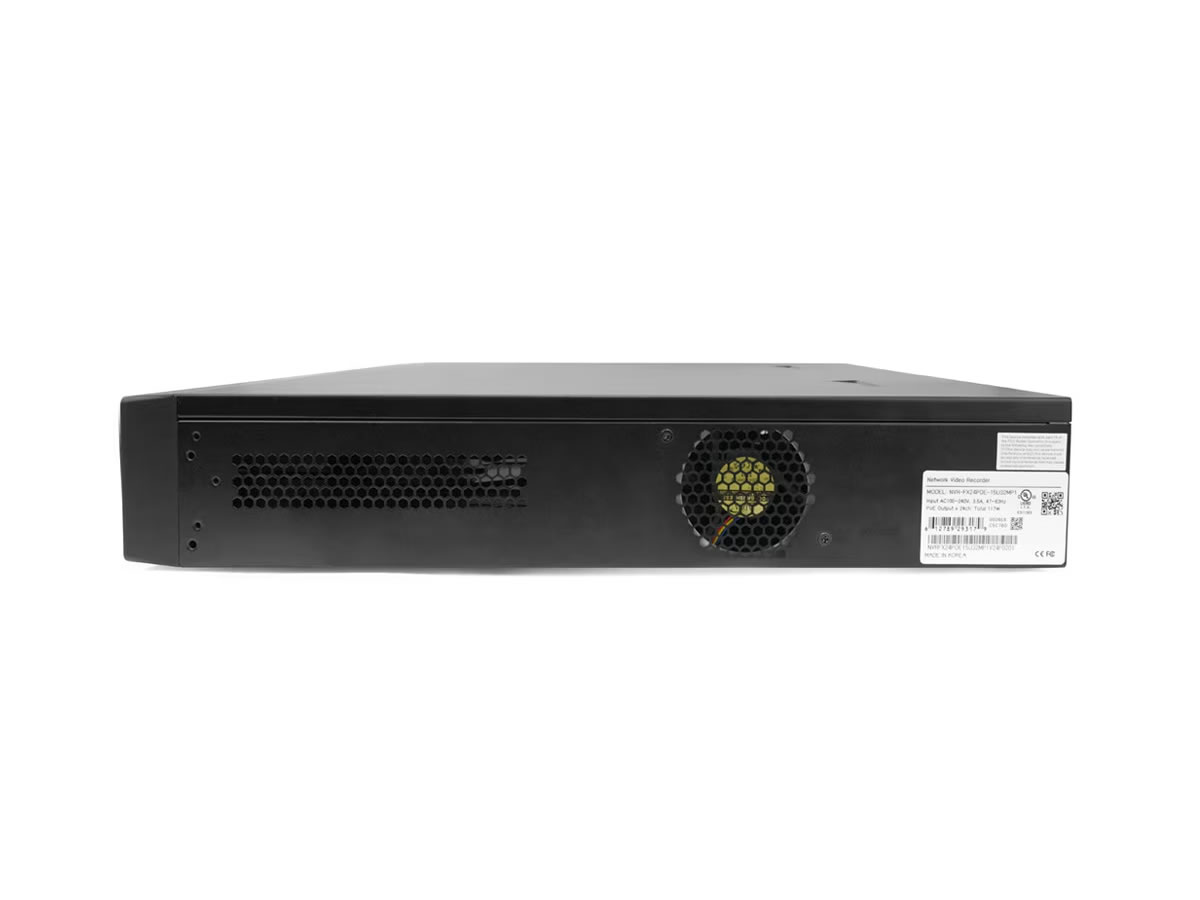

Designed for rack installation the NVR occupies 1.5U and measures 17.32″ × 16.36″ × 2.99″ and runs on AC100V to 240V power. It is manufactured in South Korea, conforms to TAA and is backed by a 10-year warranty and dedicated technical support. The unit is engineered for long-term reliability and straightforward integration into existing surveillance infrastructures.
