| System |
| Main Processor |
Industrial-grade embedded processor |
| Operating System |
Embedded LINUX, ICR 4.0 |
| Display |
| Display Interface |
1 HDMI, 1 VGA |
| Display Resolution |
HDMI: 3840 × 2160; 1920 × 1080; 1280 × 1024; 1280 × 720
VGA: 1920 × 1080; 1280 × 1024; 1280 × 720
|
| OSD |
Camera title, Time, Video loss, Camera lock, Motion detection, Recording |
| Display Split |
Main Screen: 1/4/8/9
Sub Screen: 1/4/8/9 |
| HDMI Decoding |
AI Disabled: 1ch 12MP@30fps; 2ch 8MP@30fps; 3ch 5MP@30fps; 4ch 4MP@30fps; 8ch 1080p@30fps
AI Enabled: 1ch 12MP@30fps; 1ch 8MP@30fps; 2ch 5MP@30fps; 3ch 4MP@30fps; 7ch 1080p@30fps
|
| Display Out Max Decode |
Simultaneous:
HDMI: 3840 × 2160; 1920 × 1080; 1280 × 1024; 1280 × 720
VGA: 1920 × 1080; 1280 × 1024; 1280 × 720
Different Outputs:
HDMI: 1920 × 1080; 1280 × 1024; 1280 × 720
VGA: 1920 × 1080; 1280 × 1024; 1280 × 720
|
| Intelligence |
| IVS |
People Counting, Heat Map, Tripwire & Intrusion (AI by Camera) |
| Advanced Intelligent Functions |
Perimeter Protection (6 Channels; AI by Camera)
Intelligent Motion Detect (4 Channels AI by NVR or 6 Channels AI by Camera)
Face Detection (6 Channels; AI by Camera)
Face Recognition (6 Channels; AI by Camera)
|
| Video |
| Supported Camera Types |
IP |
| IP Camera Input |
8 Channels |
| Playback |
1/4/8 |
| Playback Function |
1. Play / Pause / Stop / Slow / Quick / Backward / By frame
2. Full screen, Backup (video clip/file), Partial zoom in, Audio on/off
|
| Backup Mode |
USB Device, Network |
| Audio |
| Compression |
G.711a; G.711u; PCM; G726 |
| Two-way Talk |
Supported |
| Recording |
| Record Compression |
Smart H.265+; H.265; Smart H.264+; H.264 |
| Record Resolution |
12MP; 8MP; 6MP; 5MP; 4MP; 3MP; 1080p; 960p; 720p; D1; CIF; QCIF |
| Record Mode |
General; Motion Detection; Intelligent; Alarm |
| Incoming Bandwidth |
160 Mbps |
| Throughput |
160 Mbps |
| Storage |
| Internal HDD |
1 SATA III Port, up to 16TB (Starting at 2TB) |
| HDD Mode |
Single |
| Network |
| Ethernet |
1 × RJ-45 (10/100/1000 Mbps) |
| Protocol |
HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; DDNS; FTP; Alarm Server; IP Search; P2P; Auto Register
|
| Web Viewer |
Chrome, IE 9+, Edge, Safari, Firefox |
| Management Software |
IC Now; IC Now Pro |
| Smart Phone |
Android; iOS; iPhone (IC View+) |
| PoE |
8 Ports (10/100 Mbps, IEEE 802.3af/at), Bridge Mode |

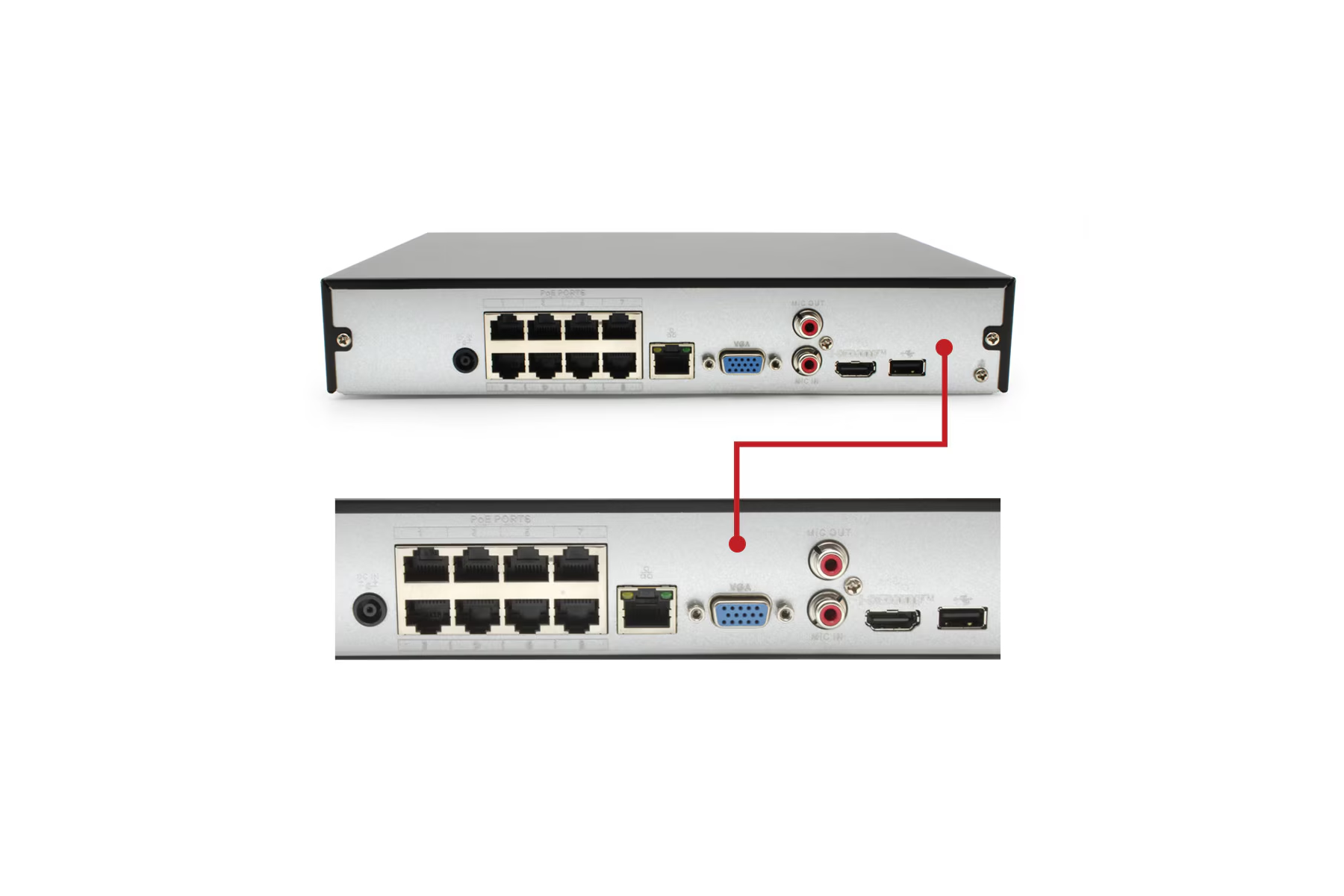

| Interface |
| RS232 |
N/A |
| RS485 |
N/A |
| USB |
2 (1 × Front USB2.0; 1 × Back USB2.0) |
| Audio I/O |
1 Channel Input; 1 Channel Output (RCA); Two-way Talk Supported |
| Electrical |
| Power Supply |
53 VDC, 1.81 A |
| Power Consumption |
≤ 10W (Idling, without HDD) |
| Total PoE Budget |
Total PoE Output: 72W
Max per Port: 25.5W |
| Environmental |
| Storage Conditions |
–4°F to +140°F (–20°C to +60°C) |
| Construction |
| Installation |
Rack or Desktop Mount |
| Dimensions |
1U, 10.24" × 9.15" × 1.98"
(260 mm × 232.5 mm × 50.3 mm)
|
