Description

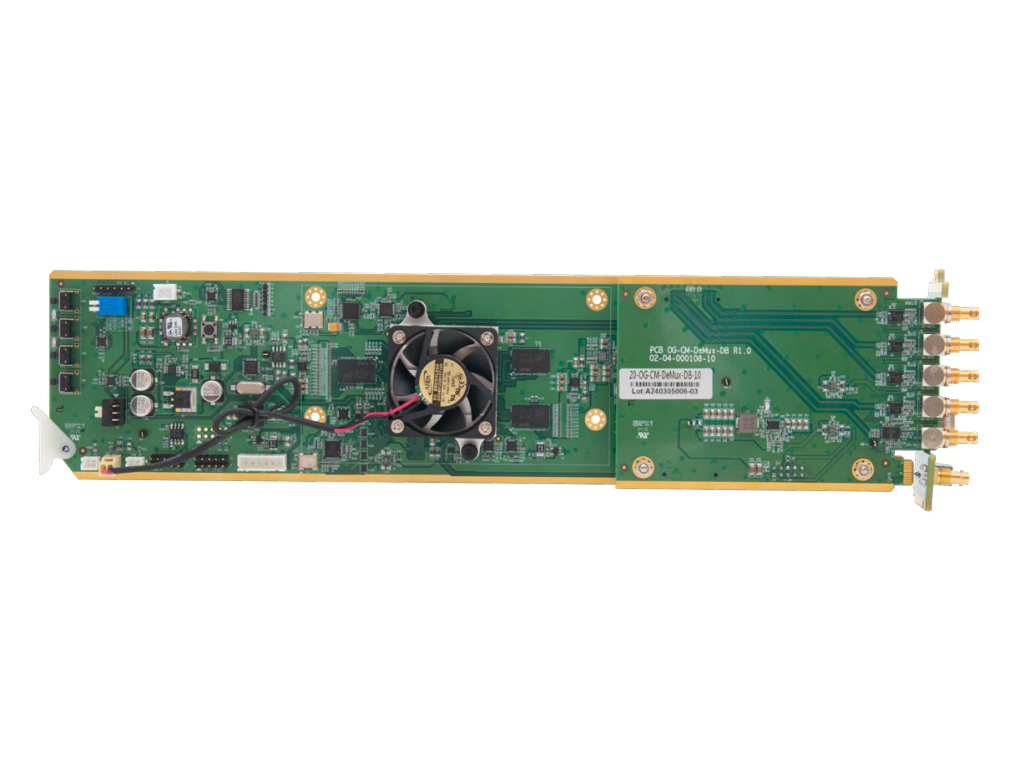

OG-12G-Demux-3G-II-MB
12G SDI demux to 4 x 3G SDI (2SI and SQD) with a down converted 3G SDI output. Occupies 2 slots in the openGear frame. Passes HDR metadata
Features
- OGX/3.0 card-based form factor
- Dashboard control enabled
- Supports 1 x 12G SDI video input up to 4096×2160 or 1 x 3G SDI video input*
- Supports 4 x 3G output (quad link) in 2SI and SQD
- Can work also as a 12G SDI to 3G SDI down converter
- Analog audio output
- Passes HDR from input to output
- Optional 12G SDI fiber input via SFP
- Low power consumption – less than 20

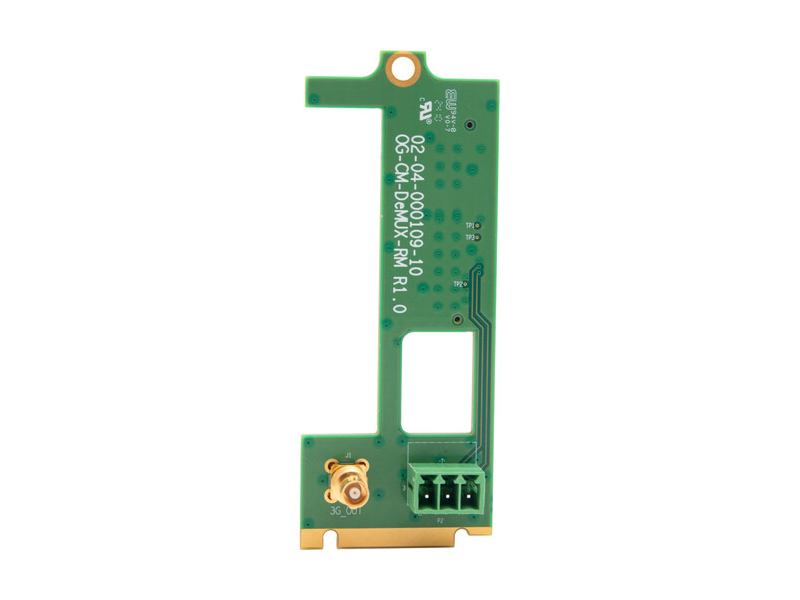

OG-12G-Demux-3G-II-RM
OpenGear Rear Module for OG-12G-Demux-3G-MB. Occupies 2 slots in the openGear frame.
Features
- For Use with OG-12G-Demux-3G-MB
- Occupies 2 Slots
- 1x 12G SDI input
- 4 x 3G output (quad link 2SI/SQD)
- 1 x 3G output (down converted)
- 1x multi-pin audio output
- Optional Fiber

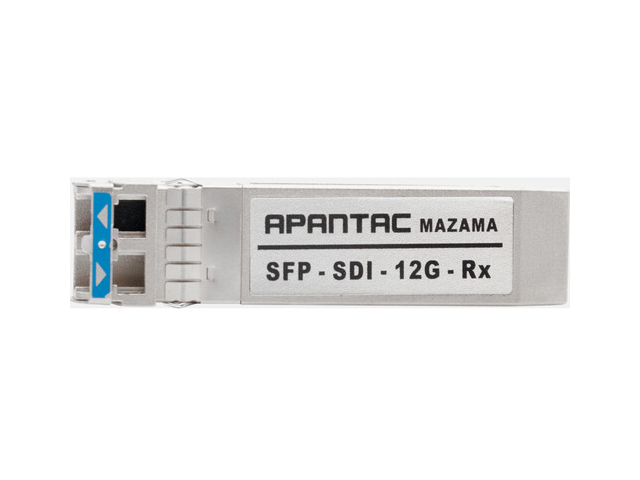

SFP-SDI-12G-Rx
Apantac 12G SDI SFP Receiver
