Description
OpenGear One to four Reclocking SDI Distribution Amplifier. Occupied 2 slots in the openGear frame. SMPTE 2082, SMPTE 424M, SMPTE 292M, SMPTE 344M, and SMPTE 259M compliant. Data rates: 125 Mbps to 12 Gbps. Equalizes up to 70 meters at 12G, 100 meters at 6G, 140 meters at 3 Gbps, Supports DVB-ASI at 270 Mbps for output 1 and 3

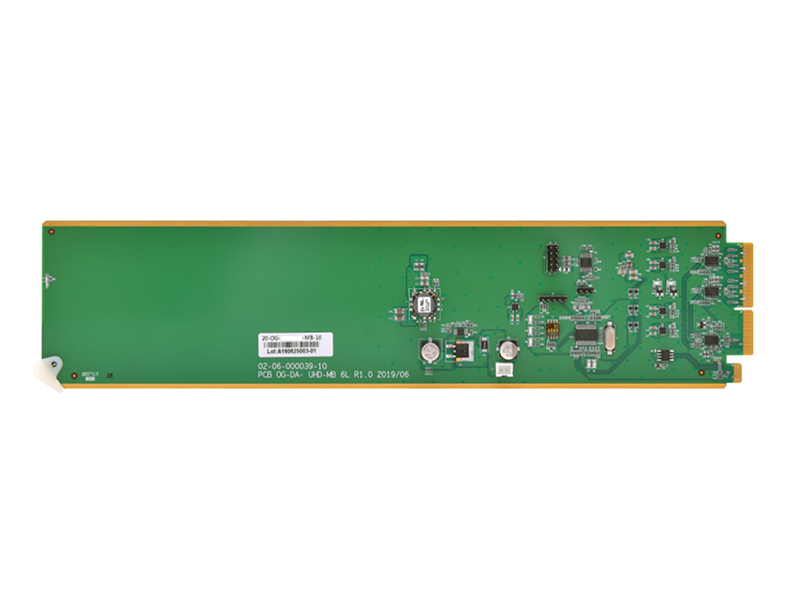

OG-DA-4UHD-MB
Features
- openGear 3.0 card-based form factor
- Dashboard control enabled
- 1 x 4 12G/6G/3G/HD/SD-SDI reclocking SDI distribution amplifier
- 4 reclocked outputs
- Supports ASI on outputs 1 and 3
- Cable Reach – 12G (70m), 6G (100m), 3G (140m)
- Auto detect 12G/6G/3G/HD/SD-SDI

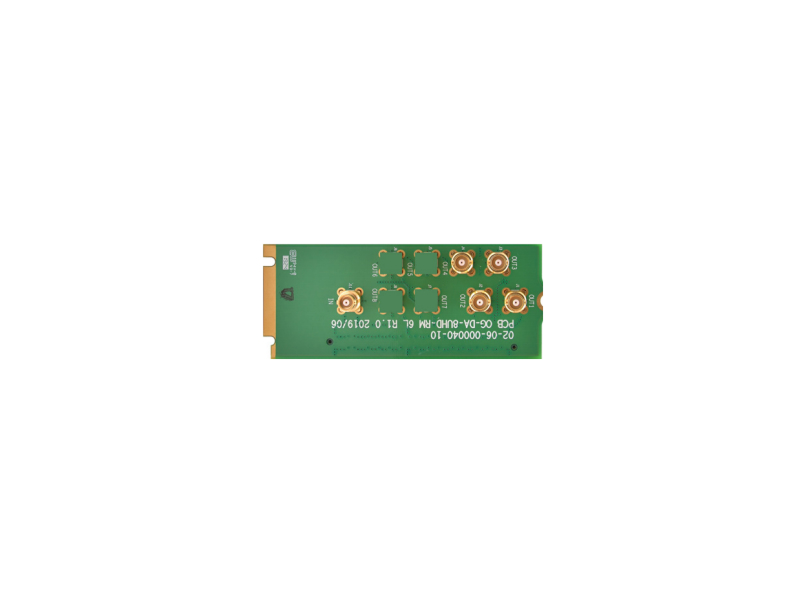

OG-DA-4UHD-RM
Rear Module (2 slots)
- 1 x SDI input
- 4 x SDI output
