Description
Download Manual OG-DA-HDTV-SDI-UHD-MB

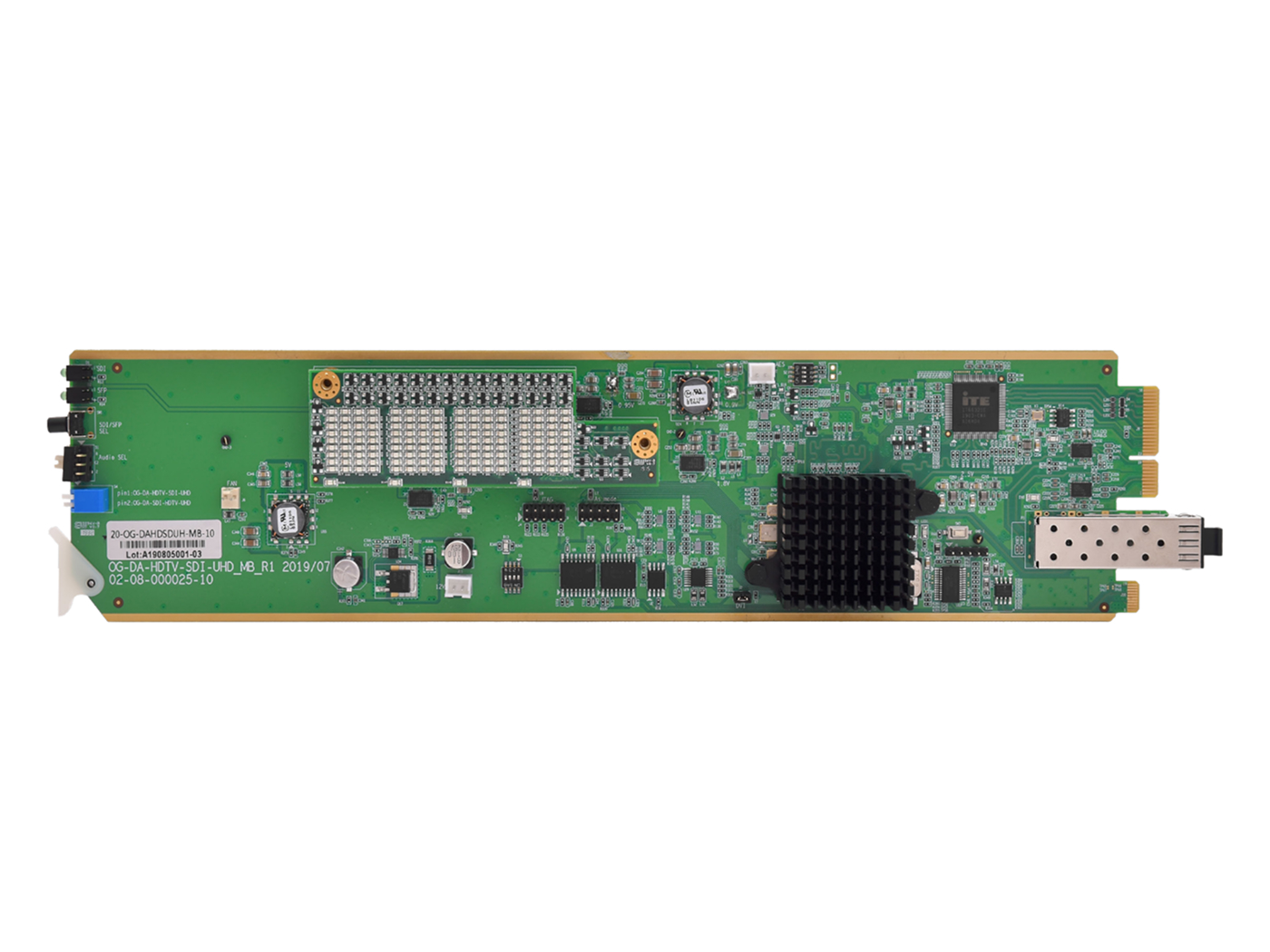

HDMI 2.0 to SDI converter. Active HDMI output (HDMI loop out) . 12G SDI output. Supports 8 channels of embedded HDMI audio. Minimum processing delay (no scaler, no frame rate / resolution conversion). Supports audio monitoring output in analog and AES audio. MSA SFP supports 12G over fiber. Passes HDR metadata
Features
- OGX/3.0 card-based form factor
- Dashboard control enabled
- HDR metadata pass through
- Supports HDMI 2.0 video input and loop out
- Supports up to 4096×2160 @ 4:4:4, YCbCr 4:4:4, 4:2:2 and 4:2:0 input
- Outputs up to 12G SDI @4:2:2
- Optional 12G SDI fiber output via SFP
- Status LEDs
- Stereo AES and AA audio monitoring outputs
- Low power consumption – less than 12W

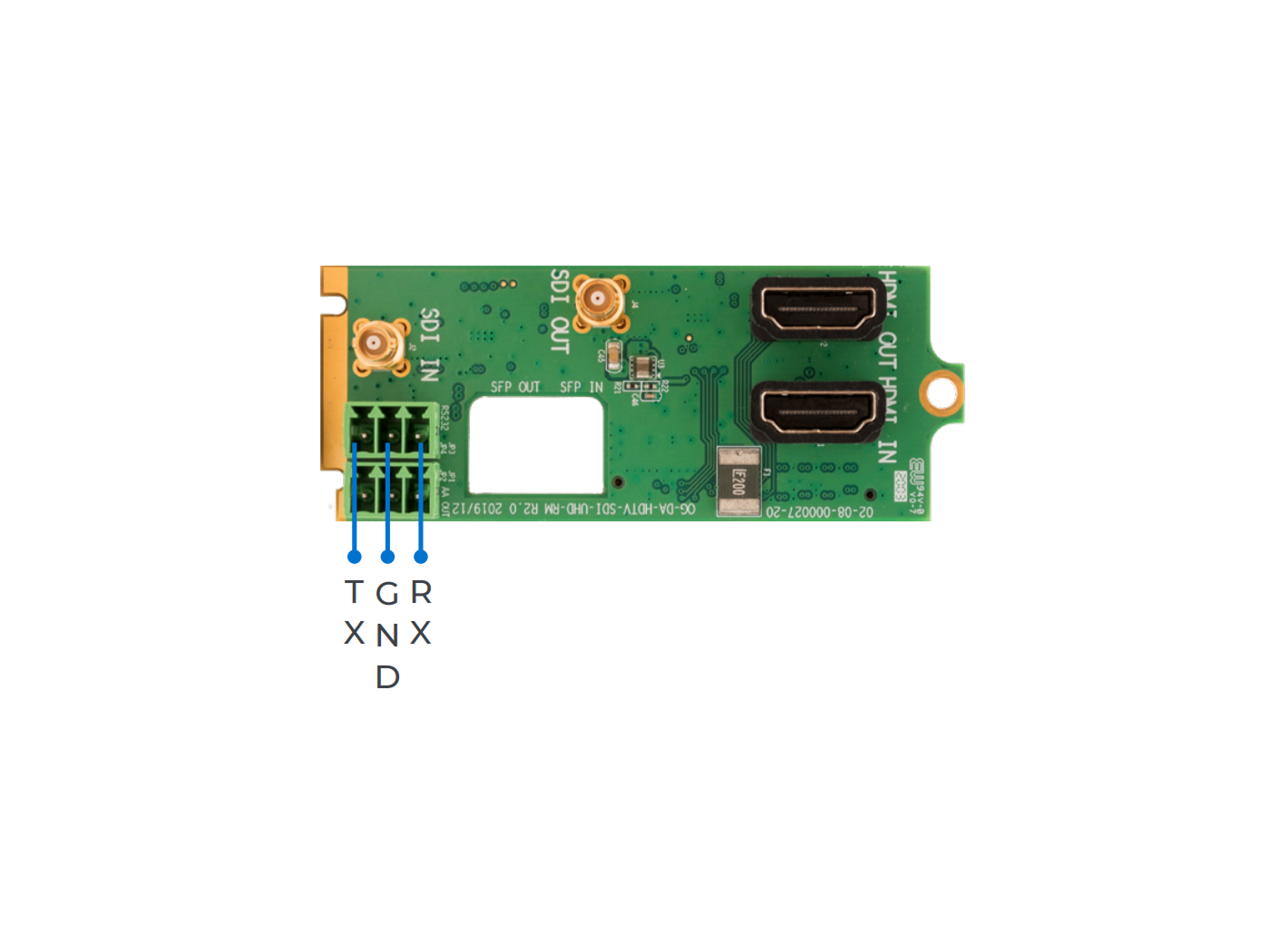

OG-DA-HDTV-SDI-UHD-RM
OpenGear Rear Module for OG-DA-HDTV-SDI-UHD-MB. Occupies 2 slots in the openGear frame. 1 x HDMI input, 1 x HDMI loop out, 2 x SDI output BNC, 1 x SFP cage, 1 x Stereo Analog Audio Monitoring output.
- 1x HDMI input
- 1x HDMI loop out
- 1x SDI output
- 1x optional SFP Fiber output

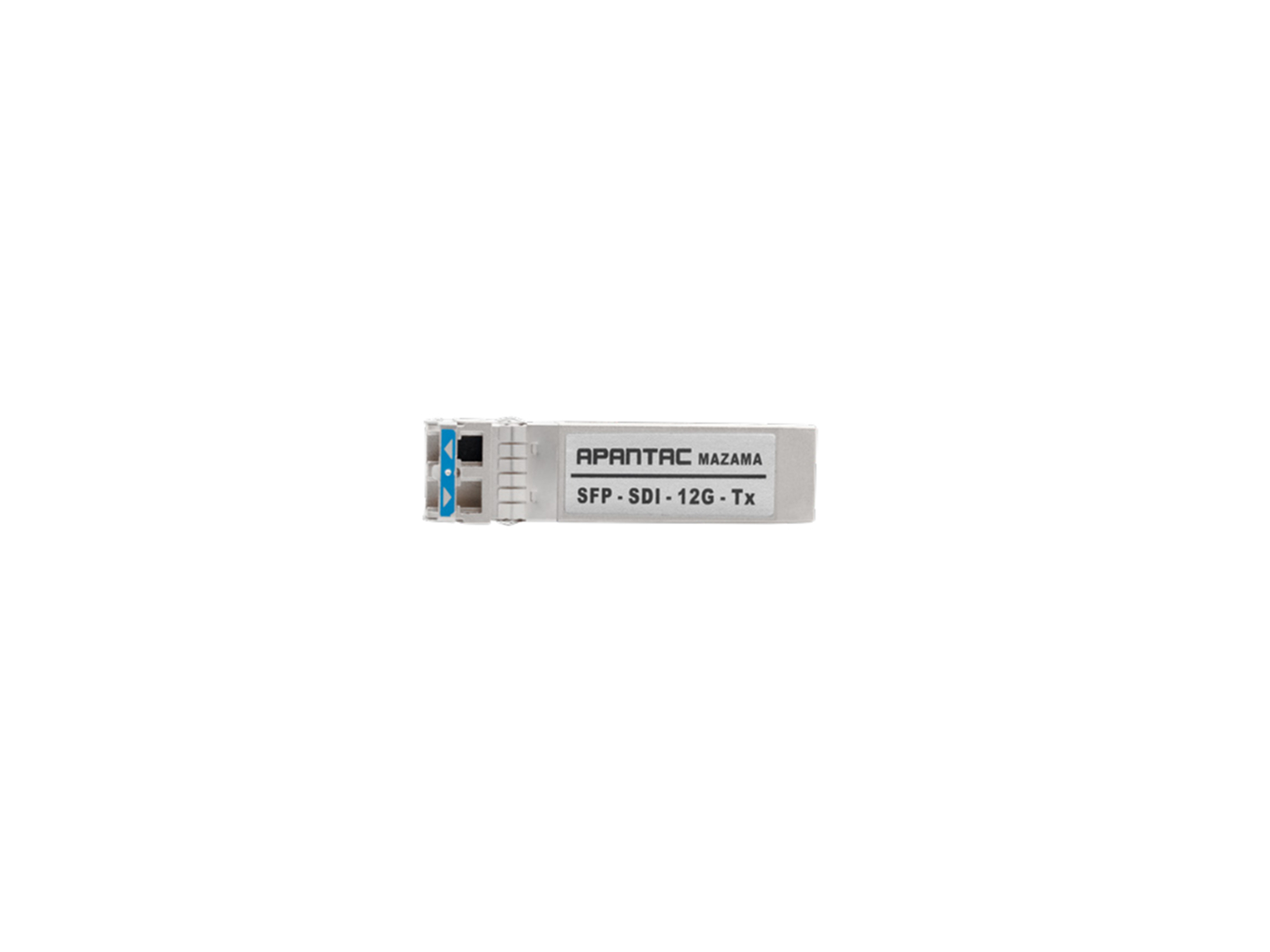

SFP-SDI-12G-Tx
- 12G SMPTE Fiber transmitterS SFP
- Single Mode LC connector
- Maximum distance 10 Km
