Description
Download Manual OG-DA-SDI-DE 12G MB

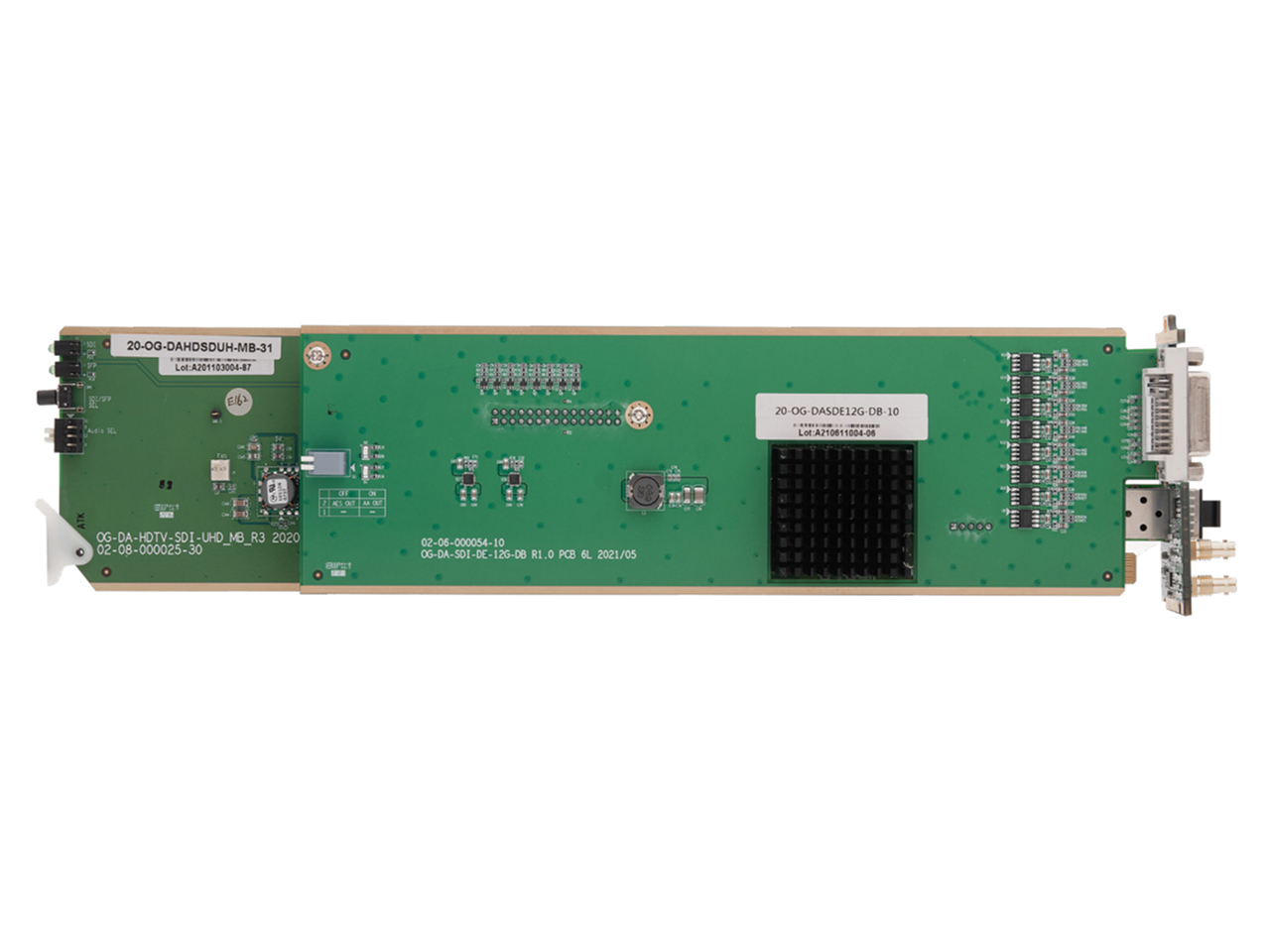

OpenGear 12G SDI De-embedder. Auto detects 12G SDI/3G SDI/ HD SDI (720p, 1080i). Dsub 25 Output with 8 AES and 16 Analogue Audio signals (Unbalanced). Order breakout cables separately. One rotary switch allows selecting one of the 8 embedded AES pairs and send it to the AES outputs.
Features
- OGX/3.0 card-based form factor
- Dashboard control enabled
- Supports up to 3840x2160p I/O
- Supports up to 12G SDI video input and loop out
- Converts SDI to HDMI for monitoring output
- De-embeds 12G/3G/HD-SDI with 16 channels of audio’
- Outputs 8 AES pairs or 16 mono analog audio
- Optional 12G SDI fiber input via SFP
- Low power consumption – less than 12W

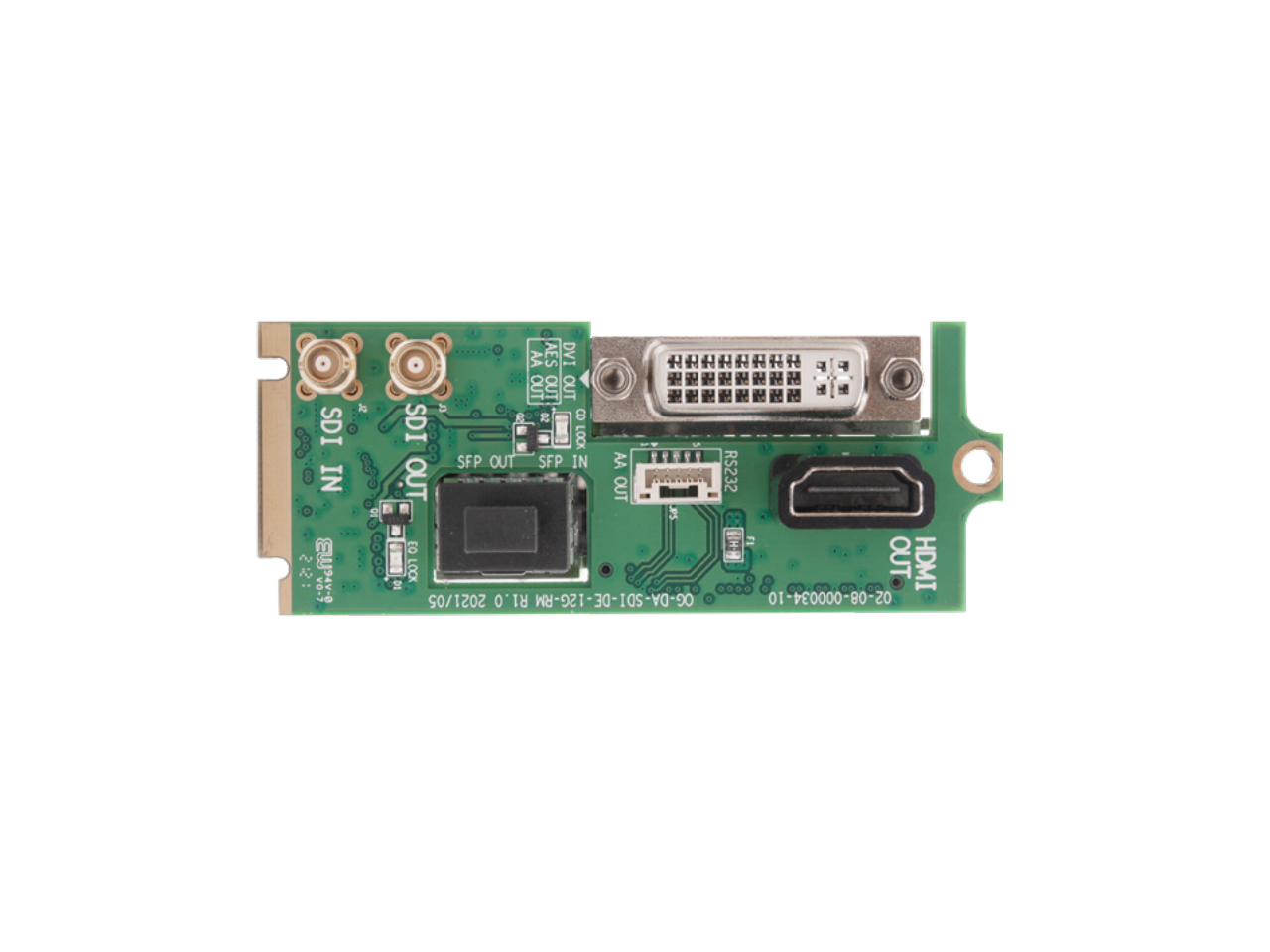

OG-DA-SDI-DE 12G RM
OpenGear 12G SDI De-embedder with 1 x 2 12 G SDI Distribution Amplifier (with reclocking). Auto detects 12G SDI/3G SDI/ HD SDI (720p, 1080i). Dsub 25 Output with 8 AES and 16 Analogue Audio signals (Unbalanced). Order breakout cables separately. One rotary switch allows selecting one of the 8 embedded AES pairs and send it to the AES outputs.
- 1x SDI input
- 1 x SDI loopout
- 1 x HDMI output
- 1x multi-pin audio output
- Optional Fiber

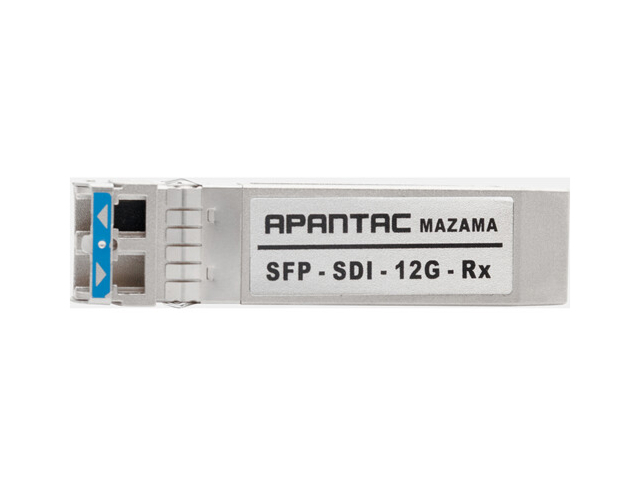

SFP-SDI-12G-Rx
