Description

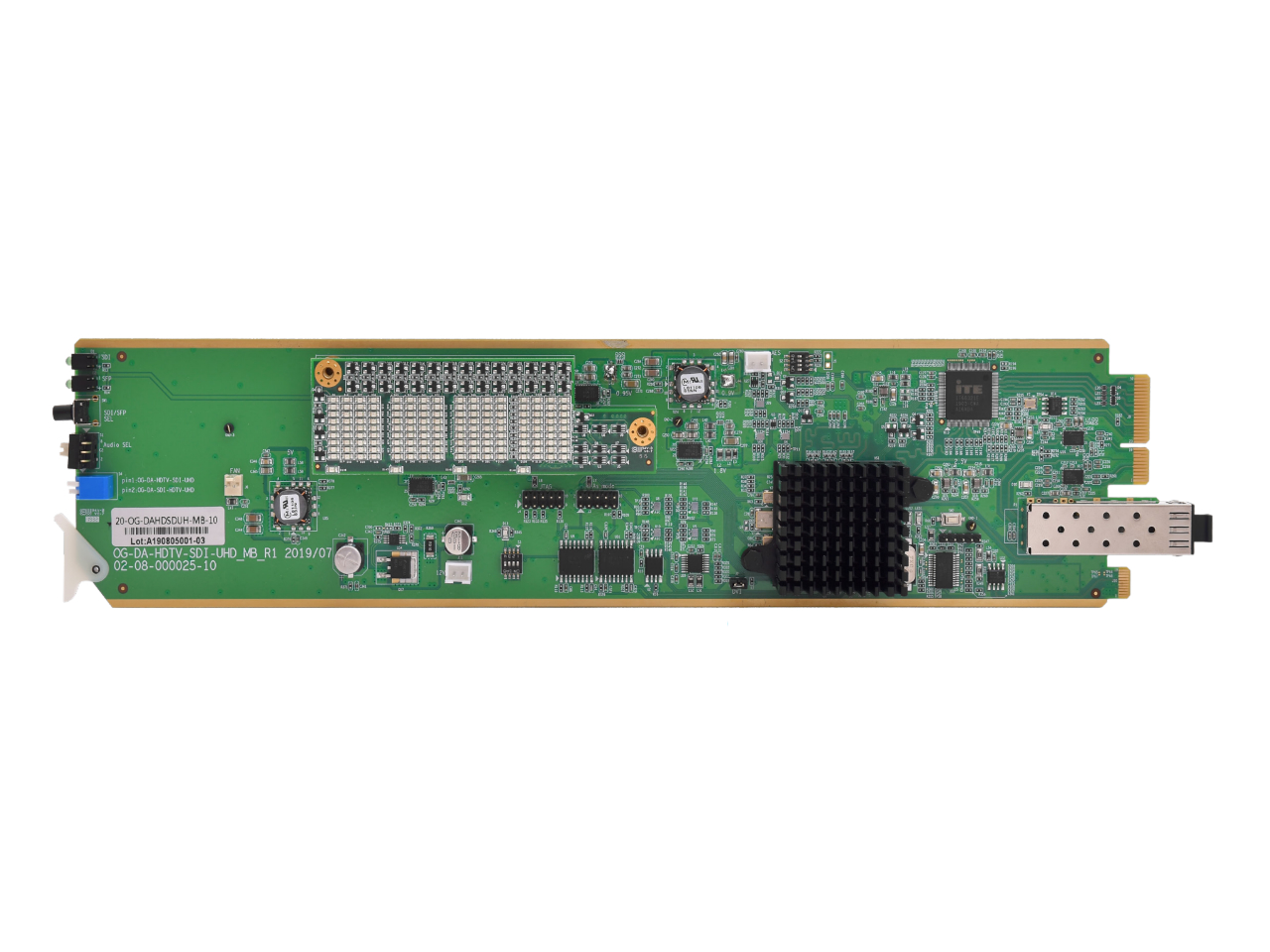

OG-DA-SDI-HDTV-UHD-MB
12G SDI to HDMI 2.0 converter. Supports up to 4096×2160. Reclocked 12G SDI loop out. HDMI 2.0 output. Supports audio monitoring output in analog and AES. LED audio meters for 4 groups of SDI embedded audio. Selectable non-MSA SFP input slot to support 12G SDI over fiber. Passes HDR metadata
Features
- OGX/3.0 card-based form factor
- Dashboard control enabled
- HDR metadata pass through
- Supports up to 12G SDI (4:2:2) video input and loop out
- Output up to HDMI 2.0 UHD@60Hz (4:2:2)
- Passes HDR metadata
- Rec 709/2020 output follows input
- Optional 12G SDI fiber input via SFP
- Stereo AA audio monitoring outputs
- On Screen Display of ATC, Closed Caption (608, 708), OP47
- Low power consumption – less than 12W

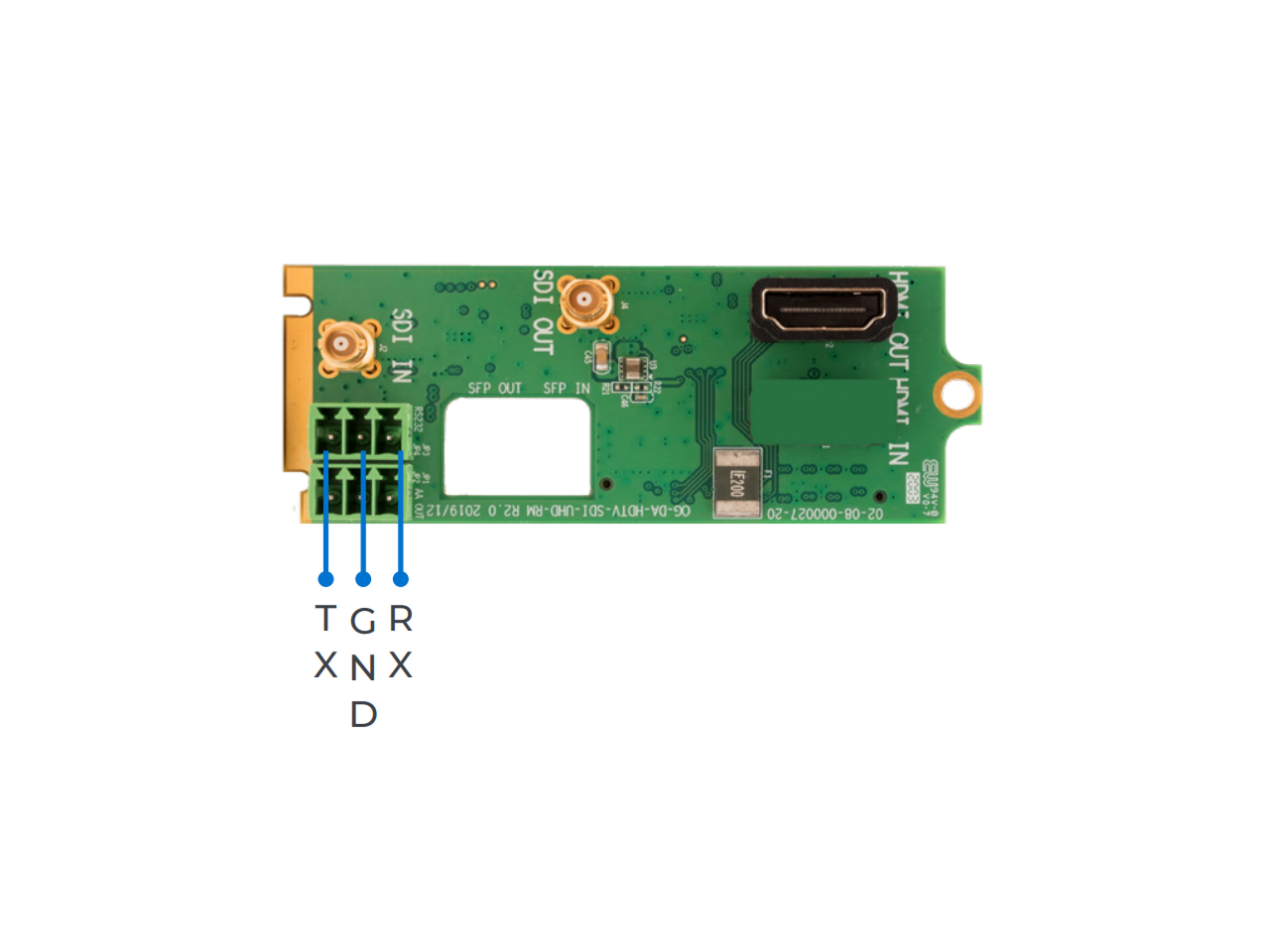

OG-DA-SDI-HDTV-UHD-RM
OpenGear Rear Module for the OG-DA-SDI-HDTV-UHD-MB. Occupies 2 slots in the openGear frame. 1 x SDI input, 1 x SFP slot input, 1 x SDI loop out, 1 x HDMI output, 1 x Stereo Analog Audio Monitoring output.
- 1x SDI input
- 1 x SDI loopout
- 1x HDMI output
- Optional Fiber
- 1x RS-232
- 1 x Analog Audio output

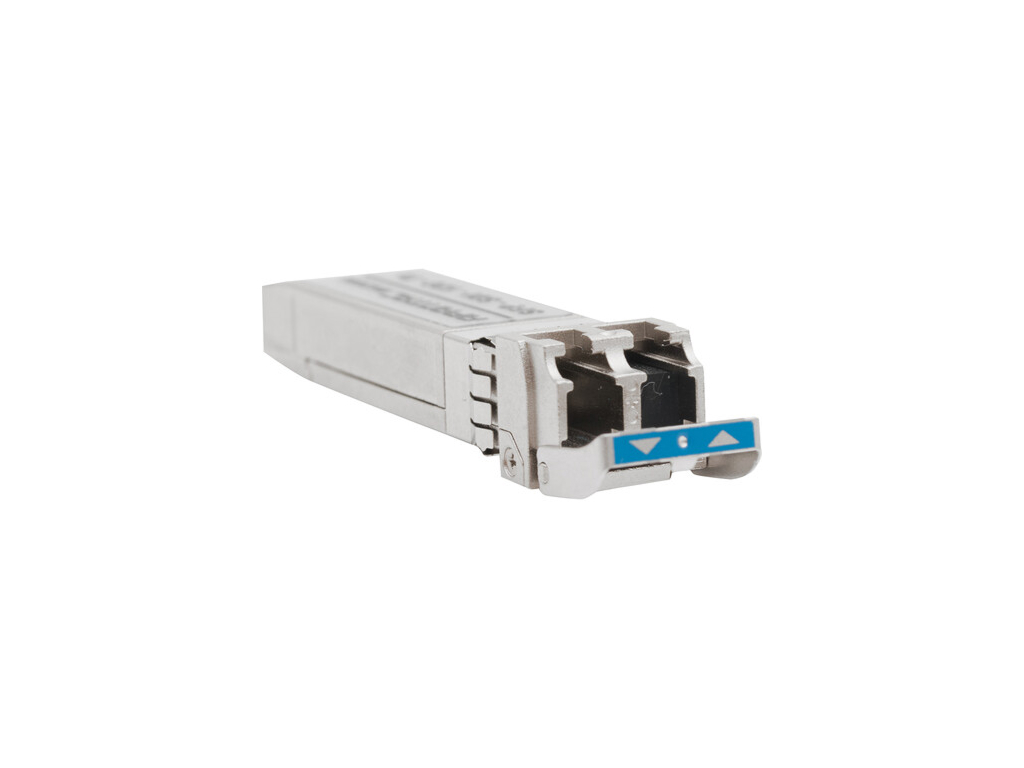

SFP-SDI-12G-Tr
This 12G SDI SFP transceiver by Apantac is for a single mode fiber with an LC connector. This transceiver is non-MSA SFP. With a distance up to 6.2 miles, your next networking install will be flexible and easy
