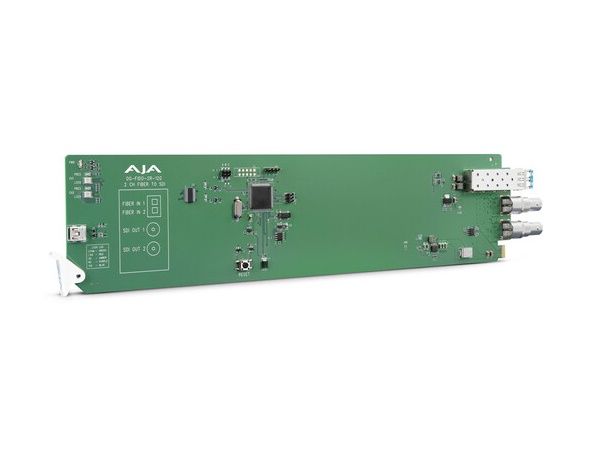

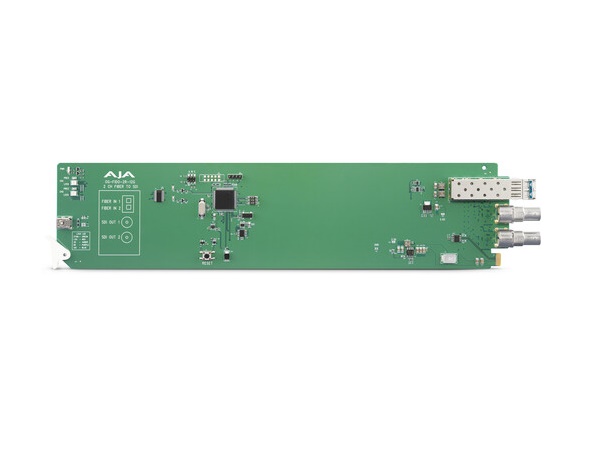

Download Manual The OG-FiDO-2R-12G is a state of the art, openGear compatible, 2-channel Fiber to 12G-SDI converter, enabling 12G-SDI signals to be extended up to 10 km (32,808 ft) over standard single mode fiber optic cable. The two fiber inputs are completely independent allowing different 12G-SDI rates to be carried on each channel.
AJA openGear OG-FiDO products are designed for use in high density openGear 2RU frames including AJA’s OG-X-FR frame, with industry standard DashBoard software support on Windows®, macOS® and Linux®, offering remote control and monitoring over a PC or local network.
Features:
- Video Formats: 270 Mbps – 12 Gbps, format agnostic
- Inputs: 2x Independent Single-Mode LC Fiber Connectors
- Outputs: 2x Independent 12G-SDI, BNC connectors
- Support for HDR – High Dynamic Range video
- Input Present and Input SMPTE Lock LEDs
- Automatic detection and reclocking
- 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.967 Gbps, 2.970 Gbps, 5.934 Gbps, 5.940 Gbps, 11.868 Gbps, 11.880 Gbps – Auto Select
- Nominal Wavelength; Rx :1260-1620 nm
- Hot-swappable
- Remote Ethernet Monitor through Ross DashBoard software
- Appropriate Fiber SFP included
- Rear I/O card included
- Two slots required for each card
- Power: 3 watts Max
- Compatible with OG-X-FR, OG-3-FR, and DFR-8321 openGear frames
- Five year warranty
