Description

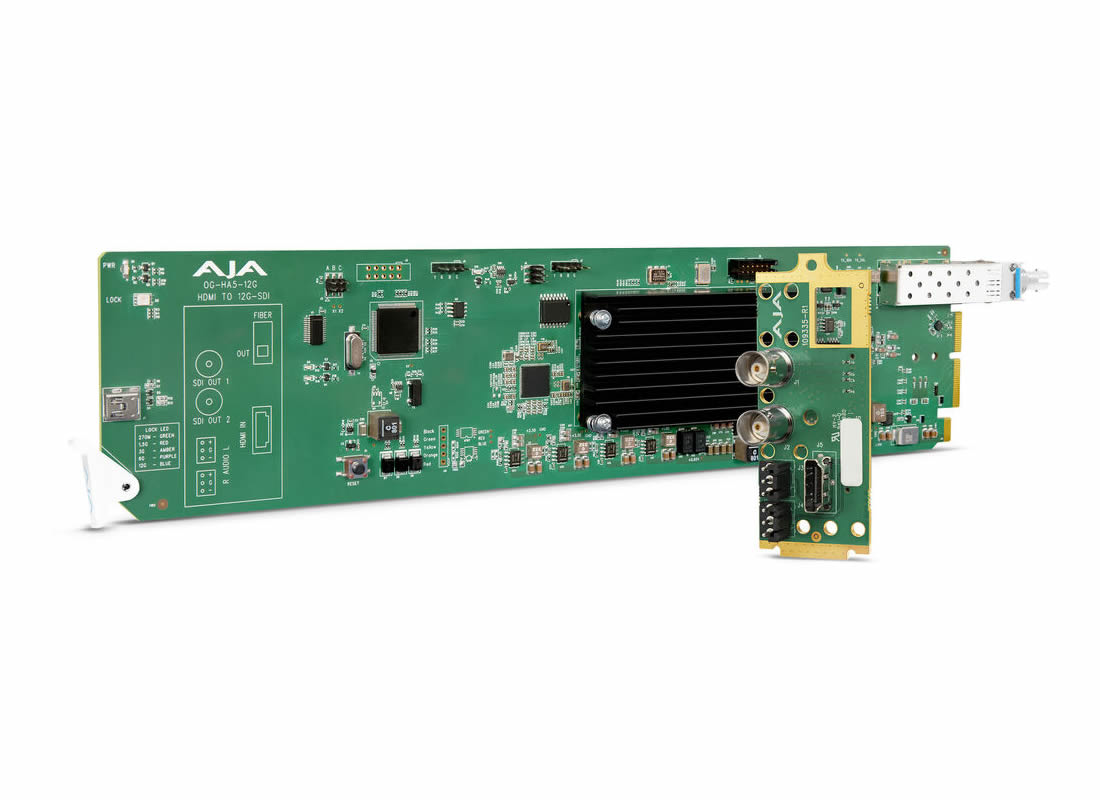

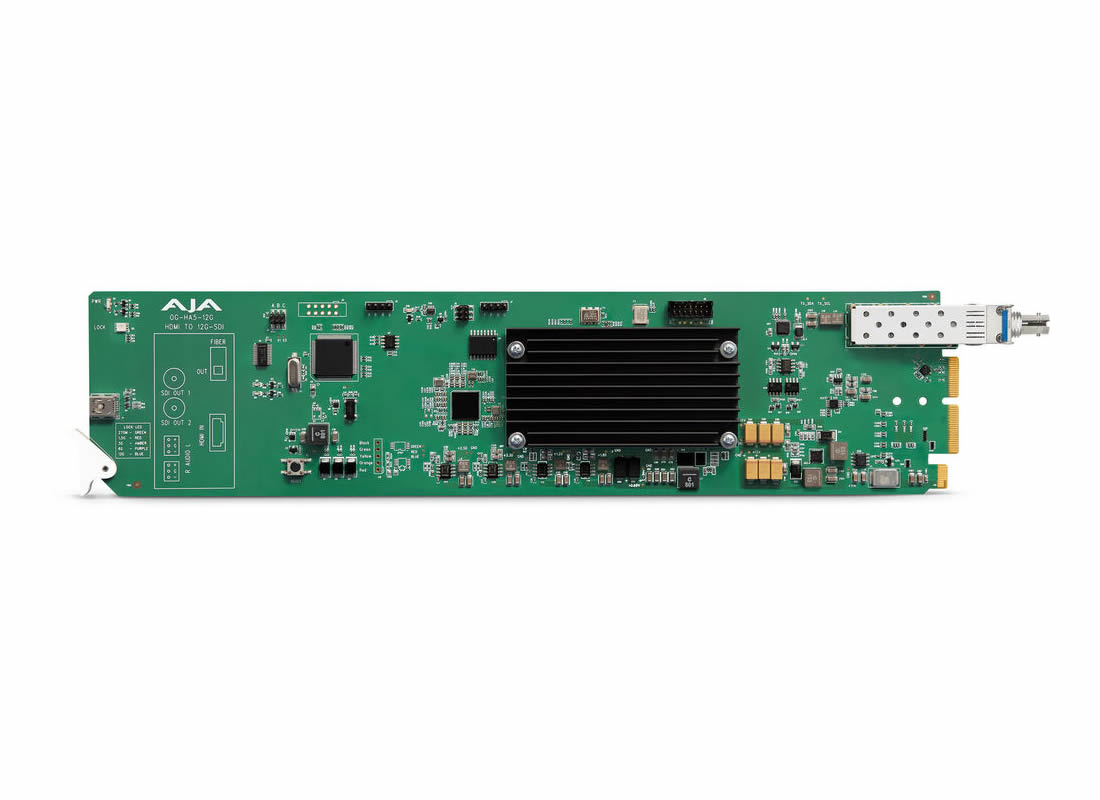

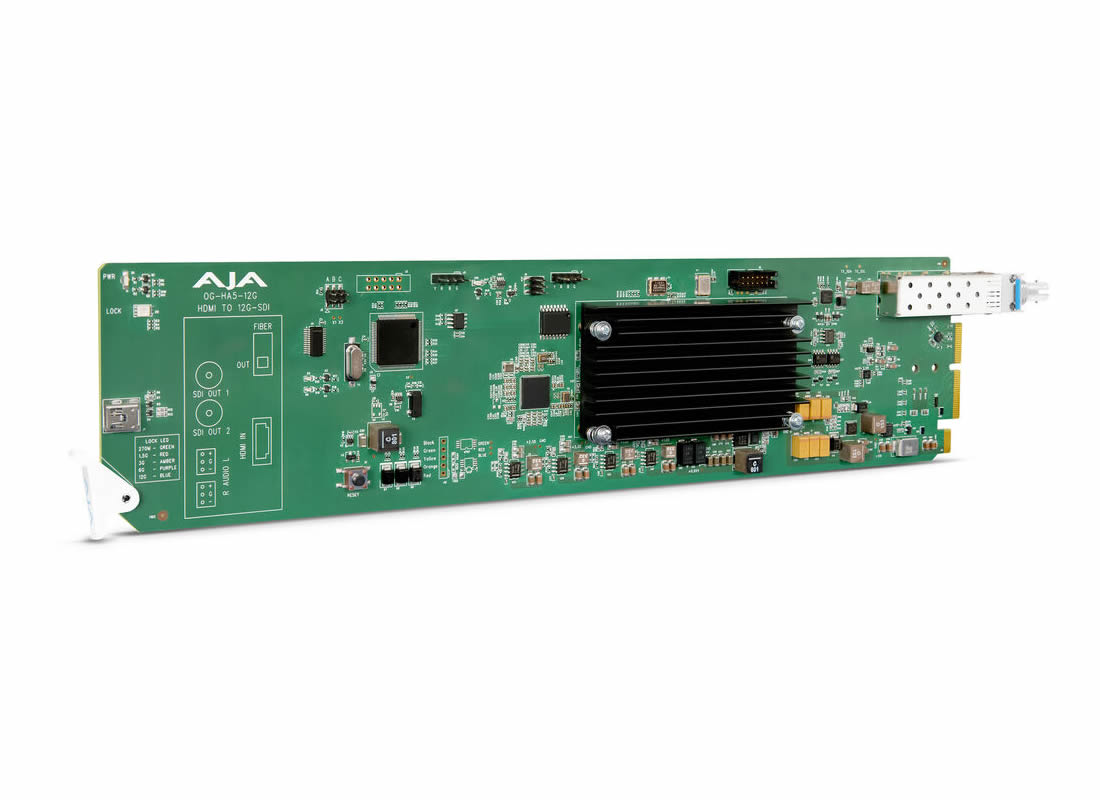

Monitor your HDR camera feed on a 4K monitor when using an openGear frame with this OG-HA5-12G-T-ST OpenGear 4K HDMI 2.0 to 12G-SDI Converter Card with Fiber ST from AJA. This card installs into an openGear frame and provides video input via HDMI 2.0 source and outputs via ST fiber transmitter or 12G-SDI for viewing on a 4K monitor.
Download Manual The card also features a second 12G-SDI mirrored output for local monitoring or for viewing on other monitors. Other features include EDID LFR and HFR emulation, HDR10 support, HFR support, and 12-bit workflows. The card can be managed and controlled using the Ross DashBoard software.
Key Features
- Convert HDMI 2.0 to 4K/UHD 60 fps to 12G-SDI with a second mirrored output
- Supports up to 60p input at 4:4:4/4:2:2/4:2:0
- Supports 12-bit workflows
- EDID LFR & HFR emulation up to UHD 60p
- Real-time HDMI HDR Infoframe data reporting
- HDR signaling metadata pass-through and optional override
- Simple Frame Rate Conversion (FRC) between Fractional and Integer rates
- Embedded audio can be selected from the HDMI or analog audio inputs
- Embedded audio pass-through of AC-3 (Dolby Digital) and E-AC-3 (Dolby Digital Plus) compressed audio, including DD+ Atmos (aka DD+ JOC)
- Monitor and control via Ross DashBoard software
- 14W max per card
- Ships with a Fiber ST single-channel SFP transmitter for extending 4K signals over long distances
4K and UHD
Typical 4K signals use a resolution of 4096 x 2160 pixels while UHD signals measure 3840 x 2160. This difference can prevent some monitors from being used either in full 4K workflows or in UHD workflows. The OG-HA5-12G can compensate for these resolution differences, allowing UHD monitors to be used in 4K productions and vice versa. The OG-HA5-12G also supports High Frame Rate (HFR) inputs. 4K/UHD signals at 50 or 60 fps can be fed into HA5-12G and output at up to 60p for viewing with appropriate HDMI 2.0 capable displays.
Full HDMI Support
The equalized input on OG-HA5-12G is engineered to support HDMI runs up to 98′ in length using 24-gauge cable. Embedded HDMI audio support allows for a single cable solution to avoid unnecessary clutter and simplify installation.
12G-SDI Support
The 12G-SDI outputs on OG-HA5-12G allow extremely high-quality signal representation for use with large raster and deep color workflows where image quality is critical.
Pristine Image Quality
A 12G-SDI output with PLL clock filtering ensures a low jitter output for solid image stability. An LED indicator shows the input source as either SD (green), HD (red) or 4K/UHD (orange) for fast and easy signal identification.
openGear Compatibility
The openGear standard ensures that AJA cards will be compatible with other openGear products from certified openGear partners. With a growing list of products, openGear is the future of rackframe products.
Flexible I/O
The modular rear panel allows custom I/O connections per card.
Failsafe
The optional redundant power supply provides a secondary power source in the event of a primary power failure.
Ethernet Access
A standard Ethernet connection allows the frame to be accessed via the Ross Dashboard application for overall frame communication. Optional per-card Ethernet access can be installed in the frame for advanced communication with compatible openGear cards.
