Description
OG-HDM2.0-FIB-II-Tx-MB

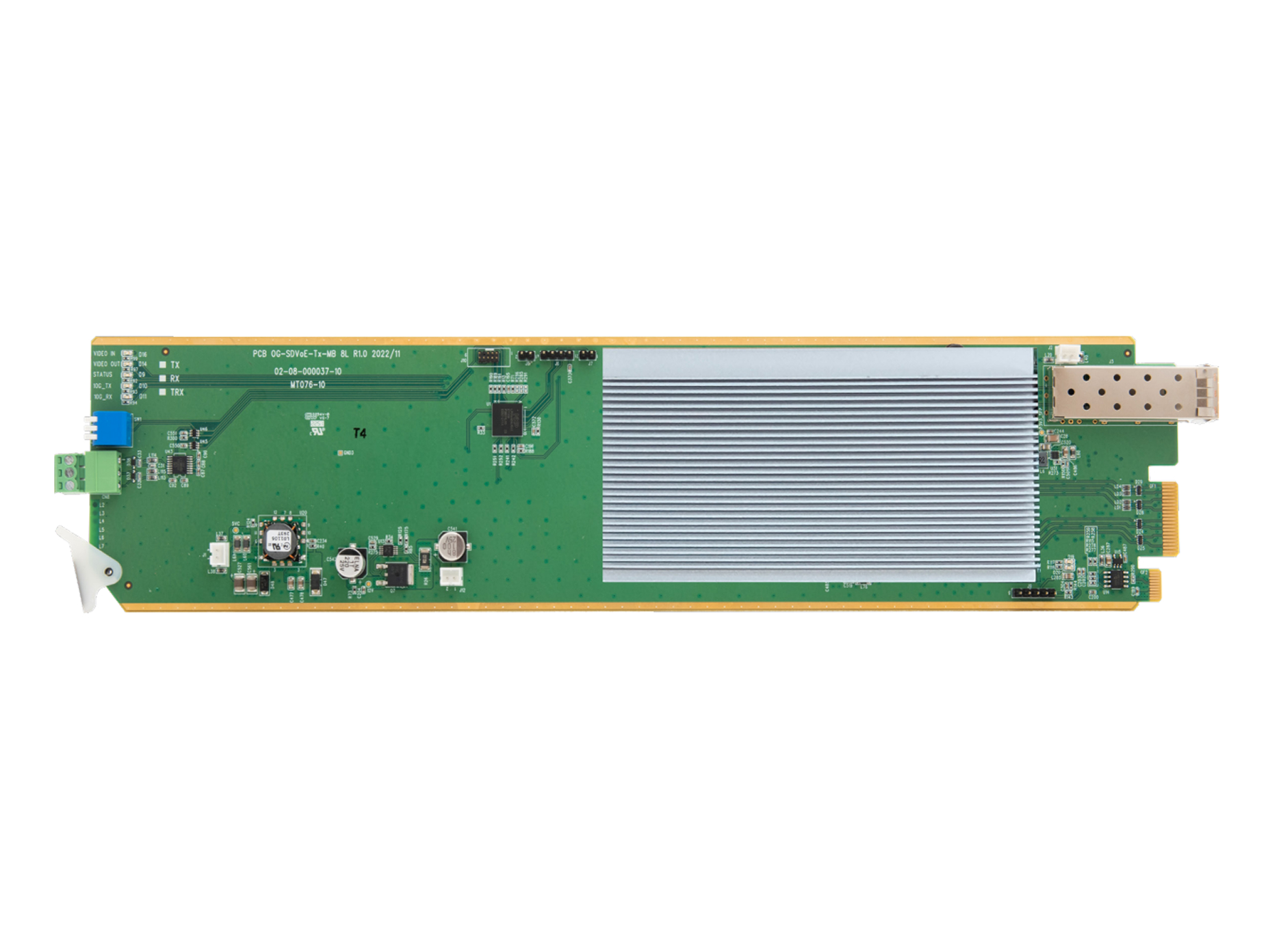

OpenGear Dual SDVoE HDMI 2.0 UHD AV over IP transmitter.
Features
- openGear OGX card-based form factor
- High density design – can fit up 20 boards in an OGX frame with high density rear module
- Dashboard control enabled
- Compatible with Apantac Receivers HDM2.0-FIB-II-R, HDM2.0-FIB-II-R-Pro, SDM-FIB-R, SDM-FIB-R-Pro
- Supports up to 20km with single mode fiber, 300m on multi-mode fiber or 80m on CAT6
- Supports HDMI 2.0, HDCP 2.2/1.4
- Supports all HDMI 2.0 formats including multi-channel PCM, Dolby True-HD and DTS-HD master audio
- Supports Dolby Vision up to 4K60 in genlock mode. Does not support Dolby Vision in Scaling Mode
- Supports UHD RGB 4:4:4 8 bit, 4:2:0 10 bit and 12 bit HDR
- Supports all resolutions up to 594 MHz
- Supports CEC pass-through
- Supports RS-232 transfer
- Programmable to scale up or down any resolution between VGA and 4K
- Low power consumption
- SFP-10G-Tx-RJ45
OG-HDM2.0-FIB-II-Tx-RM

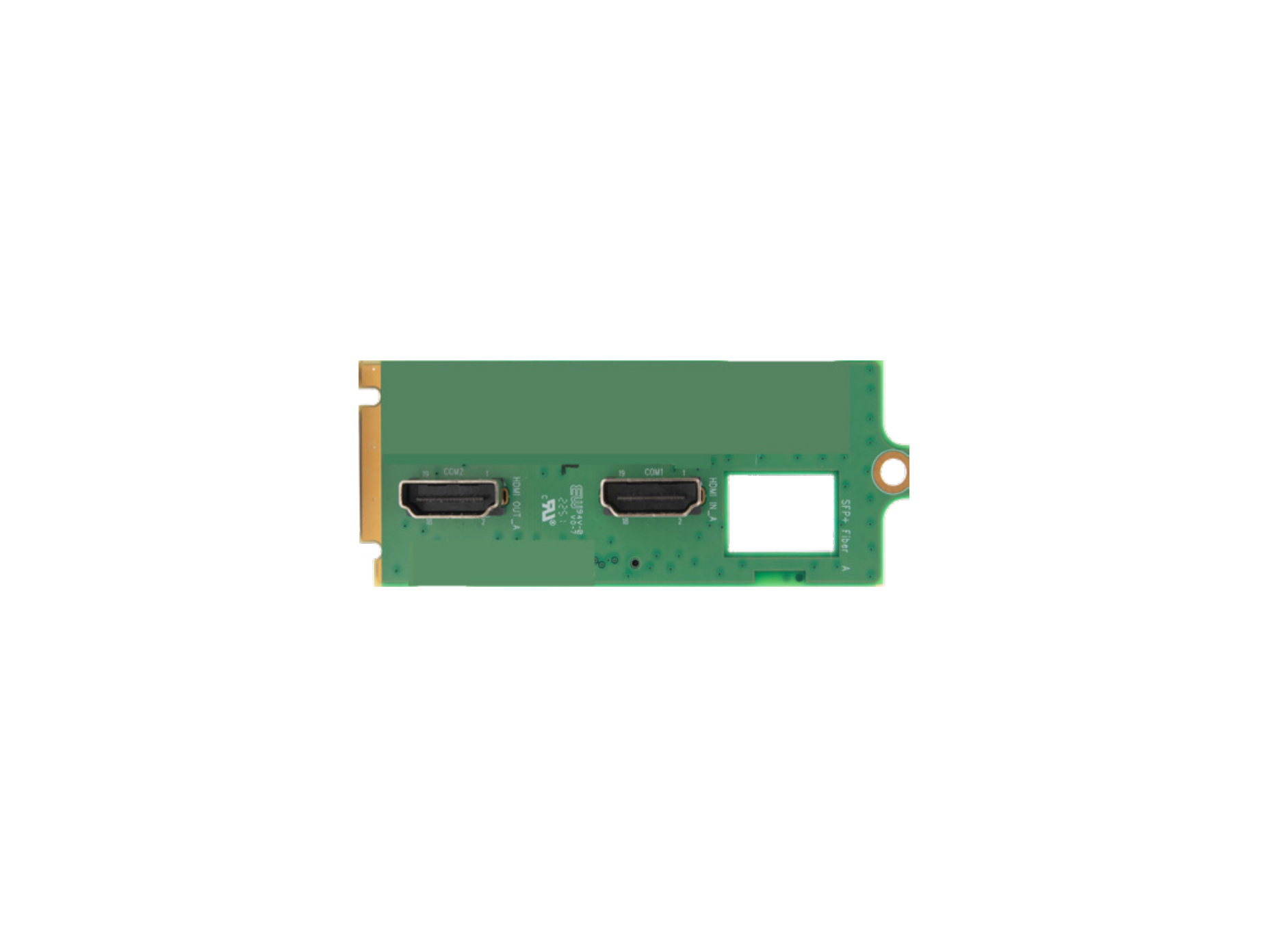

OenGear SDVoE HDMI 2.0 UHD AV over IP transmitter rear module with HDMI 2.0 input with loop out.
- 1 x HDMI input
- 1 x HDMI Loopout
- 1 x SFP Output
