Description

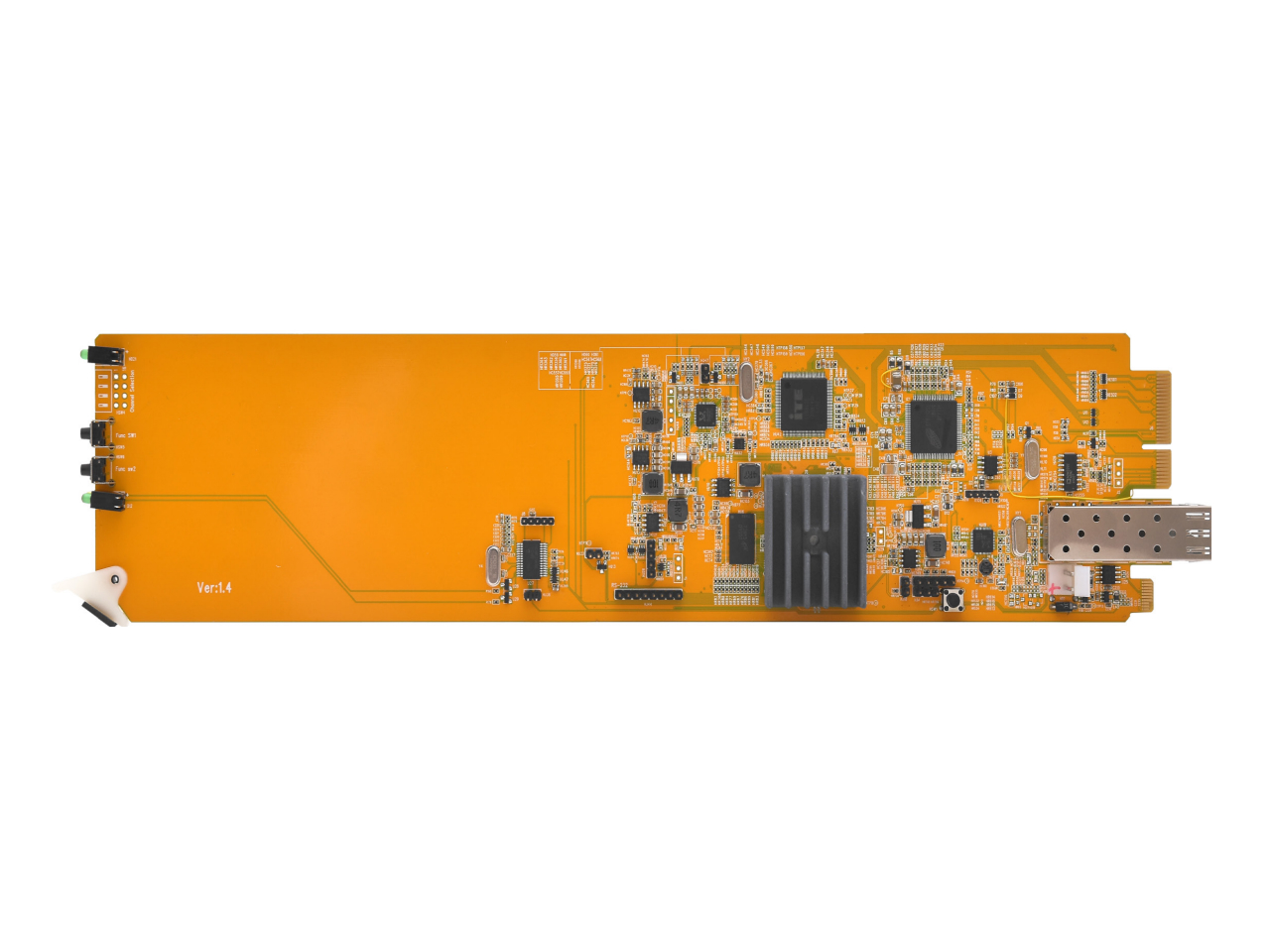

OG-KVM-IP-Tx-MB
OpenGear card. KVM Extender over IP, HDMI with Looping Input, USB Mouse & USB Keyboard over Gigabit Ethernet Main board
Features
- openGear 3.0/X card-based form factor
- Dashboard control enabled
- 10 cards can fit into an openGear OG-X frame
- Based on Gigabit Ethernet Technology (IGMP and Jumbo frame), outputs both copper or fiber
- Requires KVM-IP-Rx, KVM-IP-Rx-P, KVM-IP-Rx-F to complete the system
- Multi-mode Fiber – support up to 550m (OM2/OM3)
- Single-mode Fiber – Supports up to 10 km
- Copper – Supports up to 170 meters point to point extension with CAT6 cable
- Copper – Supports up to 100 meters when used with a GigE switch
- Supports point-to-point (unicast), point-to-multi-point (multicast) for audio/video distribution
- Perform similarly to an expandable KVM switch when bundled with a GigE switch
- Supports bi-directional stereo audio; embedded HDMI and external stereo input
- Supports RS-232 communication between Tx and Rx
- Built-in web-page for configuration
- Connection manager software for Tx/Rx management
- Supports resolutions up to 3840×2160@30Hz
- Advanced EDID management functionality. Built-in EDID, EDID pass through, copy EDID and sharing EDID
- Built-in scaler on the receiver
- Low power consumption – less than 10W
- SFP-1G-F-Tx

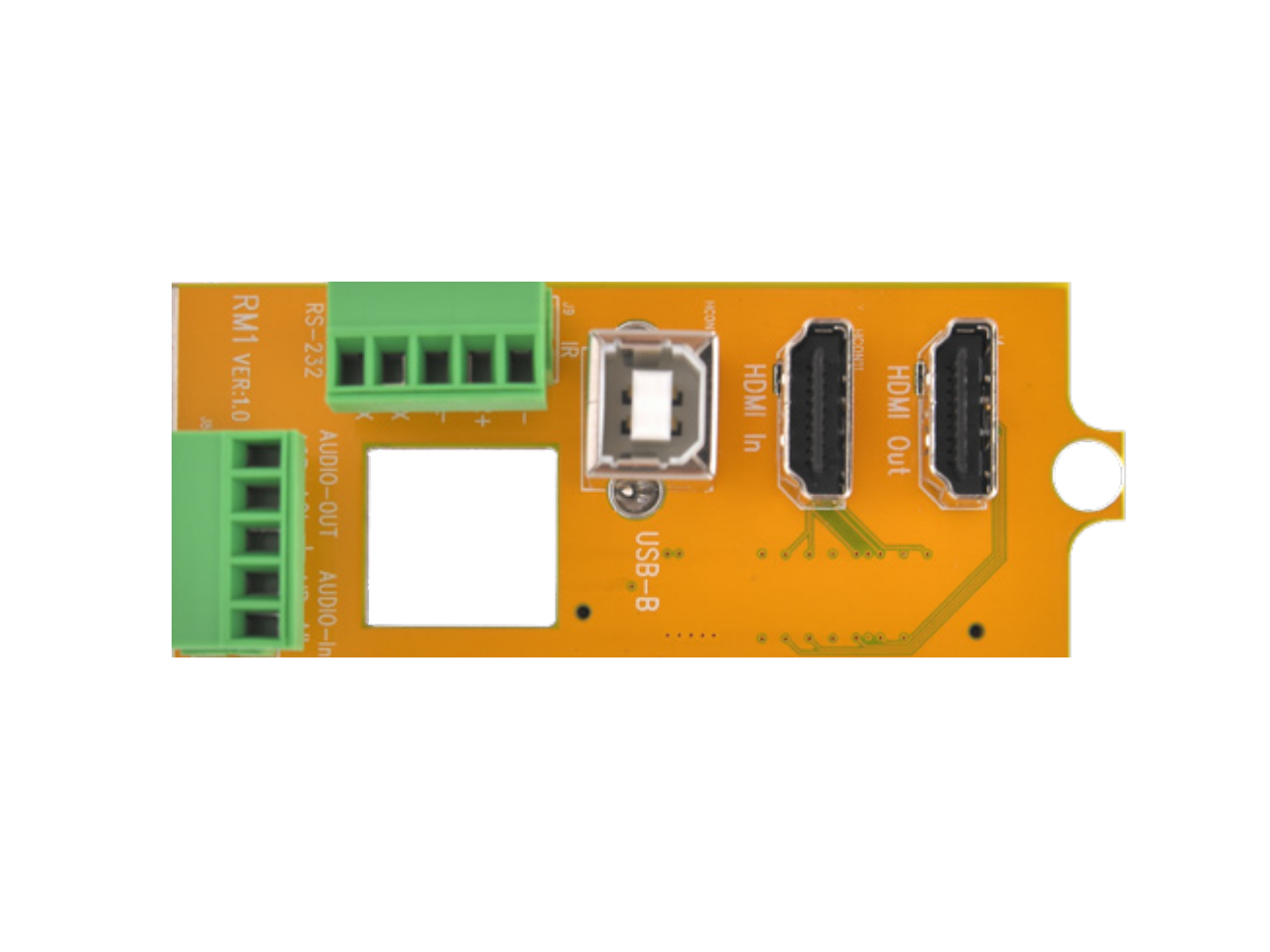

OG-KVM-IP-Tx-RM
OpenGear card. KVM Extender over IP, HDMI with Looping Input, USB Mouse & USB Keyboard over Gigabit Ethernet Rear Module
- 1 x HDMI input
- 1 x HDMI output
- 1 x USB to conntect to computer
- 1 x 4 pin for IR and RS232
- 1 x 4 pin for Audio in and out
- 1 x space for SFP (fiber or copper)
