Description

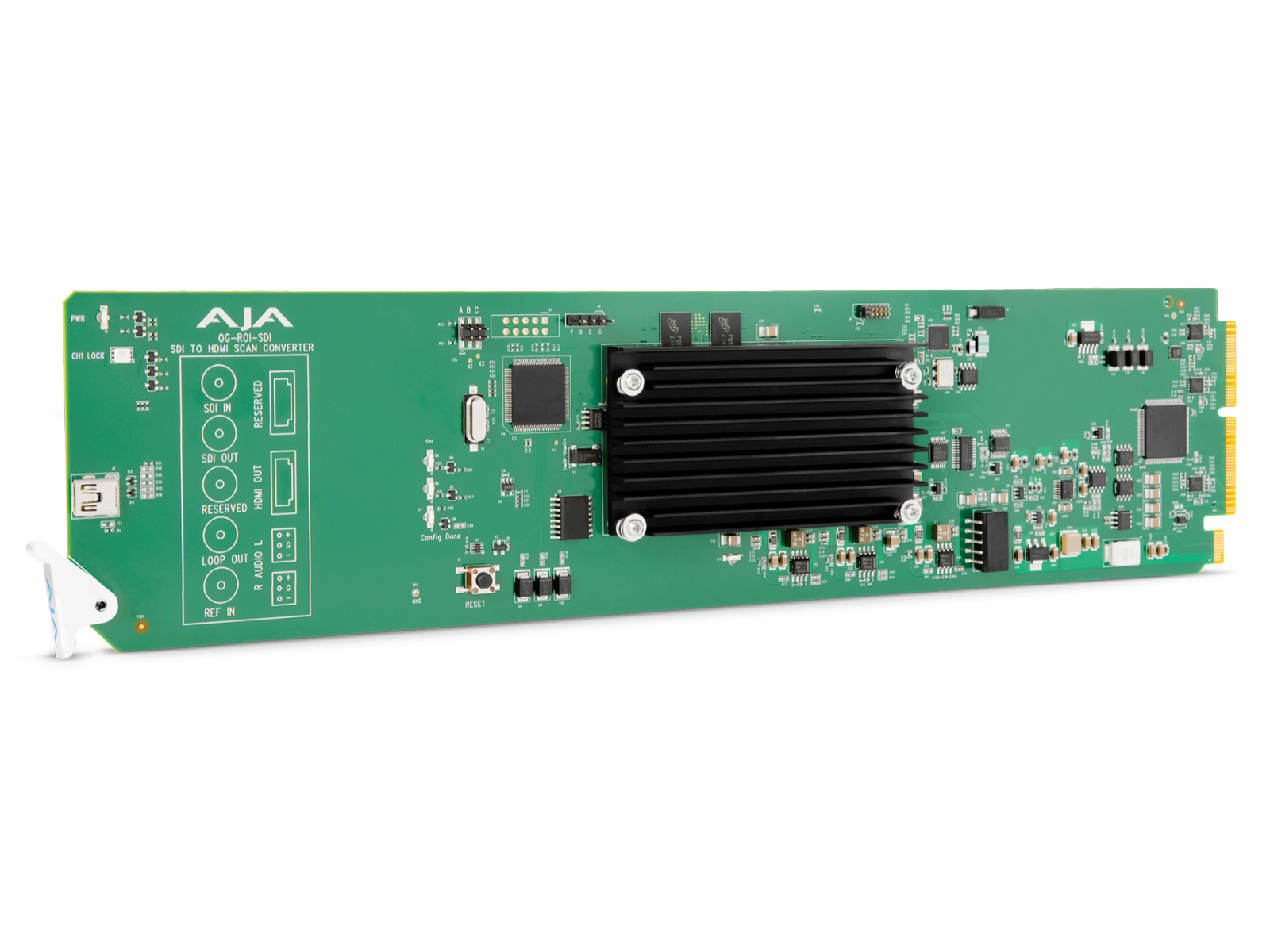

Download Manual AJA’s OG-ROI-SDI is an openGear card that allows exceptionally high-quality scan conversion of SDI inputs to 3G-SDI and HDMI baseband video outputs. With incredible region-of-interest image scaling as well as aspect ratio and frame rate conversion, OG-ROI-SDI fulfills the growing need to properly incorporate extractions from 3G-SDI sources into 3G-SDI and HDMI feeds without sacrificing budget or space.
Features
- Scan Converter
- openGear compatible card
- 3G-SDI input with loop through
- 3G-SDI and HDMI 1.4 outputs
- Supports SD, HD, and 3G formats (see Tech Specs for complete list)
- Region of Interest Scaling
- Up, down, cross-conversion
- Aspect ratio conversion
- Frame rate conversion
- Image H/V flip and 90 degree rotation
- Supports 8-channels of embedded audio
- 2-channel analog audio output of disembedded audio (2x 3-Pin Terminal Block connectors included)
- Sync reference selection (External, openGear frame, or Free-run)
- Remote control over Ethernet using DashBoard network control software
- Hot-swappable
- Compatible with DFR-8321, OG3 and OGX openGear frames
- Five year warranty
Region of Interest
Eliminate extra interface clutter and menu bars and extract only the portion of the computer screen you want.
OG-ROI-SDI is fully compatible with the free Ross DashBoard application, offering interactive selection of a Region of Interest from the incoming computer signal. You have full control over how that region is scaled to the output resolution using AJA’s high quality scaling algorithms for the cleanest picture quality possible.
Take full control of aspect ratio, image rotation and frame rate conversion with on-screen controls in the DashBoard software that shows you what your source and output will look like, including the formats that are coming in and the choices you have made for the signal going out.
openGear ROI Window Wall Workflow

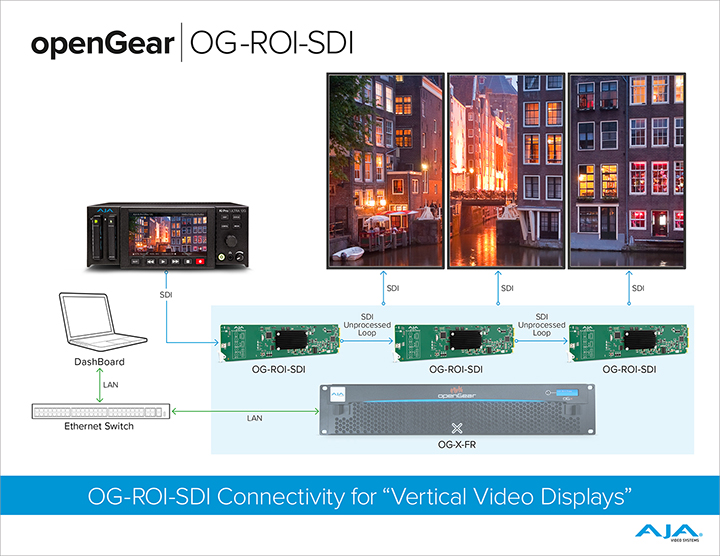

You’re able to easily create highly effective and engaging displays by using additional OG-ROI-SDI openGear converters. By utilizing three OG-ROI-SDI openGear converters in the appropriate rackframe you can feed three display monitors side by side, each rotated to portrait mode. By using the SDI pass through of the OG-ROI-SDI, the SDI routed image is in sync, with each OG-ROI-SDI providing the necessary Region of Interest output via SDI. Settings for each of the OG-ROI-SDI openGear converters is provided via ethernet control through an ethernet switch. The result is a visually exciting and creative way to feed display content.
Audio
OG-ROI-SDI accepts 2-channel analog audio from the 2x 3-pin terminal blocks connectors or embedded 8-channel audio from an SDI input. The audio source and routing can be selected in the DashBoard software and is embedded into the SDI output. This allows computer audio to be embedded within the SDI signal for easy, synchronized routing.
openGear Compatibility
The openGear standard ensures that AJA cards will be compatible with other openGear products from certified openGear partners. With a growing list of products, openGear is the future of rackframe products.
Flexible I/O
The modular rear panel allows custom I/O connections per card (included with individual cards).
Failsafe
The optional redundant power supply provides a secondary power source in the event of a primary power failure.
Ethernet Access
A standard Ethernet connection allows the frame to be accessed via the Dashboard application for overall frame communication. Optional per-card Ethernet access can be installed in the frame for advanced communication with compatible openGear cards.
