Description

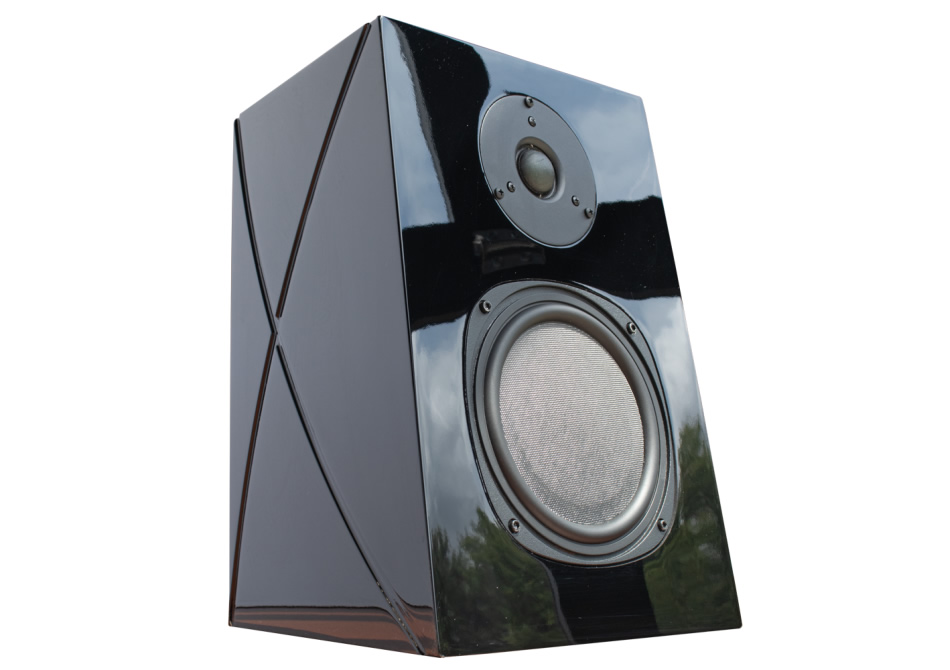

Download Manual The PL150 is a compact 2-way bookshelf speaker designed to deliver a broad, natural soundstage for home listening environments. It combines a 6.5in tri-laminate RPF® fiberglass and Kevlar woofer with a 28mm soft dome tweeter to reproduce music and movie soundtracks with clarity and authority. The enclosure is ported to extend low-frequency response and provide balanced bass output.
Key acoustic features include the flat-piston RPF® woofer design and Absolute Phase™ crossover topology which broaden dispersion and preserve phase coherence. These design choices produce a wide listening sweet spot and consistent tonal balance across the frequency range. The speaker achieves a sensitivity of 86 dB and a nominal impedance of 4 ohms to match a variety of amplifiers and receivers.
Performance specifications include a frequency response of 40 Hz – 22 kHz (±3 dB) and a recommended amplifier power range of 10 – 150 W. The 1.125in soft dome tweeter handles high-frequency detail while the 6.5in RPF® woofer provides controlled mid-bass and midrange definition. The ported cabinet and tuned enclosure geometry extend usable bass while maintaining transient accuracy.
Connectivity is provided via gold-plated binding posts compatible with banana plugs, spade connectors, or bare wire, delivering reliable signal transfer and low contact resistance. The removable magnetic cloth grille is black and designed for unobtrusive listening or cosmetic integration. The PL150 meets CE and RoHS standards and is TAA and BAA compliant for government and commercial procurement.
Typical applications include stereo bookshelf systems, nearfield listening in small to medium rooms, secondary channels in home theaters, and desktop audio setups where accurate imaging and a wide sweet spot are desirable. The compact footprint and flexible placement options allow use on stands, shelves, or credenzas while preserving room aesthetics. When paired with a Power Lux subwoofer and PL350 center or surround speakers, the PL150 integrates into full home theater systems.
Each PL150 is handmade and finished in a high-gloss or customizable finish and receives quality control at the Jacksonville, Florida facility. Installation is straightforward using the integrated binding posts and optional speaker stands or mounts, and the magnetic grille attaches quickly for a clean appearance. The combination of build quality, tuned enclosure, and refined crossover design delivers a reliable, long-term listening solution.
