Description

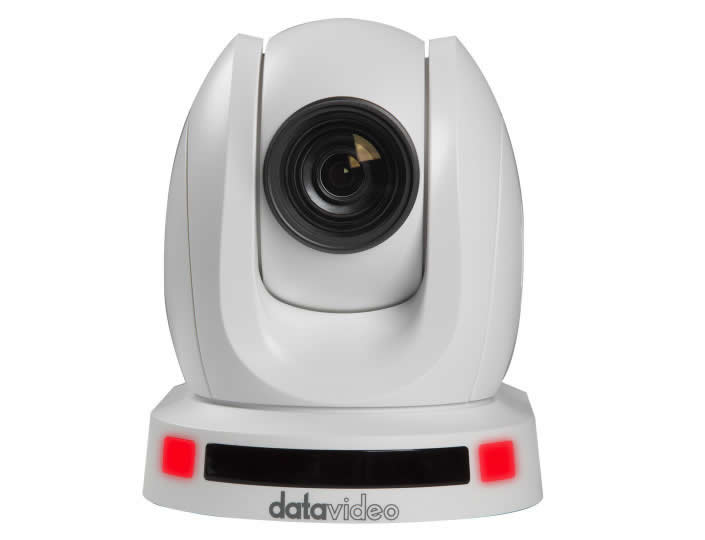

The PTC-145TW is a Full HD PTZ camera that combines 20x optical zoom and HDBaseT transmission to deliver high-quality video for installations requiring remote links and flexible framing. It provides smooth pan, tilt and zoom control and automated tracking to maintain subject framing without a dedicated operator. This model is available in white and is designed for professional AV environments.
Key features include a 1/2.8″ CMOS sensor, 20x optical zoom and 8x digital zoom that preserve image detail at long focal lengths. The camera implements a PID-based Smart PTZ Speed Adaptation to ensure fluid lens movement and to prevent jerky or abrupt stops. Quick framing presets allow operators to switch between full-body, half-body and close-up compositions instantly.
Imaging performance delivers Full HD 1080p output using proven HD video interfaces. Auto Tracking and one-click AI Tracking allow the camera to follow subjects reliably while maintaining smooth motion. The combination of optical zoom and digital zoom gives a wide operational range for both stage and distant subjects.

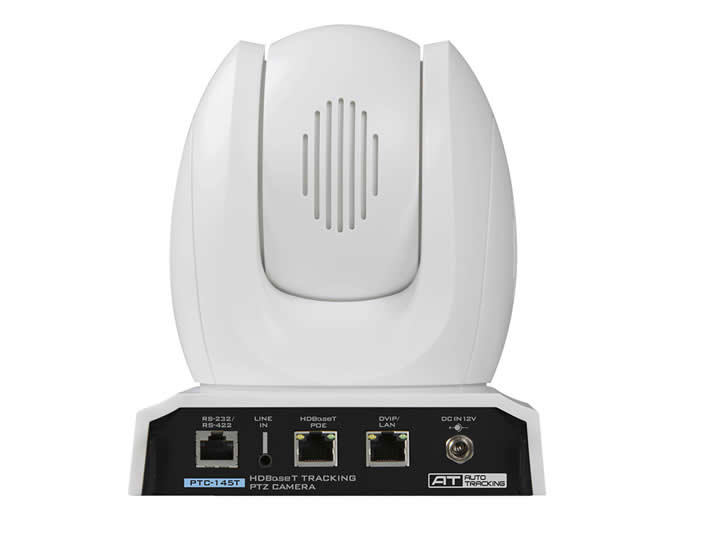

Connectivity covers HDMI, 3G-SDI and streaming outputs plus HDBaseT for long-distance single-cable transmission. The camera also offers line-in and a dedicated 3.5mm microphone input to integrate local audio sources. SDI simultaneous video output supports parallel feeds for recording or broadcast monitoring.
Typical applications include lecture capture, live events, houses of worship and broadcast contribution where unattended tracking and long cable runs are needed. The integrated RMC-1AT controller compatibility and IR remote support let technical staff set presets and control multiple units efficiently. The camera’s tracking and framing tools reduce the need for on-site camera operators.
Installation and operation are straightforward with multiple control options and preset recall. The robust mechanical design and professional connectors ensure reliable performance in fixed-install environments. Overall, the PTC-145TW provides an effective balance of image quality, control automation and connectivity for permanent AV installs.
