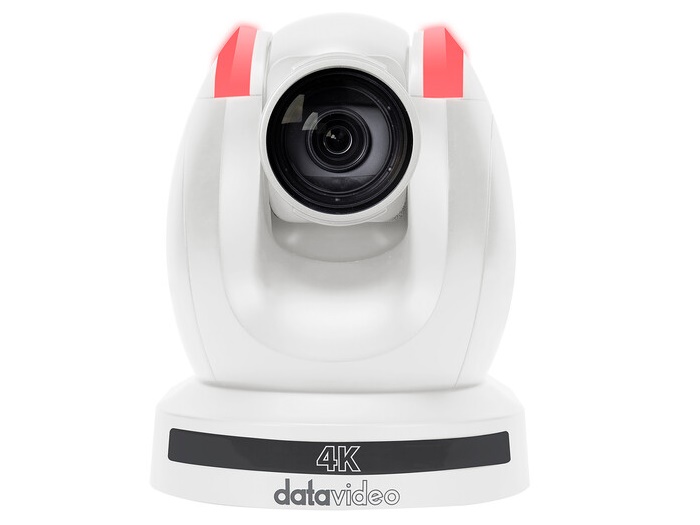

| PTC-280 4K PTZ Camera |
| Video Output Resolution |
HDMI: 3840 x 2160p at 25, 29.97, 30, 50, 59.94, 60 fps
1920 x 1080p at 25, 29.97, 30, 50, 59.94, 60 fps
1920 x 1080i at 50, 59.94, 60 fps
1280 x 720p at 50, 59.94, 60 fps
SDI: 1920 x 1080p at 25, 29.97, 30, 50, 59.94, 60 fps
1920 x 1080i at 50, 59.94, 60 fps
1280 x 720p at 50, 59.94, 60 fps
|
| Image Sensor |
1/2.5" CMOS
|
| Effective Pixels (approx.) |
8.51Mega Pixels
|
| S/N Ratio |
≥55dB
|
| Min. Illumination |
0.5 Lux @ (F1.8, AGC ON)
|
| Zoom Ratio |
12x Optical, 16x Digital Zoom
|
| Gamma Control |
Off / Normal
|
| Iris Control |
Auto / Manual
|
| Digital Noise Reductions |
2D/3D Noise Reductions
|
| On-Screen Display (OSD) |
English/Simplified Chinese/Traditional Chinese
|
| White Balance |
Auto, Indoor, Outdoor, One Push, Manual
|
| AGC / Gain Control |
Yes
|
| Mirror / Flip Image |
Yes
|
| Focus Mode |
Auto/Manual
|
| Panning/Tilting Range |
Pan: 300°
Tilt: +130° to -15°
|
| Panning/Tilting Speed |
Pan: 0.876°/s~43°/s
Tilt: 0.693°/s ~21.32°/s
|
| Preset |
255
|
| Focal Length |
12x, f = 6.7mm ~125mm, F1.58 ~ F3.95
|
| Field of View (Horizontal, Wide) |
71°
|
| Image Compensation |
Back light compensation
|
| Video Output |
HDMI 2.0 x1 ,3G-SDI x1, 10/100/1000M RJ45 x1
|
| Audio Input |
3.5 mm x1 (mic in/line in)
|
| Tally LED |
Yes
|
| Filter |
N/A
|
| Protocol |
Pelco-D, Peldo-P, VISCA, VISCA over IP
DHCP, RTSP, RTMP (IP Cam), RTMPS, DVIP
|
| Remote Control Interface |
IR , Web UI , RS-422 , DVIP
|
| F/W Update |
Via Web UI or USB 2.0
|
| IR Control |
Yes
|
| Camera Control Unit |
RMC-180,RMC-300A
|
| Video Compression |
H.264/H.265/MJPEG
|
| Video Stream |
Dual Stream
|
| First Stream Supported Resolution |
3840x2160 , 1920x1080 , 1280x720 , 1024x576
960x540 , 640x480 , 640x360
|
| Second Stream Supported Resolution |
1280x720 , 1024x576 , 720x576 (50Hz) , 720x480 (60Hz)
720x408 , 640x360 , 480x270 , 320x240
|
| Video Bitrate |
32Kbps ~ 50Mbps (Single Stream)
|
| Video Bitrate Mode |
VBR, CBR
|
| Encoding Framerate |
50Hz: 1-50fps
60Hz: 1-60fps
|
| Audio Compression |
AAC
|
| Audio Bitrate |
96Kbps, 128Kbps, 256Kbps
|
| Supported Protocols |
TCP/IP, HTTP, RTSP, RTMP(S), ONVIF, DHCP, Multicast
|
| Power |
DC 12V
|
| Power Consumption |
DC 12V
|
| Operating Temperature |
0°C ~ 40°C
|
| Storage Temperature |
-40°C ~ 60°C
|
| Dimension (mm) |
173 (W) x 219 (H) x 189.08 (D)
|
