Description

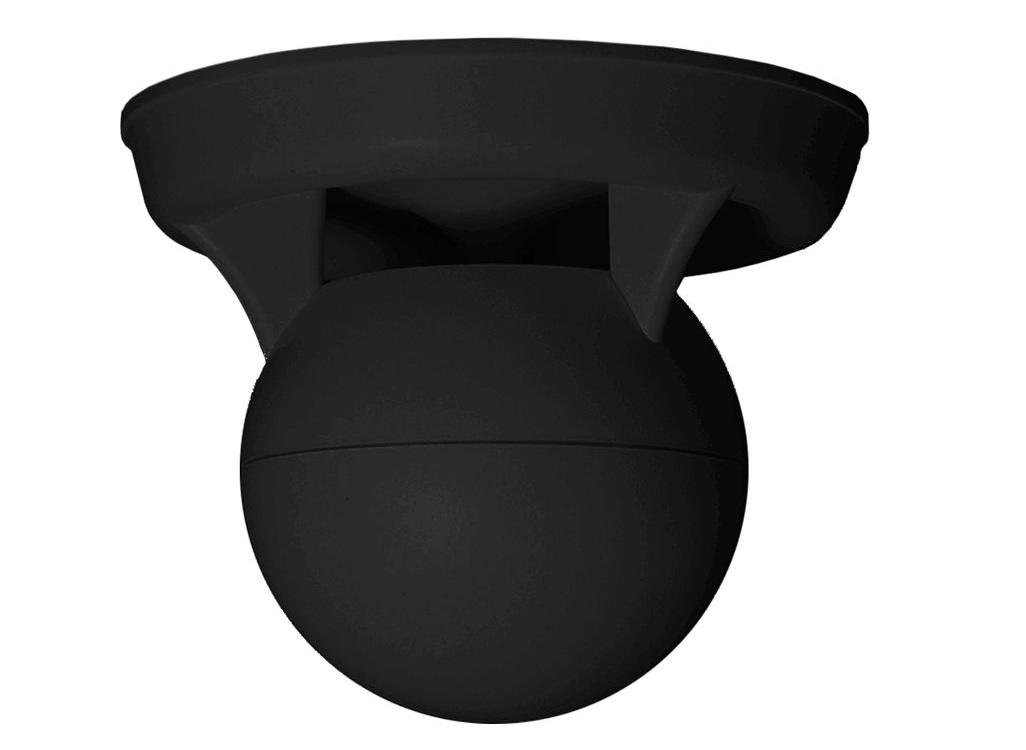

The SS-Q-6-BK is a compact weatherproof coaxial loudspeaker designed for clear full-range music and intelligible voice announcements in indoor and outdoor environments. It uses a 6-1/2 inch coaxial driver and proprietary dispersion technology to achieve broad frequency coverage. The product is supplied fully assembled and ready to mount, reducing installation time.
The speaker delivers hemispherical coverage that can evenly cover large areas with fewer units. It features a wide frequency response down to 70 Hz at -10 dB and extended high-frequency response to 20 kHz. Sensitivity is high, supporting efficient operation with modest amplifier power.
Performance metrics include a nominal impedance of 4 ohms, 35 W continuous RMS power rating, and a maximum SPL of 105.5 dB at 1 m. Frequency response is specified as 220 Hz to 20 kHz at -3 dB and 70 Hz to 20 kHz at -10 dB, while crossover frequency is 1500 Hz. Coverage angles average 175deg across 500 Hz to 10 kHz, providing wide, even dispersion.
Connectivity is via hard-wire leads for direct integration into existing audio systems and the unit can be ordered with an optional 30 W line-matching transformer. The enclosure uses structural foam polystyrene with rustproof hardware to withstand year-round exposure. Standard finish is white and is paintable, with custom colors available for discreet installations.
Typical applications include open-air seating, retail patios, covered walkways, and multi-zone distributed audio systems where full-range music and clear paging are required. The wide dispersion reduces the number of speakers needed to achieve uniform coverage in large spaces. Model Q-6 Power2 option adds onboard amplification for single-speaker amplified deployments.
Installation is straightforward using the included hanging kit or optional mounting bracket and accessories. The housing and rustproof hardware are specified for weather resistance, and the unit ships ready-to-mount in a single box. Overall, the SS-Q-6-BK balances compact footprint, wide coverage, and durable construction for dependable long-term outdoor audio service.
