Description

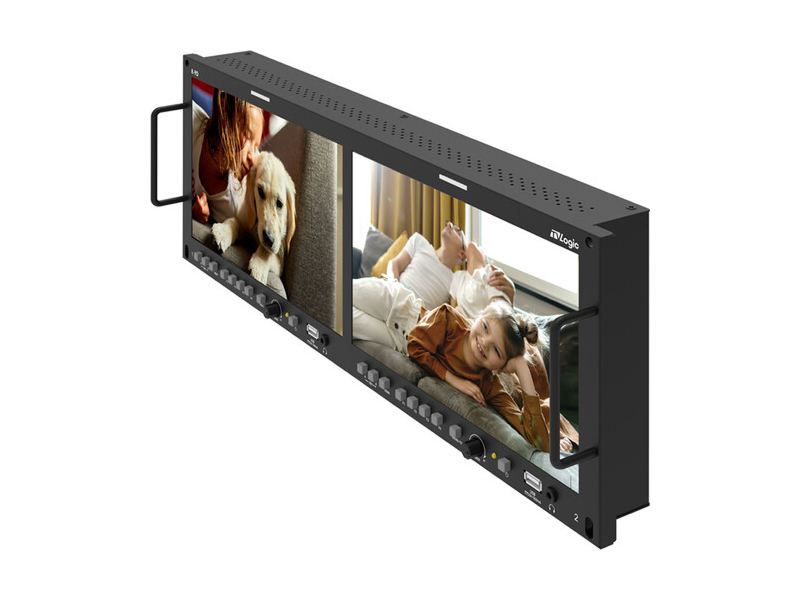

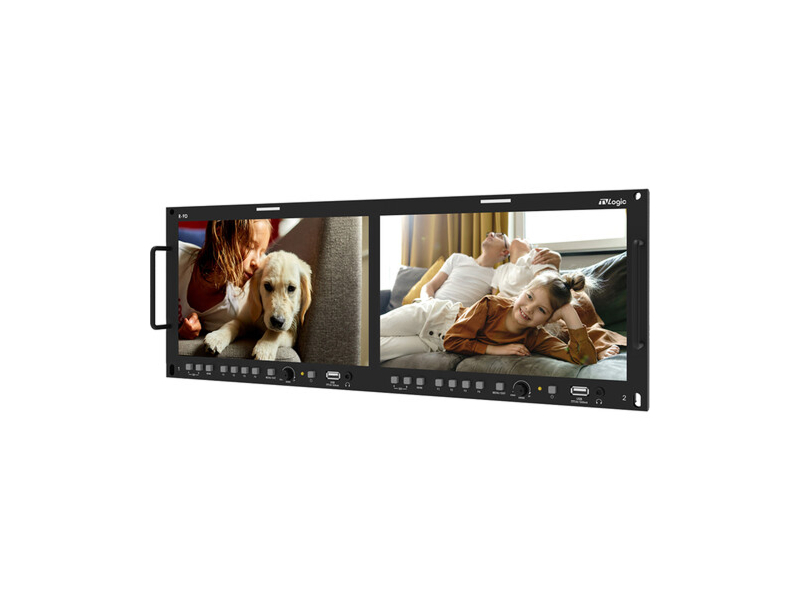

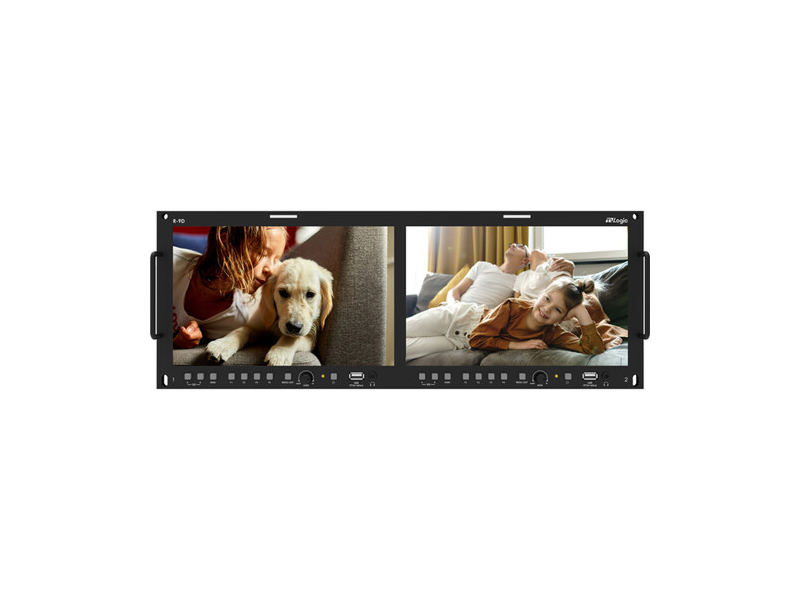

Featuring two 10.1″ displays in a 4 RU design, the Dual 10.1″ 12G-SDI Rackmount Monitor from TVLogic is designed to provide efficient broadcast monitoring of up to two UHD 4K60 signals. The unit has 12G-SDI, 3G-SDI, and HDMI inputs and outputs per display, as well as a 3.5mm headphone output and speakers for each panel. Each 10.1″ display features a 1920 x 1200 resolution and a wide 170° viewing angle.

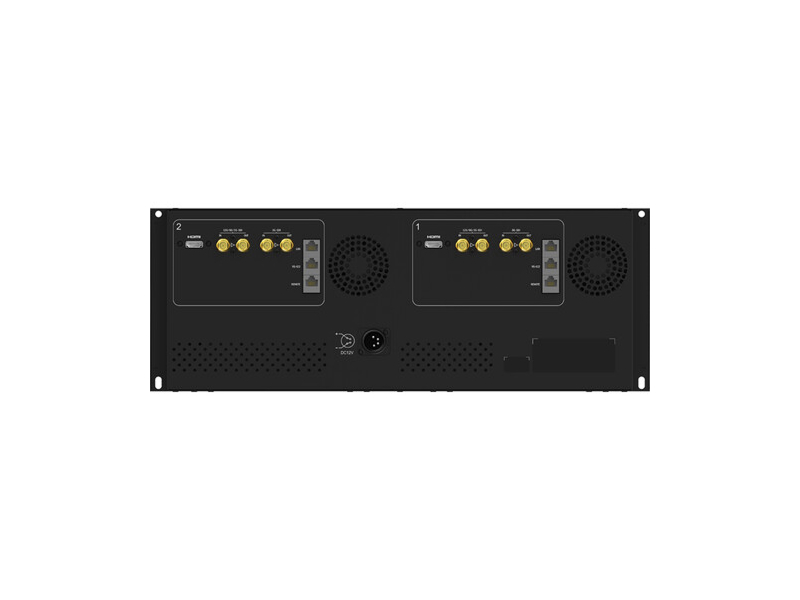

Built-in image analysis functions include HDR emulation, 1:1 scan modes, waveform, vectorscope, delay, luma zone check, a 16-channel audio meter, and timecode display. A 4-pin XLR power input is provided on the rear, and a rackmount kit is included to mount the dual monitor unit in a standard rack.
Features
- Two 10.1″ 1920 x 1200 resolution displays in a 4 RU design
- 12G-SDI, 3G-SDI, and HDM I/O
- Up to UHD 4K60 signal input
- 170° viewing angle
- 800 cd/m² brightness
- 1000:1 contrast ratio
- Headphone and speaker audio outputs
- 4-pin XLR power input
- Ethernet and RS-422 remote control
- 12 VDC power adapter included
- Rackmount kit included
- 1:1 Scan Modes for HD/SD
- HDR emulation (PQ, HLG, SLog3)
- Waveform
- Vectorscope
- 16-channel audio level meter
- H/V delay
- Luma zone check
- Timecode display
