Description

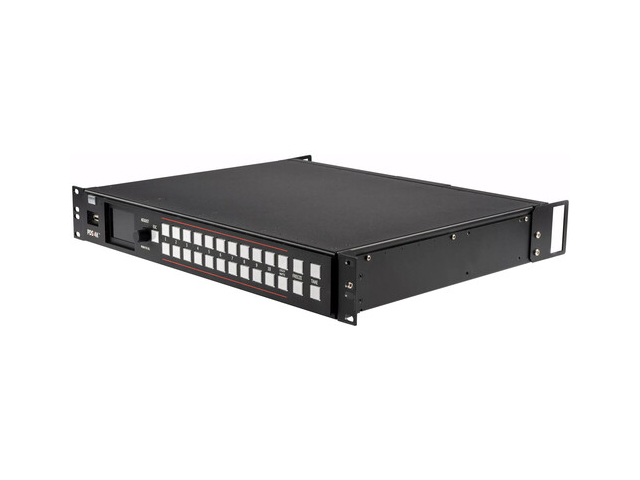

The Barco PDS-4K is a rack-ready presentation switcher that provides UHD 4K60 processing and low-latency two-frame switching for single, dual, and quad-screen displays. It combines multiple digital inputs and outputs to manage mixed-signal sources without degrading image quality.
The unit features six HDMI 2.0 inputs, two 12G-SDI inputs and outputs, two DisplayPort 1.2 inputs, four HDMI outputs, and four 12G-SDI outputs, plus preview and multiview functionality. Event Master Athena scaling reduces scaling artifacts and supports PiP layers to show two live sources simultaneously.
Control options include front-panel mapping, WebUI, Ethernet, and Event Master software integration; an API and optional cards extend functionality while Dante audio support and HDCP 2.2 compatibility ensure modern AV workflows.
Key Features:- Multi-format I/O: Six HDMI2.0 inputs, two DisplayPort1.2 inputs, two 12G-SDI inputs and four 12G-SDI outputs to simplify mixed-source routing
- UHD 4K60 processing: Native 4K60 handling for presenter and content clarity with Event Master Athena scaling to minimize artifacts
- Low latency: Ultralow latency processing of two frames at 60Hz to keep live video and audio in sync
- PiP and Multiview: Two live PiP layers and a 4-way multiview output for simultaneous monitoring and program composition
- Control and integration: Front-panel mappable buttons, WebUI, Event Master software and API support for centralized control and automation
- Audio and compatibility: Dante audio support and HDCP 1.x/2.2 compliance for secure playback and networked audio routing
- Firmware and media: USB inputs for uploading up to eight stills and performing firmware updates
- Corporate AV: Central switching for boardrooms and auditoriums managing mixed HDMI/SDI sources
- Live events: Low-latency PGM outputs and PiP layers for live production and stage displays
- Broadcast/Replay: 12G-SDI inputs/outputs and multiview for monitoring feeds and program outputs
- Education and training: Dual-screen presentation setups with preview and layout recall for lecture capture
