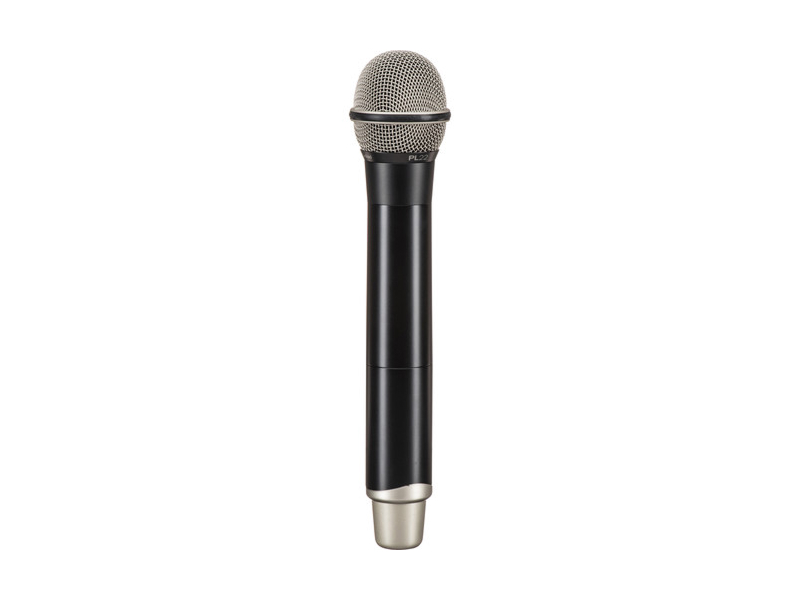

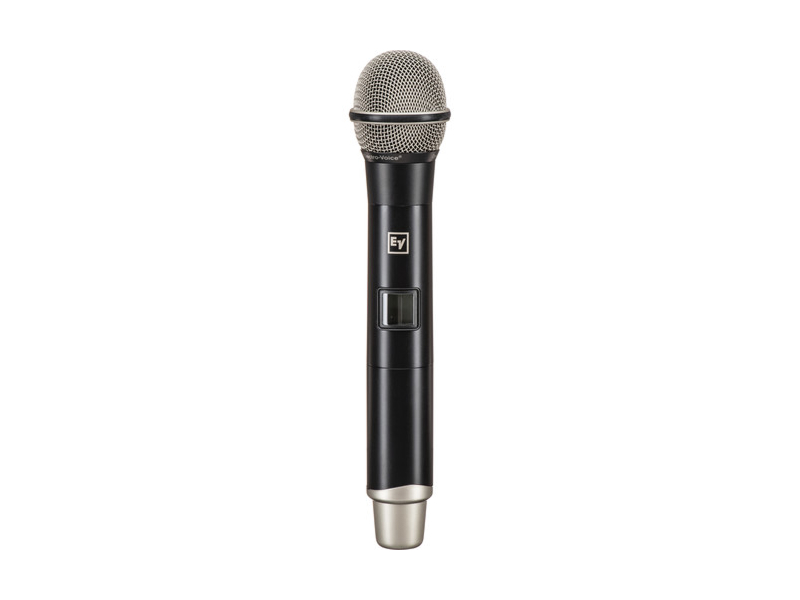

Download Manual The RCC-PL22 is a removable dynamic microphone head designed as the stock capsule for the HT-300 handheld transmitter within the R300-HD wireless system. This microphone head is engineered to improve vocal intelligibility and present a focused pickup pattern for voice reproduction. The PL22 head is optimized for live vocal and spoken word applications where clarity and feedback control are required.
Key features include a dynamic PL22 generating element, a cardioid polar pattern to reduce system feedback potential, and an internal shock mounting system to minimize handling noise. The microphone uses a neodymium magnet to provide consistent element performance across the specified range. The dynamic design requires no additional transmitter battery power for the capsule element.
Performance specifications include a frequency response of 80 – 12,000 Hz, an impedance of 600 ohms, and an open circuit sensitivity of 3.2 mV/pascal at 1 kHz. These parameters deliver clear vocal presence and reliable level matching with typical wireless transmitter inputs. The microphone maintains stable polar behavior across the passband to support consistent on-axis clarity.
Connectivity and mechanical compatibility are provided via the threaded mounting ring assembly and industry-standard pin-out configuration that adapts the head to the HT-300 handheld transmitter body. The assembly installs easily onto compatible handheld transmitters and aligns with common wireless system workflows. The removable design simplifies capsule replacement or service in the field.
Typical use cases include singing, voice presentation, live reinforcement, and broadcast talent applications where improved intelligibility and feedback control are priorities. The cardioid pattern helps isolate the voice from stage ambience and loudspeaker bleed when used with appropriate gain structure. The internal shock mount further reduces handling noise for handheld performers and presenters.
Build quality is reflected in the semi-gloss black finish and compact form factor, with a length of 84.5 mm and a net weight of 122 g that preserve handheld balance. The PL22 head ships with the threaded mounting ring assembly for direct adaptation to the HT-300 transmitter body. For installation technicians and performance staff, the RCC-PL22 offers straightforward mounting and dependable acoustic performance.
