Description

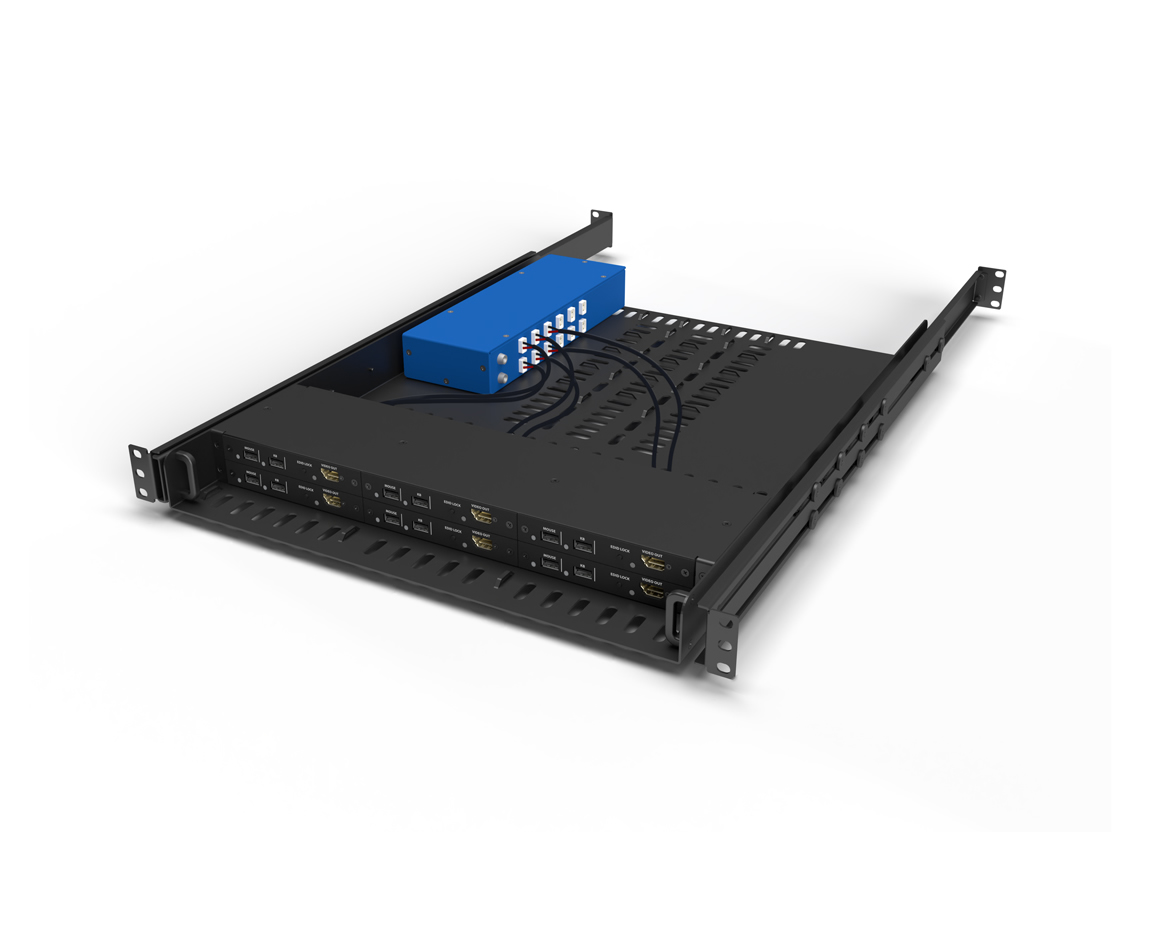

The RK-1U6-FI11PH-M is a 1U rack-mount tray kit that houses six DP/HDMI KVM isolators in a compact metal chassis. It is designed to provide signal isolation for video and USB peripheral paths to protect systems and maintain secure separation. The kit includes a PDUI12 power distribution unit and a secondary redundant PSU port to ensure continuous operation.
Each installed isolator supports DisplayPort/HDMI connections and end-to-end isolation while maintaining video integrity up to 3840×2160 at 30 Hz. The RK-1U6-FI11PH-M model provides USB Type A console ports and USB Type B computer ports for keyboard and mouse connectivity. The chassis and internal layout are optimized for serviceability and dense rack deployments.
On the performance side, the unit preserves 4K30 video at both input and output and supports common desktop operating systems including Windows, Linux and Mac. Environmental tolerances include an operating range of 0 to 40 degrees C and storage range of -20 to 60 degrees C. The product is BAA and TAA compliant and carries a two year warranty and a projected 10 year product life-cycle.
Connectivity includes six DP/HDMI console outputs paired with six DP/HDMI computer inputs and USB Type A/B peripheral links for KVM control. Power is delivered via a redundant 110V-220V AC-DC supply using the included PDUI12 distribution unit. The rack tray accepts standard 19 inch network cabinets and installs as a 1U unit for consistent integration.
Typical applications include secure control rooms, broadcast and production racks, and mission-critical data centers where signal isolation and continuity are required. The tray kit simplifies deployment of multiple isolators while centralizing power management and rack mounting. The isolated connections reduce risk of ground loops and signal contamination between systems.
Installation is straightforward with a purpose-built metal chassis and service-oriented layout for quick access to isolators and the PDUI12 power distribution unit. The kit is built to rack-grade durability and tested to maintain video and USB signal integrity under standard operating conditions. Documentation and support resources guide integrators through setup and maintenance.
