Description

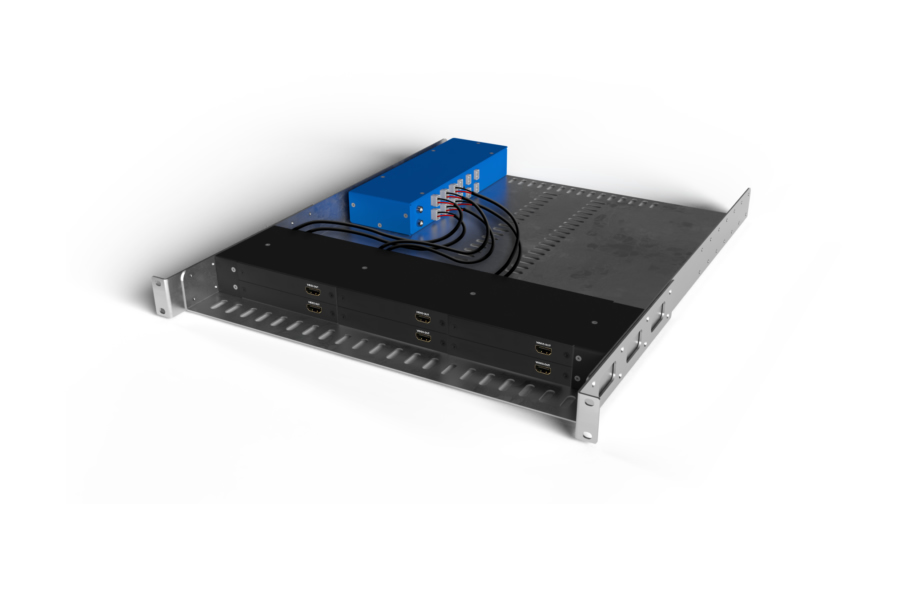

The RK-1U6-FV11H-M is a 1U rack-mount tray kit designed to house six HDMI video isolators in a single network cabinet chassis. This kit centralizes signal isolation to protect display and source equipment from ground loops and EMI while maintaining video integrity. It is supplied with a PDU option and provisions for redundant power to support continuous operation.
The kit supports six HDMI 1.4 interfaces and is rated for 3840×2160 at 30 Hz operation, ensuring compatibility with common 4K sources and displays. Each isolator is installed in a serviceable tray for easy replacement and maintenance. The tray design reduces cabling clutter and simplifies rack integration in dense installations.
Technical specifications include support for HDMI 1.4 signaling and a maximum input and output resolution of 3840×2160 at 30 Hz. The kit accepts a redundant 110V-220V AC-DC power supply arrangement to improve uptime. Operating and storage ranges are suited to typical IT environments with operating temperatures from 0 to 40 degrees C and storage down to -20 degrees C.
Connectivity is provided via six HDMI ports per kit, matching the isolator interfaces. The system is compatible with Windows, Linux and Mac hosts when using isolators that include USB KVM functionality in other variants. Cabling uses standard HDMI connectors and follows typical HDMI 1.4 wiring conventions for signal and power management.
This rack kit is useful in command centers, broadcast racks and secure AV installations where isolating video paths prevents signal degradation and electrical issues. It is appropriate for consolidation of multiple HDMI feeds into a single rack position to streamline management. The redundant PSU option reduces single-point-of-failure risk in mission critical workflows.
Installation is straightforward with a 1U form factor and rack ears for standard 19 inch cabinets. The metal chassis provides durable protection for installed isolators and simplifies service access. Overall the RK-1U6-FV11H-M offers a compact, serviceable solution to deploy multiple HDMI isolators in professional AV racks.
