Description

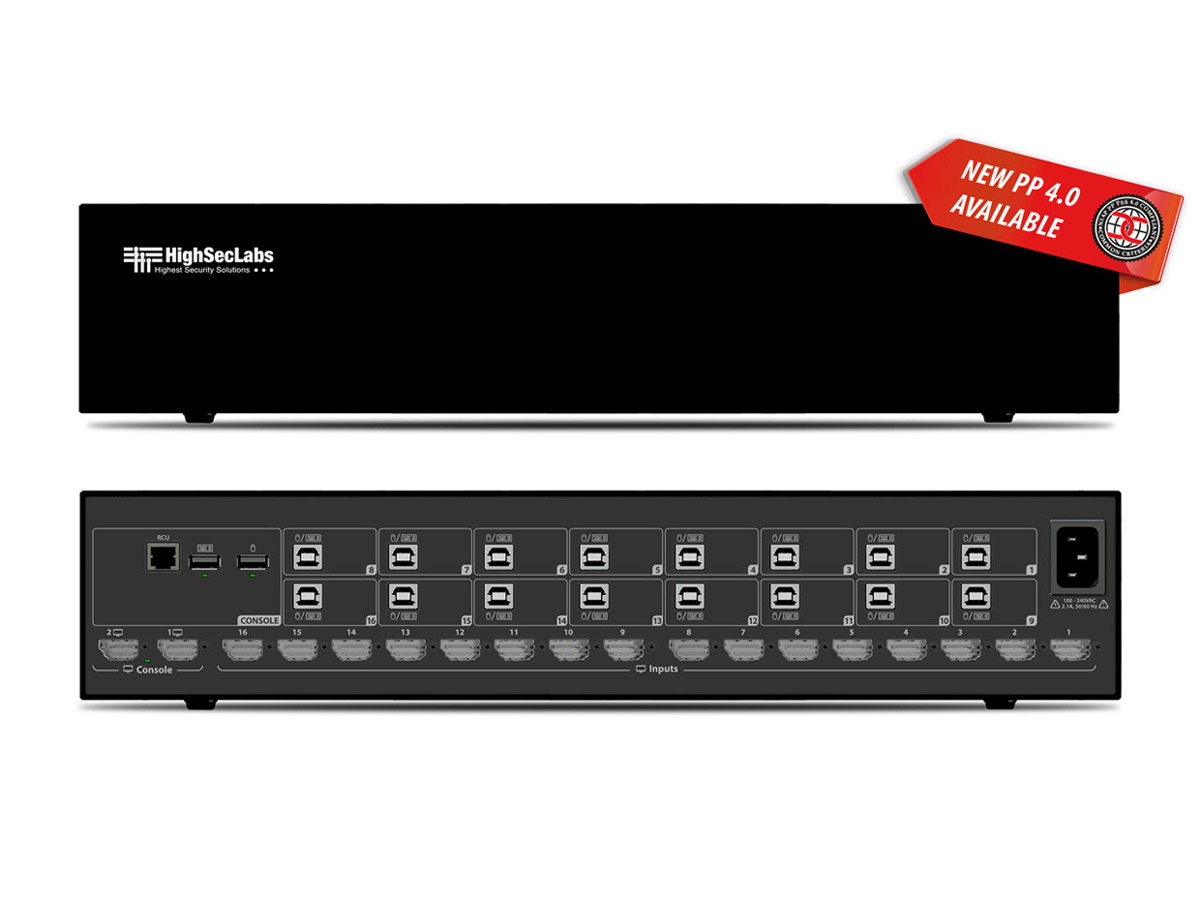

The SC162PH-4 is a secure 16×2 KVM combiner that integrates KVM switching, multiviewer and scaling functionality into a single appliance. It allows simultaneous interaction with multiple computers while presenting sources on one or two displays. The unit is NIAP Common Criteria PP4.0 PSD certified to prevent data leakage between connected systems.
The combiner supports flexible multi-view layouts and custom view modes that can be switched quickly to streamline operator workflows. It provides hardware KVM switching for mouse and keyboard control across up to 16 sources and two console displays. The built-in scaler preserves image quality when routing different resolutions to the console displays.
Video support includes DisplayPort and HDMI inputs with UHD 4K support up to 3840×2160. The device functions as a multiviewer and scaler, maintaining consistent output timing to the console displays. Power is rated at 35W max and the SC162PH-4 uses dual internal redundant power modules for operational resilience.
Connectivity includes two console display outputs (DP / HDMI) and USB Type A console ports for mouse and keyboard. Computer-side connections use DP / HDMI inputs and USB Type B for peripheral emulation. The combiner is compatible with Windows, Linux and Mac hosts and supports common USB HID devices.
Typical applications include secure control rooms, classified enclave environments and multi-source operator stations where separate classification levels must share displays and peripherals without data transfer. The device is suitable for mission-critical AV operations in government, defense and enterprise security environments. Certification to NIAP PP4.0 PSD ensures compliance with strict information separation requirements.
Installation and operation are designed for rack-mount environments with straightforward cabling and console configuration. The unit operates from 100 to 240V AC and is specified for 0 C to 40 C operating temperature. The SC162PH-4 provides a supported 10 year product life-cycle and a two year warranty for long-term deployments.
