Description

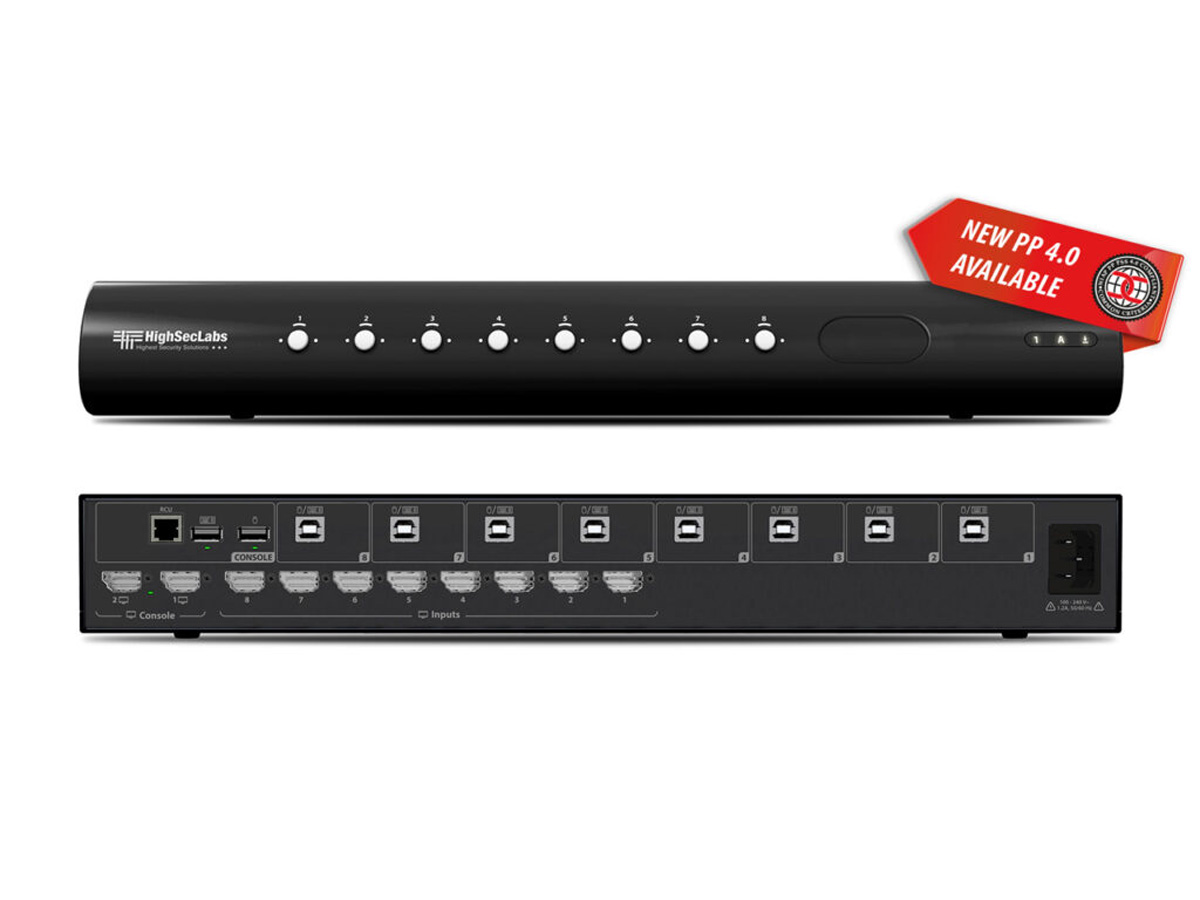

The SC82PH-4 is a secure 8×2 KVM combiner designed to consolidate multiple computer sources onto up to two shared displays and peripherals. It combines KVM switching, multi-viewer and scaling functions into a single appliance – enabling streamlined operator workflows. The unit is certified to the NIAP Common Criteria PP4.0 Protection Profile for PSD and is engineered to prevent data leakage between levels.
The combiner supports simultaneous viewing of multiple systems and allows free switching of keyboard and mouse control between connected computers. It offers configurable multiview layouts and rapid scene switching to adapt to changing operator needs. The device functions as a scaler to maintain consistent output on the console displays.
Video inputs accept DisplayPort and HDMI sources and support UHD 4K resolutions up to 3840×2160. Console outputs provide two display ports that can present single or multi-view outputs across the two monitors. USB Type A console ports and USB Type B computer ports provide keyboard and mouse connectivity.
Power is supplied by an internal unit compatible with 100 to 240V AC and the device consumes up to 35W. Environmental ratings specify an operating temperature range of 0 degrees C to 40 degrees C and storage from -20 degrees C to 60 degrees C. The combiner is certified to CE, RCM, FCC class B, VCCI, TUV US and TUV Canada standards.
This product is intended for secure environments where multiple classification-level systems must share displays and peripherals without risk of cross-domain data flow. Common deployments include control rooms, classified command centers and consolidated operator workstations. The NIAP PP4.0 certification supports procurement for government and defense applications requiring documented PSD protection.
Installation is rack-friendly and the unit ships as a single 1U device with a compact footprint and 3.7 kg weight. Configuration is accessible via the front console and supported operating systems include Windows, Linux and Mac. Firmware updates and configuration controls enable integration into existing AV and security infrastructures.
