Description

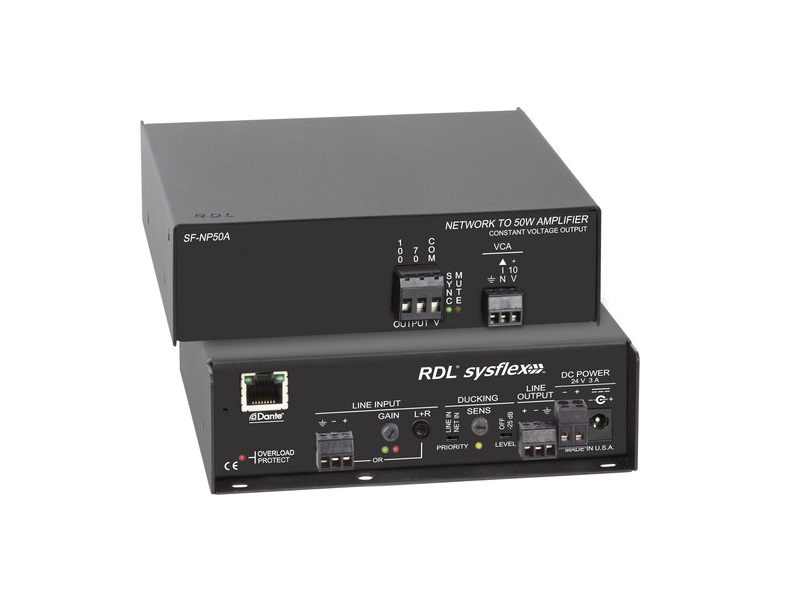

The RDL SF-NP50AX is a SysFlex series 50W Dante to 70/100V mono audio amplifier designed to convert one Dante input and an analog input to a constant voltage amplified output for A/V technicians, system installers, and audio engineers in office buildings, retail environments, and educational facilities. Its Class-D output stage delivers 50W of RMS power at 70 or 100V from an analog input and one Dante stream at up to 24-bit/96 kHz resolution.
A single RJ45 input accepts a Dante network audio channel while a gain-adjustable analog source may be routed to the balanced mono terminal block input or the unbalanced 3.5mm stereo mini jack. Selectable-priority automatic ducking allows attenuation or muting of the non-paging signal, making it ideal for announcements. Outputs include two terminal blocks—one accommodates connection to 70 or 100V speakers, and the other sends a balanced line-level signal. A detachable terminal block is provided for hookup of remote control of the internal VCA. Thermal and short-circuit protection guard against electrical damage and unintended shutdown.
The SF-NP50AX supports powering via the included 24 VDC external power supply (power cord available separately), or from proper wiring to the terminal block power input. Engineered and manufactured in the USA, it boasts a durable metal enclosure for reliable toughness.
Features:
- Converts Dante to Constant Voltage
- 50W Class-D RMS Power at 70 or 100V
- RJ45 Input, Gain-Adjustable Line Input
- Terminal Block & Line Outputs
- Supports VCA Control & Automatic Ducking
- Up to 24-Bit/96 kHz Resolution
- Thermal & Short-Circuit Protection
- Power via Included 24 VDC Power Supply
- Durable Metal Enclosure
- Made in the USA
