Description

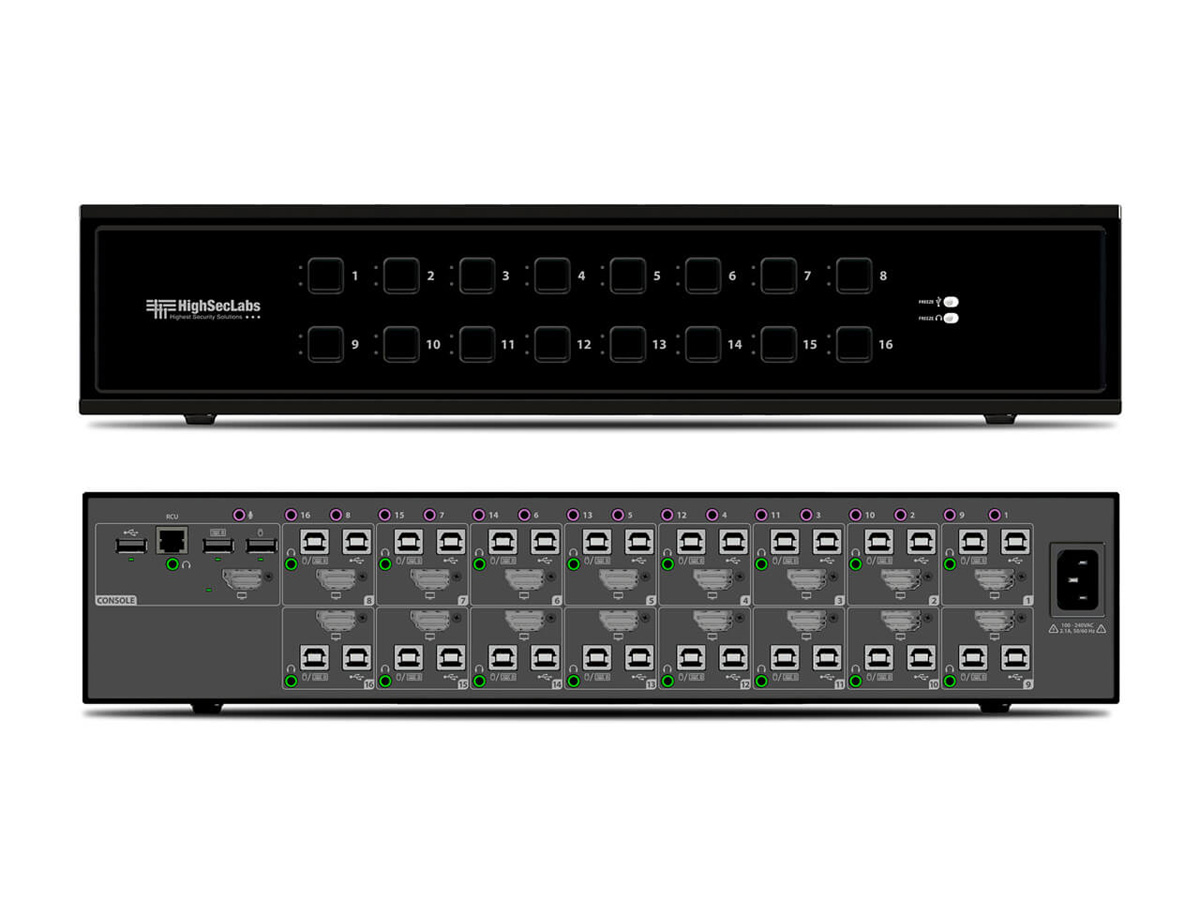

The SK161PHU-N is a 16-port DP/HDMI KVM switcher designed to centralize keyboard video mouse USB and audio control across multiple computers. It provides single-head switching at UHD 4K 3840×2160@60Hz to preserve high-resolution content and accurate color. The unit supports both DisplayPort and HDMI connections via universal connectors for flexible interoperability.
Core features include 16 high-resolution input ports universal DP/HDMI connectors and front-panel illuminated push buttons for direct channel selection. The switcher supports audio in/out and microphone jacks allowing users to route audio independently of video. HSL driver support enables copy and paste between connected systems and virtual display technology for seamless cursor-based switching.
Performance is tailored for graphics-intensive workflows with native 4K60 input and output on the single console display. Console I/O includes one DP/HDMI universal display port plus a USB 2.0 Type B port for keyboard and mouse. Each computer port offers one DP/HDMI universal display connector two USB 2.0 Type A ports and 3.5 mm audio and microphone jacks to maintain peripheral parity across systems.
Connectivity options include DP/HDMI universal connectors on both console and computer sides supporting standard cables and adapters. Control methods consist of front-panel push buttons RS232 keyboard hotkeys and mouse-driven virtual display switching. The switch supports Windows Linux and Mac operating systems for broad compatibility in mixed-OS environments.
This KVM switcher is suitable for command and control rooms trading desks broadcast monitoring and AV racks where multiple systems must be managed by a single operator. It simplifies workflows by enabling quick channel changes USB device freezing for persistent attachment and audio freezing to keep a selected audio source active. The design reduces desktop clutter and improves operator efficiency in multi-computer setups.
Installation is straightforward with an internal power supply universal AC input and standard rack-friendly dimensions for desktop or rack placement. The front-panel LEDs and illuminated buttons provide clear status indication while RS232 control allows integration with automation systems. The unit carries CE FCC VCCI TUV US and TUV Canada certifications and includes a two year warranty for operational assurance.
