Description

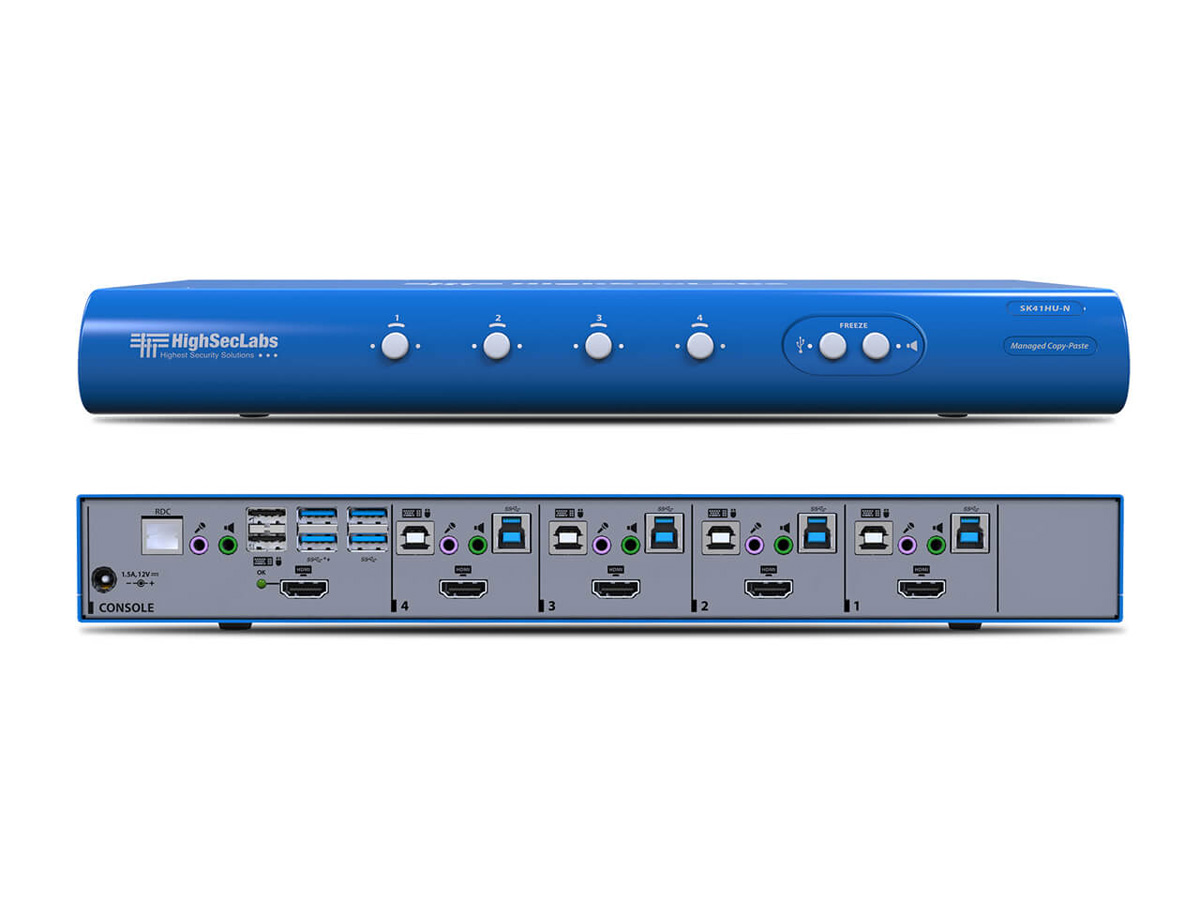

The SK41HU-N is a 4-port HDMI KVM switcher that enables a single keyboard, video, mouse and USB 3.0 peripherals to be shared across four computers. It supports UHD 4K resolutions up to 3840×2160 and provides audio and microphone pass-through. The unit also supports clipboard and file transfer between connected hosts through standard copy and paste operations.
Key features include four HDMI inputs, one HDMI console output, four USB 3.0 downstream ports at the console and a USB 3.0 upstream port per host. The switcher provides 3.5 mm audio and microphone jacks for both console and computer sides. Users can switch sources manually while maintaining USB 3.0 bandwidth for high-speed devices.
Performance supports 3840×2160 video resolution and HDMI 1.4 connectivity. USB Type A console connections and USB Type B host connections provide standard peripheral interoperability. The SK41HU-N draws 12V DC at 1.5A and accepts 100 to 240V AC input via an external power supply.
Connectivity includes HDMI for video, USB Type A/B for keyboard/mouse and USB 3.0 peripheral sharing, and 3.5 mm jacks for audio and microphone signals. The device is compatible with Windows, Linux and Mac operating systems. It is certified to CE, RCM, FCC class B, VCCI, TUV US and TUV Canada standards.
The SK41HU-N is suitable for multi-system workstations where desk space is limited and multiple hosts must share a single set of peripherals. Typical applications include trading desks, control rooms and testing benches where quick switching and clipboard/file transfer improve workflow. The unit reduces equipment cost and clutter by eliminating duplicate peripheral sets.
Installation is straightforward with standard HDMI and USB cabling and a compact desktop form factor measuring 342 x 148 x 42 mm. The housing and connectors are built for continuous use and the product carries a 2 year warranty. Firmware and software compatibility ensure straightforward integration into existing AV and IT environments.
