Description

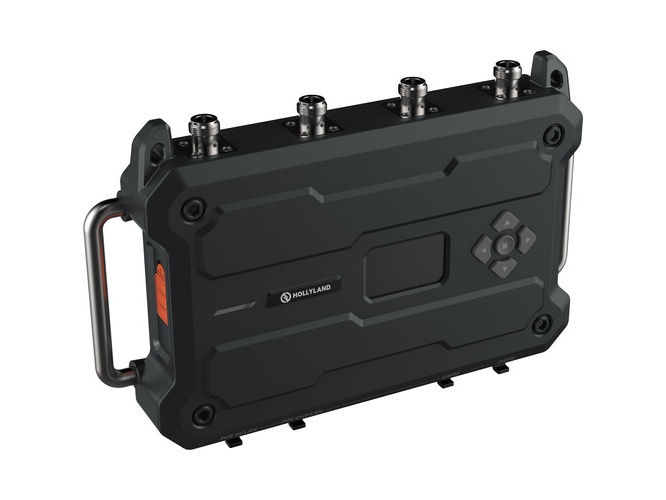

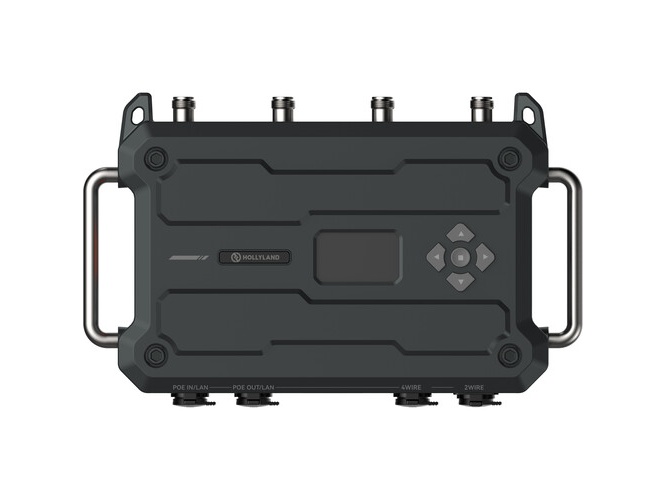

The Solidcom ANT01 is a rugged external antenna designed to extend and stabilize coverage for wireless intercom systems. It integrates with the Solidcom H1 ecosystem to provide wide-area line-of-sight communication across events and production sites. The ANT01 aims to maintain dependable voice links across multiple beltpacks and roaming zones.
Key features include a 1640 ft line-of-sight coverage range, support for 20 to 80 beltpacks depending on system configuration, and seamless roaming between zones. The antenna supports up to 12 groups on its own and scales to 100 groups when used with the Geo Central Station. Built-in app control and cloud connectivity enable remote management and monitoring.
Performance specifications include PoE powering, V-mount battery option, and a measured power consumption of 15.5 W. The ANT01 supports Wi-Fi, Bluetooth and DECT wireless interfaces and offers Dante audio networking compatibility for integrated audio workflows. The unit is rated IP54 for dust and water resistance to withstand demanding indoor or outdoor use.
Connectivity options include comprehensive physical interfaces and networked audio support via Dante, plus mobile app control on Android and iOS. The antenna is compatible with Solidcom H1 beltpacks and the Solidcom H1 Geo Central Station to expand group and user capacity. Cloud communication features simplify remote coordination and system oversight.
Typical applications include live event comms across stadiums and stages, multi-zone broadcast productions, and location-based film or television shoots where reliable roaming and wide coverage are required. The ANT01 supports medium to large teams and integrates into existing communication infrastructure. Its roaming capability ensures uninterrupted handoff between coverage zones.

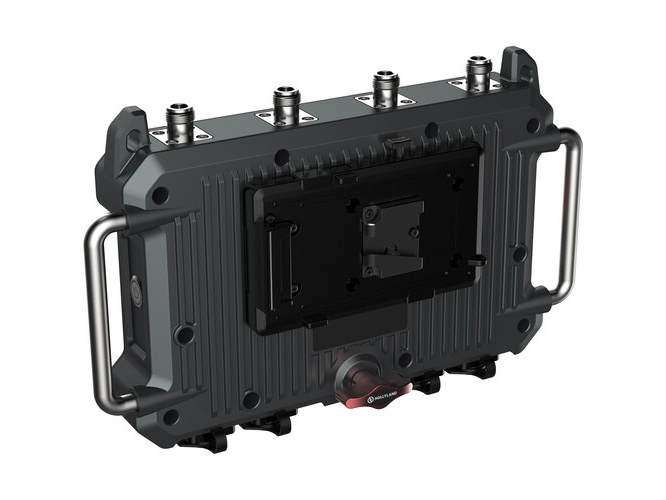

Installation is straightforward with PoE powering and V-mount battery support for temporary deployments. The ANT01 is constructed for rugged field use and its IP54 rating helps protect against dust and splashes during outdoor setups. Physical dimensions and a reasonable weight allow for fixed mounting or temporary rigging while maintaining reliable performance.
