| Display Resolution (VGA) | 1024x768, 1280x720, 1280x1024, 1440x900, 1920x1080 |
| Display Resolution (HDMI) | 1024x768, 1280x720, 1280x1024, 1440x900, 1920x1080, 2560x1440, 3840x2160 |
| Display Feature | Single / Quad / S.E.Q |
| Recording Resolution (Analog) | 5MP / 4MP / 3MP / 1080P / 720P / 960H |
| Recording Resolution (IP) | 5MP / 4MP / 3MP / 1080P / 720P / 960H |
| Recording Speed |
Analog: 8MP: 7FPS/Ch, 5MP: 12FPS/Ch, 4MP: 15FPS/Ch, 1080P: PAL 25FPS/Ch, NTSC 30FPS/Ch IP: PAL 25FPS/Ch, NTSC 30FPS/Ch |
| Sub-Stream | PAL: 704x576 @10FPS/Ch, NTSC: 704x480 @10FPS/Ch |
| Video Compression | H.265 / H.264 |
| Video System | NTSC / PAL |
| Operating System | Linux (Embedded) |

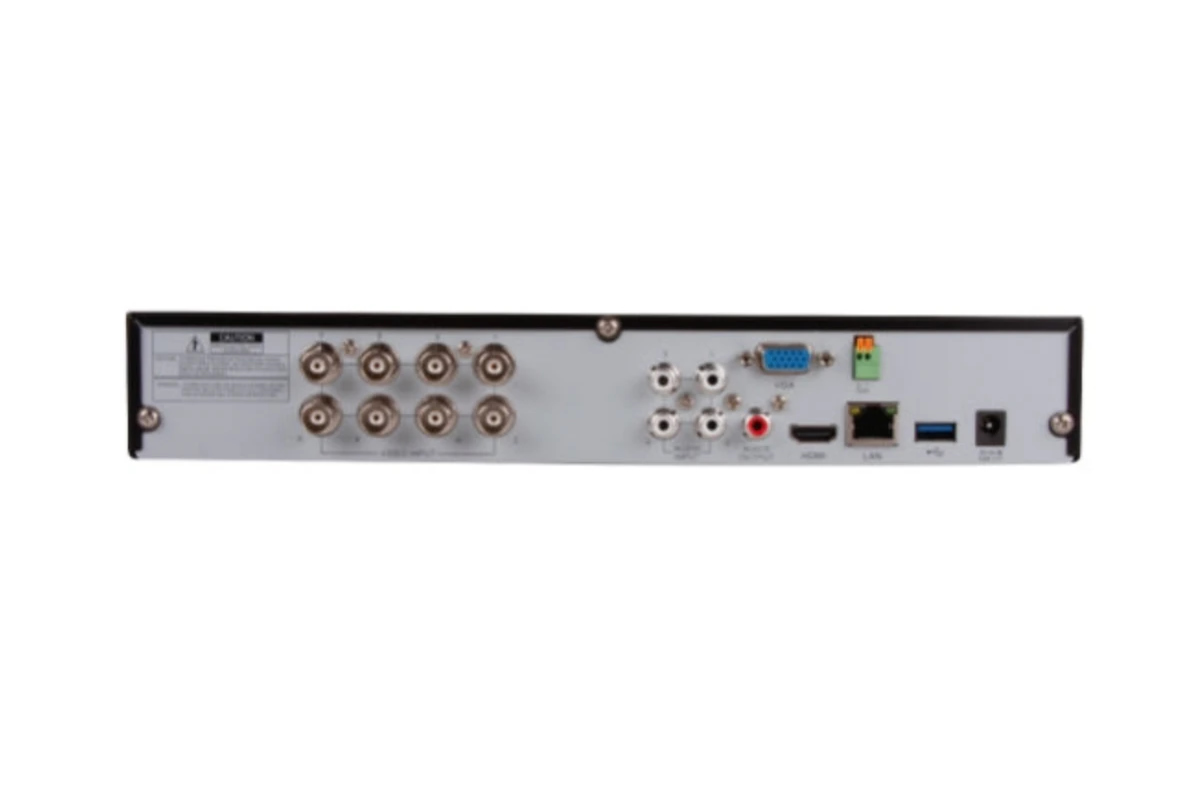

| Analog Video Input / Output | 8-Channel BNC / VGA & HDMI Output |
| IP Video Input | 4 Channels |
| Composite Video Input | Up to 12 Channels (Analog & IP) |
| Audio Input / Output | 4 Audio In / 1 Audio Out |
| IP Recording Bandwidth | Up to 72 Mbps |
| Max Output Bandwidth | 72 Mbps |
| Recording Mode | Continuous / Manual / Motion Detection / Alarm / Video Analytics |
| Synchronous Playback | Up to 8 Channels |
| Network Type | LAN, DHCP |
| HDD Interface | 1 SATA HDD, up to 12 TB |
| USB | 1 USB 2.0 (Front), 1 USB 3.0 (Rear) |
| PTZ Control | Control Over Coax, RS-485 |
| Mobile Surveillance | Bolide Quick Connect on iOS / Android |
| Power Supply | DC 12V / 2A |
| Dimension | 11.8" x 8.2" x 1.89" |
| Working Temperature | 32°F ~ +104°F |
| Working Humidity | 10% ~ 90% |
| Weight | 2.00 lbs |
|---|
