Description

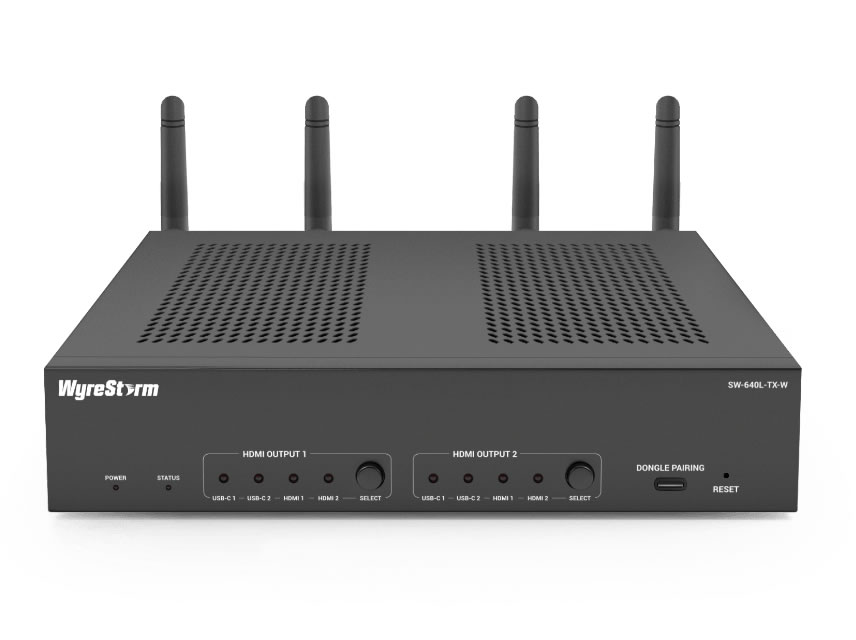

The SW-640L-TX-W is a 4-input wireless presentation and conferencing switcher designed to streamline multi-source collaboration in meeting rooms. It supports two HDMI and two USB-C inputs plus wireless AirPlay and Miracast casting for flexible connectivity. Dual HDMI outputs allow independent matrix switching or mirrored displays.
The unit provides multiview processing to display up to four sources simultaneously in picture-in-picture layouts. USB-C ports support 60W Power Delivery and USB-C alt-mode for A/V, Ethernet and data over a single cable. A built-in USB 3.0 hub and assignable USB host ports simplify integration of speakerphones and cameras.
HDMI Out 1 can deliver 3840x2160p at 60Hz 4:4:4 while HDMI Out 2 supports 3840x2160p at 30Hz 4:4:4, and the device conforms to DCI and RGB standards. Audio extraction is available via an analog audio output and the system supports 2ch PCM. The maximum pixel clock is 300MHz and HDCP 2.2 is supported on HDMI Out 1.
Connectivity includes 2x HDMI In, 2x USB-C inputs, 2x HDMI Out, 3x RJ-45 LAN ports and three USB 3.0 Type A device ports plus two assignable USB 3.0 Type B host ports. Wireless capability uses four Wi-Fi antennas on dual-band 2.4GHz and 5GHz networks and supports WPA2 encryption methods. RS-232 API control and an integrated HTTPS webserver provide secure management and configuration.
This switcher is suitable for boardrooms, huddle spaces and training rooms that require seamless source switching and BYOD casting. It integrates with major conferencing platforms including Zoom, Microsoft Teams and Cisco WebEx for meeting-room workflows. Built-in guide screens and custom upload options help end-users connect quickly.
The SW-640L-TX-W ships with mounting brackets and supports under-desk installation for discreet integration into room furniture. Power is supplied by a 20V 10A adapter and the unit consumes up to 160W under maximum load. Firmware is configurable via web UI and Telnet over TLS API for secure automated control.
