Description

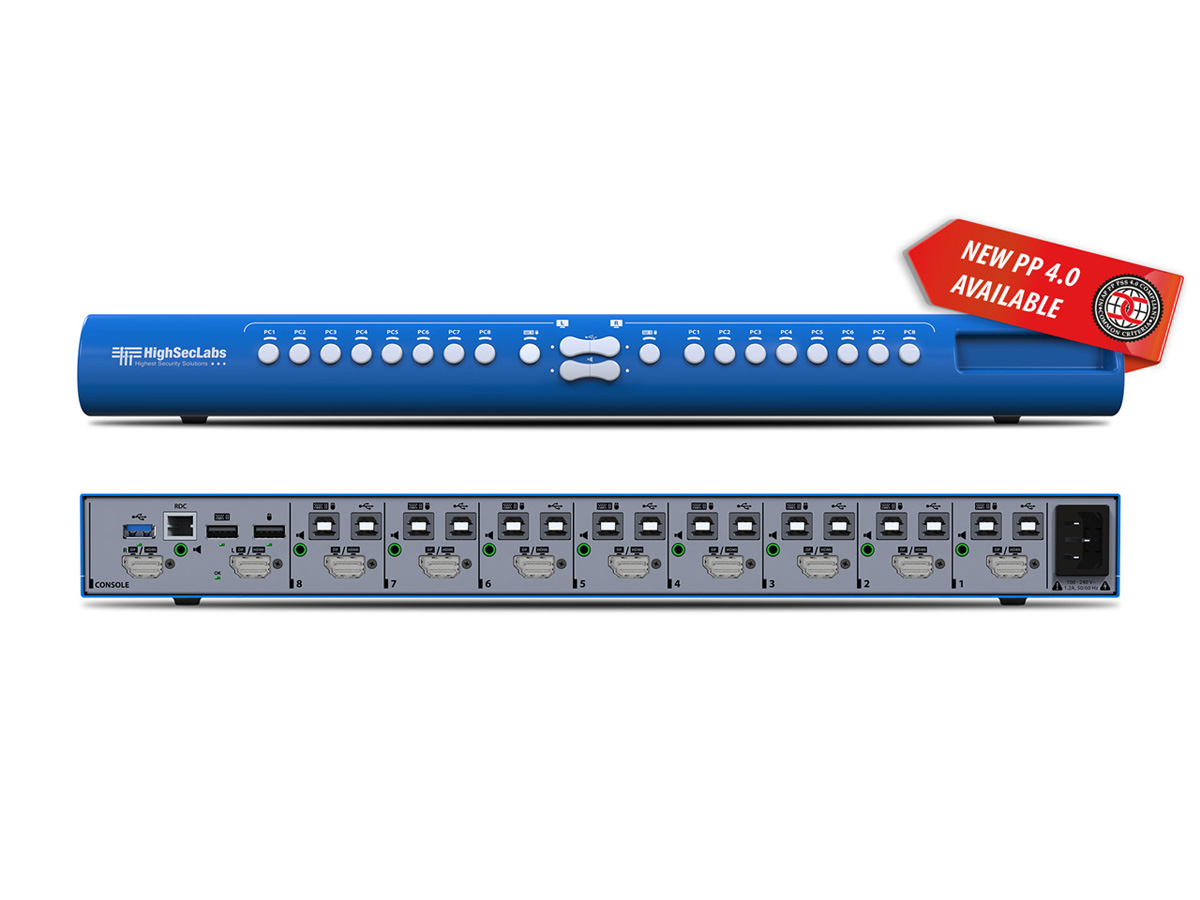

The SX82PHU-4 is a secure 8×2 mini-matrix KVM switcher designed to provide operator access to multiple isolated host computers while preserving strong peripheral separation. It enables users to view and control up to eight sources across two console displays and two USB peripherals. The unit emphasizes security and usability in multi-computer environments.
Key features include dual-display console outputs, support for DisplayPort 1.2 and HDMI 2.0 sources via a combined connector, and support for 4K 60Hz video. The switcher supports contiguous mouse-driven switching across displays and includes dedicated audio jacks plus fUSB support for selected ports. Certified security features meet NIAP Common Criteria Protection Profile PP4.0 for PSD on qualifying models.
Performance specifications include support for UHD 3840×2160 at 60 Hz on PH series models and backward compatibility with lower resolutions. The device provides USB keyboard and mouse connectivity for console and computer ports and analog audio via 3.5 mm jacks. Power is delivered by an internal power supply rated up to 35W and AC input accepts 100 to 240V AC.
Connectivity options provide two console displays and standard USB Type A console ports for keyboard and mouse, while each computer port provides DisplayPort or HDMI video together with USB Type B for HID. Select models include fUSB capability for secure peripheral switching using USB Type A on the console side and USB Type B on the host side. The switcher is compatible with Windows, Linux, and Mac operating systems.
Typical applications include control rooms where multiple information sources must be displayed in real time and meeting rooms where host and visitor systems need secure, simultaneous access. The product is also suitable for environments requiring certified peripheral separation and tamper-resistant switching. Its compact footprint and internal power make it convenient for desktop or small-rack installations.
Installation is straightforward using standard DP or HDMI cabling and USB peripheral connections, with no external converters required for combining DP and HDMI sources on PH models. The unit is engineered for continuous operation with operating temperature range 32 to 104 F and storage tolerance matching industry norms. Firmware and configuration options are accessible via the provided control interfaces to support integration into existing AV workflows.
