Description
Download Manual This Synergy kit provides an all-in-one solution for BYOD applications. Perfectly suited for education or corporate markets, this kit includes a 3-input HDBaseT in-wall transmitter, HDBaseT receiver and a 2.8” touchscreen controller. Use this kit to create a simple solution for conference rooms, huddle spaces, training rooms, lecture halls or anywhere users will bring their own devices to present.
IN-WALL TRANSMITTER
The in-wall transmitter is a perfect solution for remote inputs. Install it near a podium or in the front of a room to allow BYOD connectivity for presentations. It can also be installed into a table or desk just as easily to provide a sleek, low-profile option for huddle spaces or conference rooms.
SIMPLE CONTROL
The 2.8” touchscreen provides a simple yet effective user interface for switching inputs on the transmitter and the ability to send CEC commands to turn on or off a remote display. The interface has been pre-built by WyreStorm and doesn’t require any programming
USB EXTENSION
The transmitter and receiver support USB extension capabilities. This allows laptops to utilize connected peripheral devices such as a remote webcam & speakerphone for online meetings or a touchscreen/smart display for interactive learning experiences.
Features:

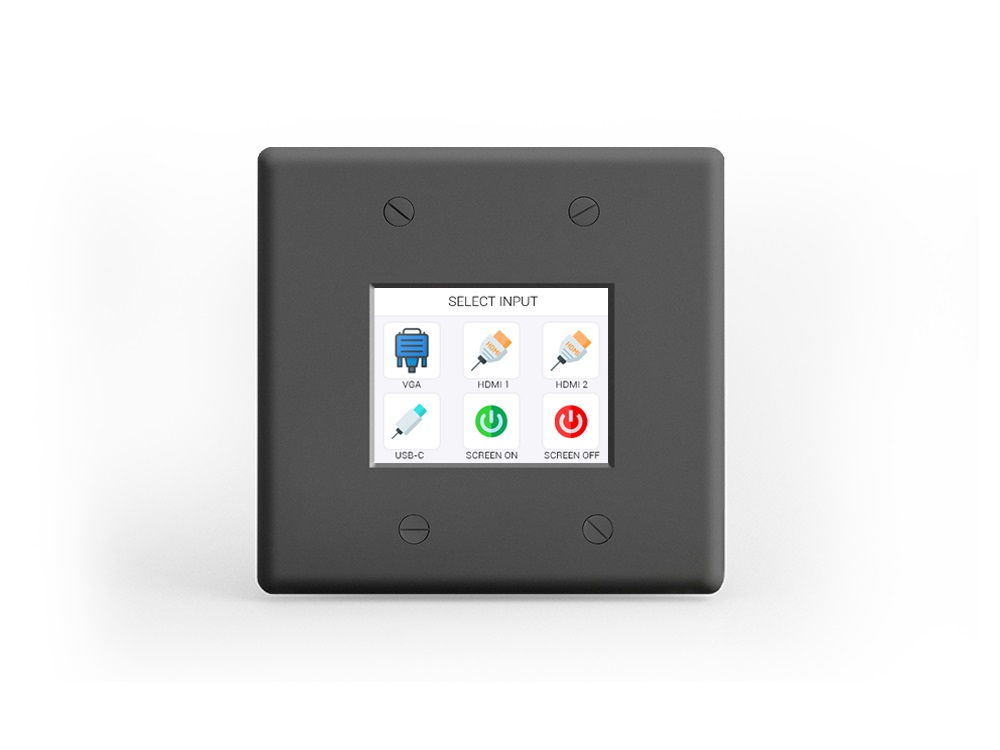

TS-280
- 2.8” color touchscreen perfect for WyreStorm switcher control
- Backlit with automatic power off and wake on touch
- Pre-configured UI’s designed for simple end-user experience
- Easy update: Download UI from wyrestorm.com and load via MicroSD card
- RJ45 connection and RS-422 communication to included RS-232 converter
- 300m/984ft transmission range to host device

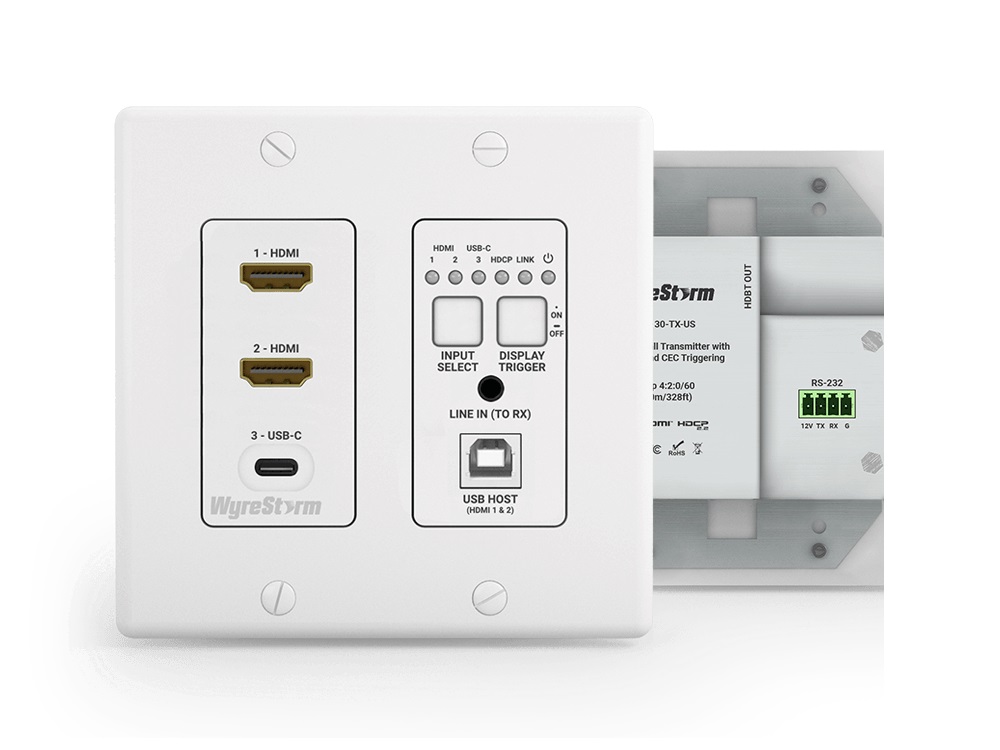

SW-130-TX-US
- HDBaseT switcher/transmitter for video conference meeting rooms
- 3-switchable inputs: 2 HDMI and USB-C
- Supports content up to 4K/60 4:2:0 or 4K/30 RGB 8-bit
- HDCP 2.2 encryption technology
- USB host connections of remote devices such as webcams, smart touchscreens and microphones
- USB-C port supports alt-mode functionality for A/V and USB data
- USB-C charging for connected devices up to 2A
- Additional 2ch analog audio input for sending separate stereo audio to RX
- Automatic or manual CEC triggering for compatible connected screens or projectors

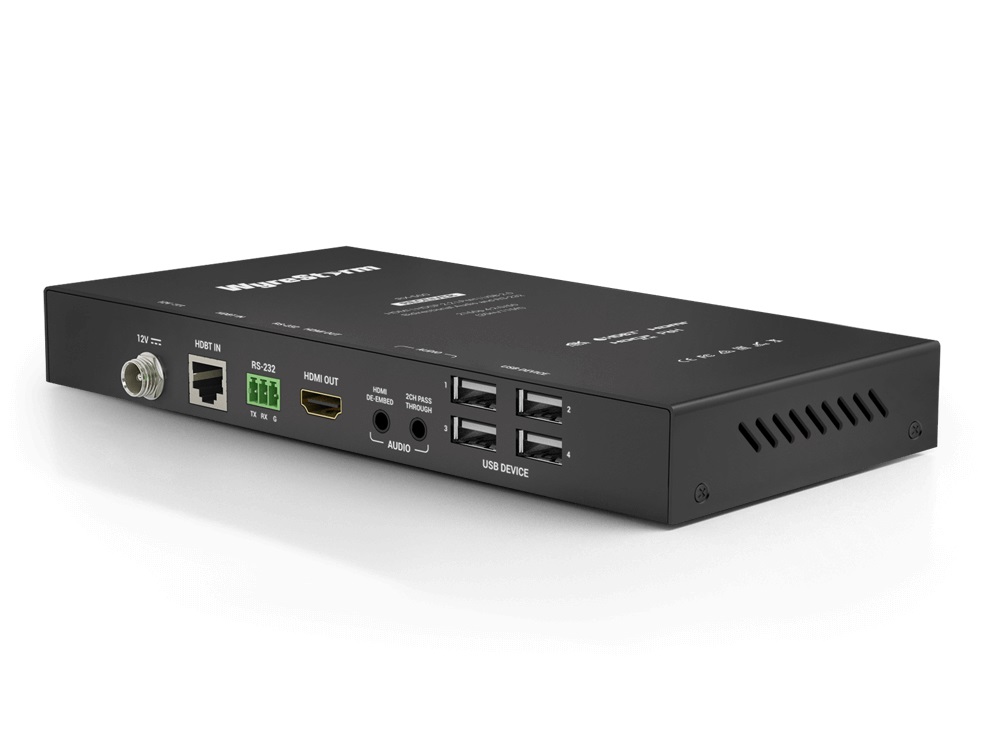

RX-500
- Supports content up to 4K/60 4:2:0 or 4K/30 RGB 8-bit up to 35m/115ft
- PoH enabled to remote power SW-130-TX transmitter
- USB 2.0 passthrough offering 190Mbps transfer and HID extension
- Features 4 USB device ports
- Supports analog audio pass-through from transmitter to receiver
- Supports analog audio de-embed from HDMI output
