Description

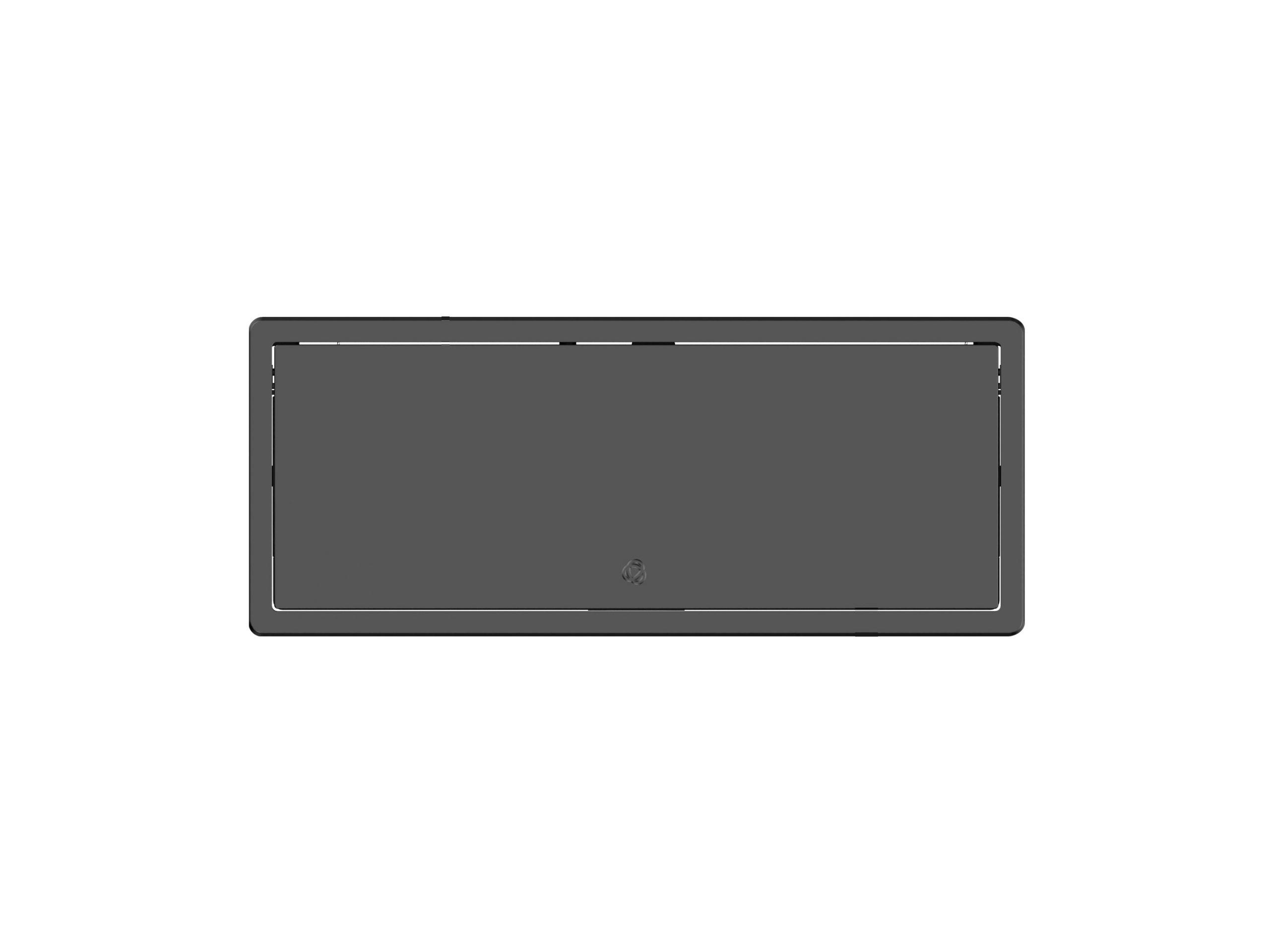

The T-IN4-REC2 is an in-table rectangular connectivity box designed to provide a clean modular interface for meeting room furniture. It installs into a standard tabletop cutout and presents a low-profile bezel and lid that preserve the table aesthetic. The unit accepts four TBUS modules to support a range of AV and power connections.
Key features include a slide-and-lock modular system that installs and services from above the table, a slim outer frame with narrow edges and no visible screws, and a choice of three bezel colors. The lid protects unused modules and provides a finished look when ports are not in use. Installation and maintenance are simplified by above-table access to all modules.
Technical specifications include a table cutout of 234 x 89 mm and outer dimensions of 242 x 99.5 x 113 mm. The product weight is approximately 2 kg and it operates between 0 to +40 C while storing safely between -40 to +70 C. Relative humidity ratings cover 10% to 90% operating and 5% to 95% storage, both non-condensing.
Connectivity is based on Kramer TBUS modular components that slide into the frame without screws and lock in place for secure operation. The unit accepts up to four modules, enabling a mix of AV, data and power modules as required. All modules are serviced from the top side of the table for rapid changes and upgrades.
Typical applications include boardrooms, conference rooms, classrooms, training facilities, lab tables and lecterns where a neat, concealed connection point is required. The clean bezel and lid options help match the table finish while keeping cables and connectors out of sight until needed. The unit supports modern meeting spaces that require frequent reconfiguration of AV inputs.
Installation is straightforward – cut a 234 x 89 mm opening, drop the frame into the table, and insert TBUS modules from above. The slide-in modules require no screws and the locking device secures modules in place. The frame complies with common global certifications and is built from recyclable materials to support sustainability goals.
