Description

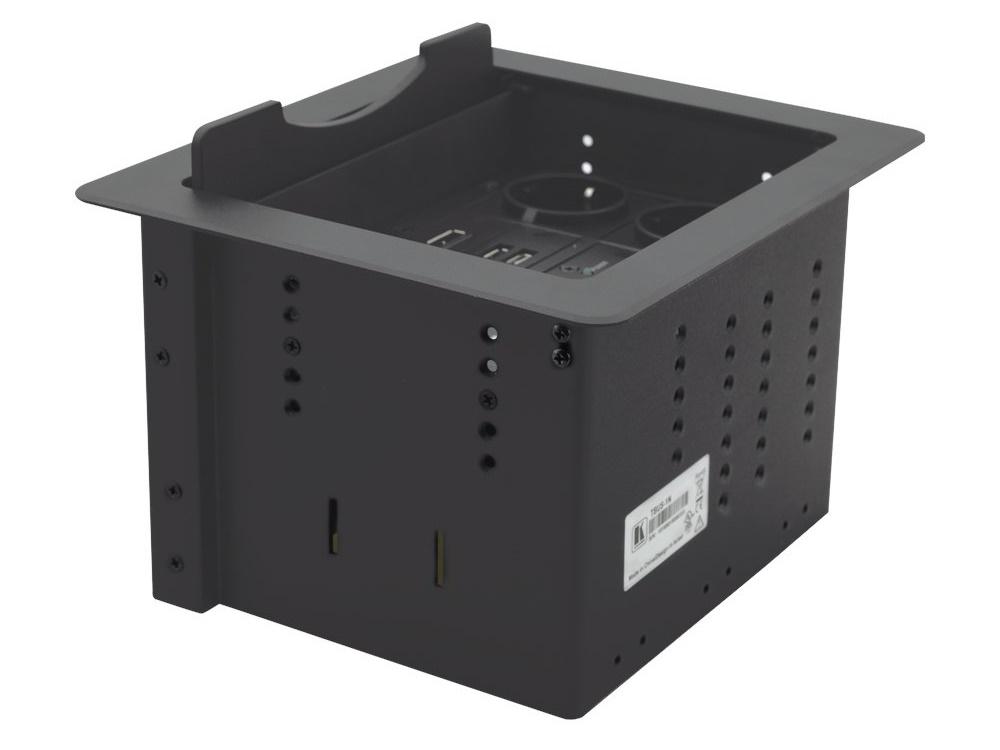

Download Manual The TBUS-1N is a modular furniture-mounted connection bus enclosure that easily installs into a table or podium top. Once assembled, the TBUS−1N enables you to connect any equipment to the room’s presentation system via cable access or passive interfaces. When the cables are not in use, they can be stored inside the unit, covered by the lid and out of sight. NOTE: The TBUS enclosure, power socket, power cord & inserts are purchased separately.
Features:
- Modular Design – Tailors to your requirements.
- Cover – Black (Note: other customized colors can be ordered).
- Height Adjustment – Use screw holes to set the inner frame (ordered separately) to the desired height.
- Power Sockets – Single or dual power socket openings are suitable for any of the following power sockets: USA, UK, Switzerland, Germany (the Europlug), Belgium-France, Italy, Australia, Israel, Brazil, South Africa or “Universal” for use anywhere.
- Cutout Dimensions – 195 +2mm x 173 +2mm (7.68 +0.08in x 6.82 +0.08in).
