Description

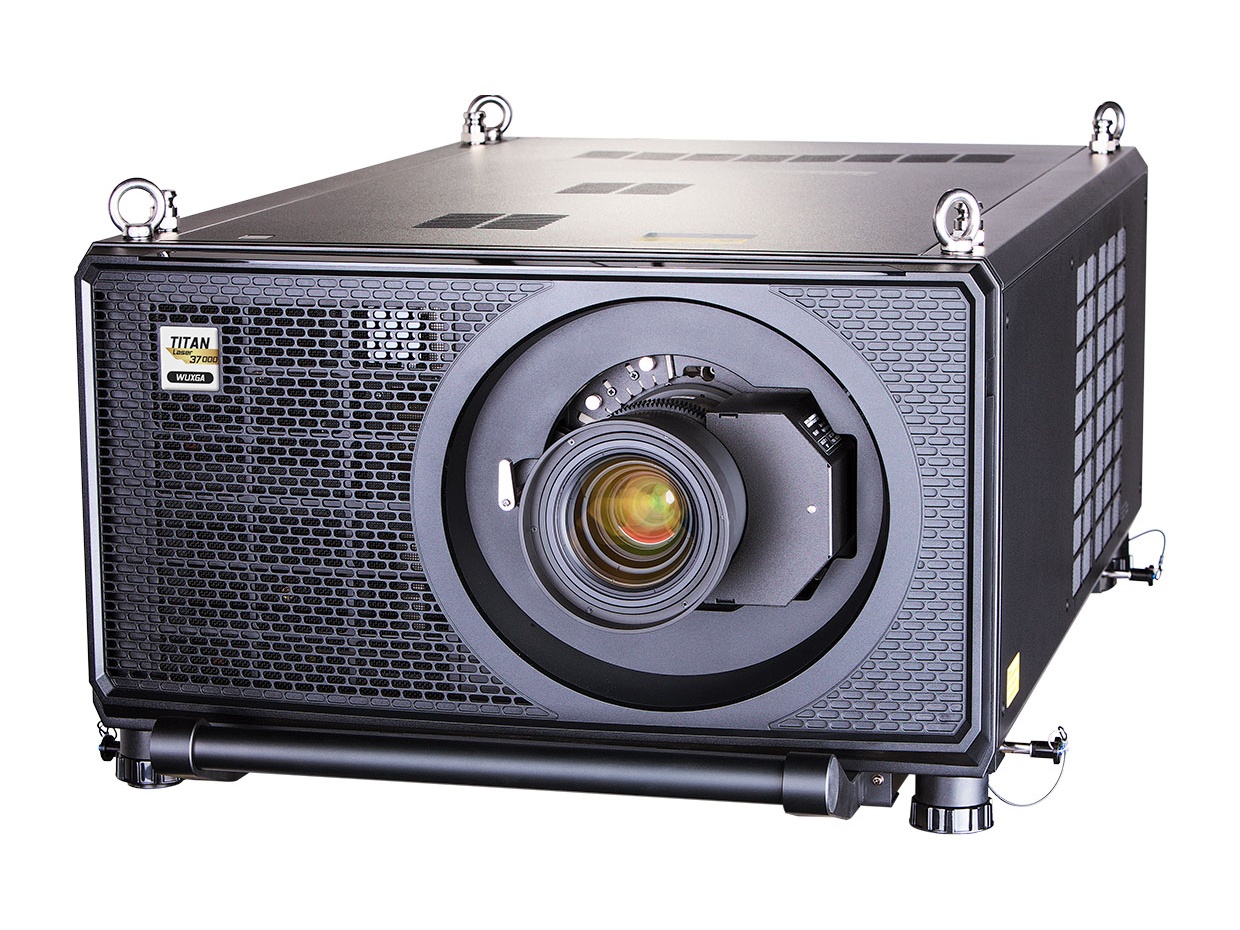

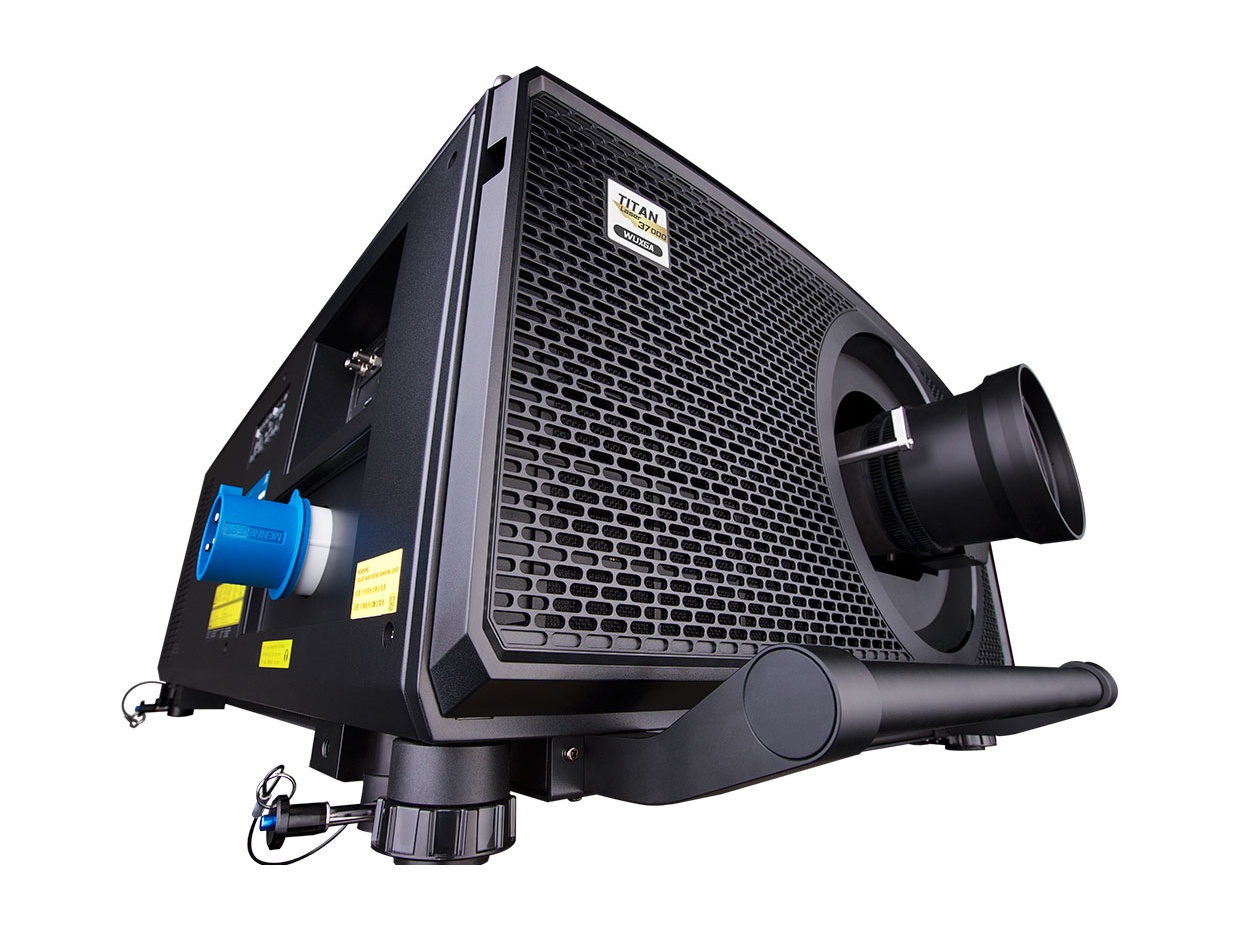

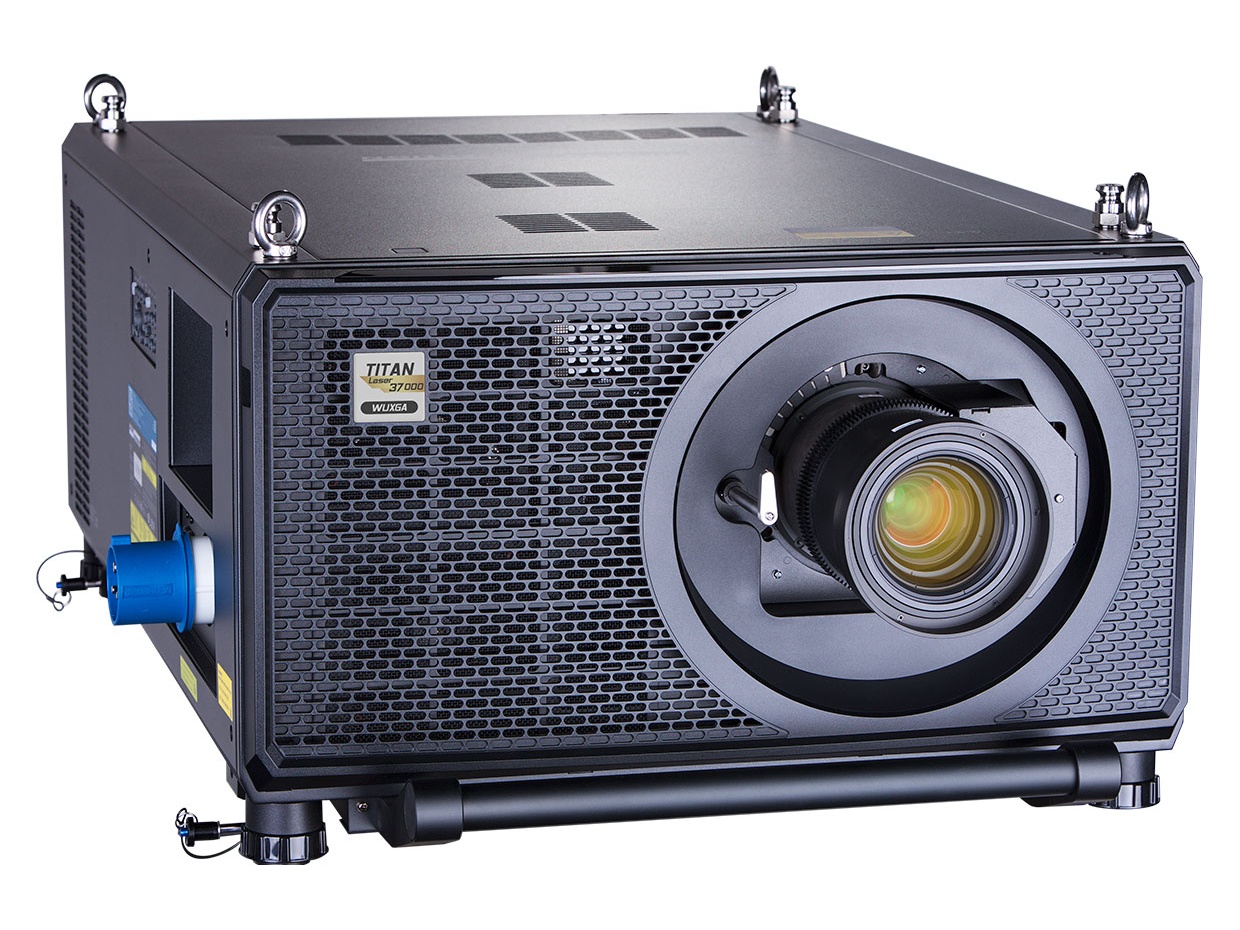

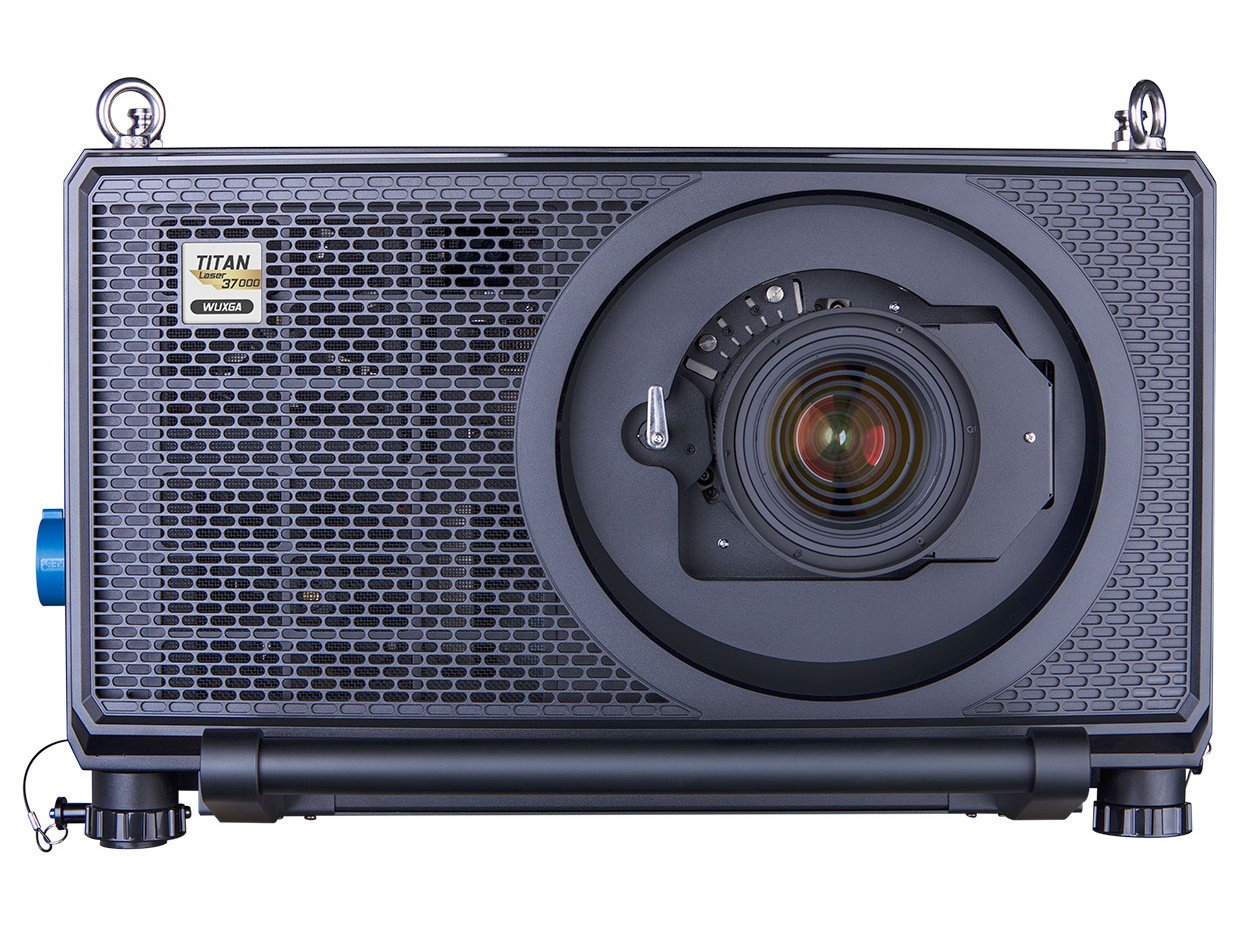

The TITAN Laser 37000 is a high-output large-venue projector designed to deliver extremely bright and colour-stable images. It is a 3-chip DLP laser-phosphor system built for demanding events and fixed installations. The projector supports both WUXGA and 4K-UHD content while maintaining consistent brightness and colour performance.
Key features include an IP60 sealed optical engine, laser phosphor illumination, and advanced image processing such as HDR handling and geometry correction. The system provides up to 37000 lumens in WUXGA mode and up to 31000 lumens in 4K-UHD mode while retaining a high contrast ratio. It also supports Constant Brightness Control and DMX Art-Net for event integration.
Technically the display uses three 0.96 inch WUXGA DMDs with 2.3 megapixels visible at WUXGA and an 87% fill factor for sharp imagery. The projector offers 18,000:1 contrast, a typical laser life of 20,000 hours and a sealed, filterless optical path to minimise maintenance. Multiple motorised lens options and intelligent lens memory allow precise optical alignment across long throw distances.
Connectivity covers DisplayPort 1.2, dual HDMI 2.0b, HDMI 1.4b for dual-pipe 3D, 3G-SDI in/out, and HDBaseT over CAT5e/6 supporting up to 4K-UHD 3840×2160@60Hz 4:2:0. Control and automation features include LAN, RS-232, DMX Art-Net, Crestron RoomView compatibility and email alerting. The unit supports Picture-in-Picture, Edge Blending, Non-linear Warp and a real-time clock for scheduled operation.
Typical applications include large auditoriums, live event staging, command and control rooms and simulation environments where sustained high brightness and low maintenance are required. The sealed optics and liquid-cooled radiator heat exchanger minimise dust ingress and remove the need for air filters. HDR processing, precise colour control and seven-point colour adjustment make it suitable for colour-critical presentations.
Installation is supported by multiple lens options with motorised shift, zoom and focus on most lenses and an optional lens adaptor for selected third-party optics. The projector supports flexible mounting orientations including front/rear table and ceiling installation and includes comprehensive network control software for group management. Overall, the TITAN Laser 37000 balances extreme brightness, professional connectivity and long-term operational reliability for demanding AV deployments.
