Download Manual Please NOTE: This listing is for B-Stock item. It means that this unit was refurbished by manufacturer and holds full manufacturer warranty, however it may have scratches, signs of wear and tear or come not in original box.

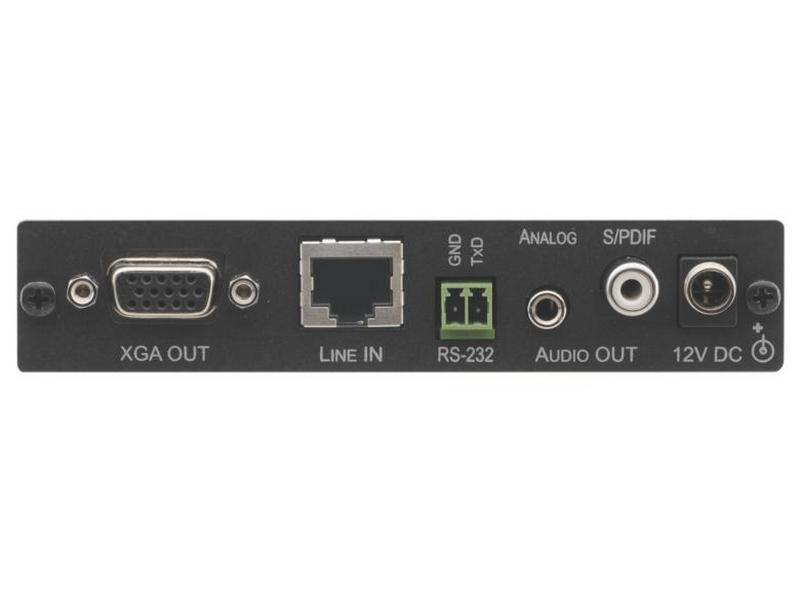

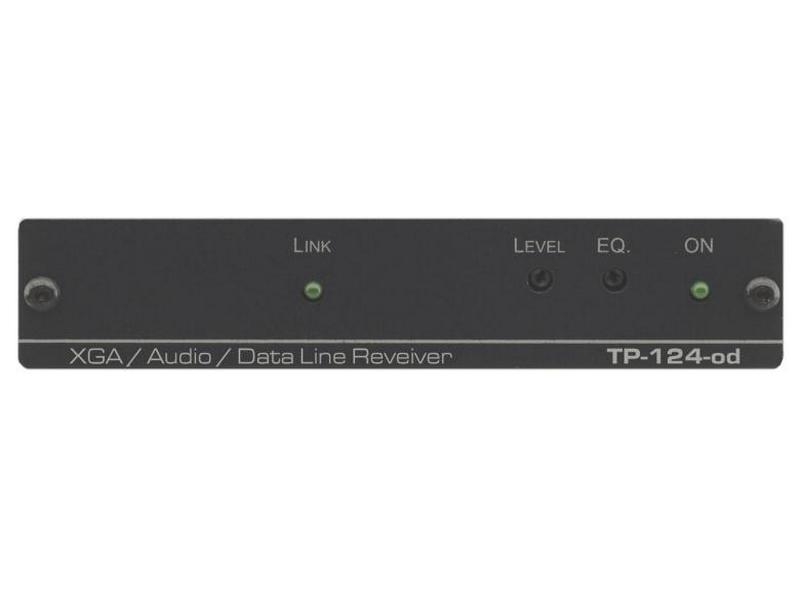

The TP-124-od is a twisted pair receiver for computer graphics video, unbalanced stereo audio and RS-232 data signals. The TP-123-od converts computer graphics, audio, and RS-232 inputs to a twisted pair signal, and the TP-124-od converts the twisted pair signal back into computer graphics, audio and RS-232 data signals.
Features
- Max. Resolution – WUXGA & 1080p.
- HDTV Compatible.
- EMP Protection – Protected from voltage surges induced by the electromagnetic field of nearby lightning. The system does not protect against direct lightning strikes.
- Twisted Pair Connectors – RJ-45 connectors.
- Audio Outputs – Unbalanced stereo and S/PDIF (24-bit 48kHz) simultaneously.
- Level (Gain) and EQ (Peaking) Controls.
- System Range – Up to 100m (300ft), greater distances possible depending on resolution and cable.
- Cable – UTP (unshielded twisted pair) or STP (shielded twisted pair) such as CAT 5.
- Power Connect™ System – A single connection to the transmitter or receiver powers both units when the devices are within 50m (150ft) of each other.
- Unidirectional RS-232 – Maximum bitrate 19.2kbps.
- RS-232 Connect™ System – The unit can send RS-232 commands on the twisted pair cable on top of the video signal. All the system units must have RS-232 Connect to use this feature.
- Compact Kramer TOOLS™ – 3 units can be rack mounted side-by-side in a 1U rack space with the optional RK-3T rack adapter.
