Description
This listing is for TP-142 only. Use description below as a general reference.

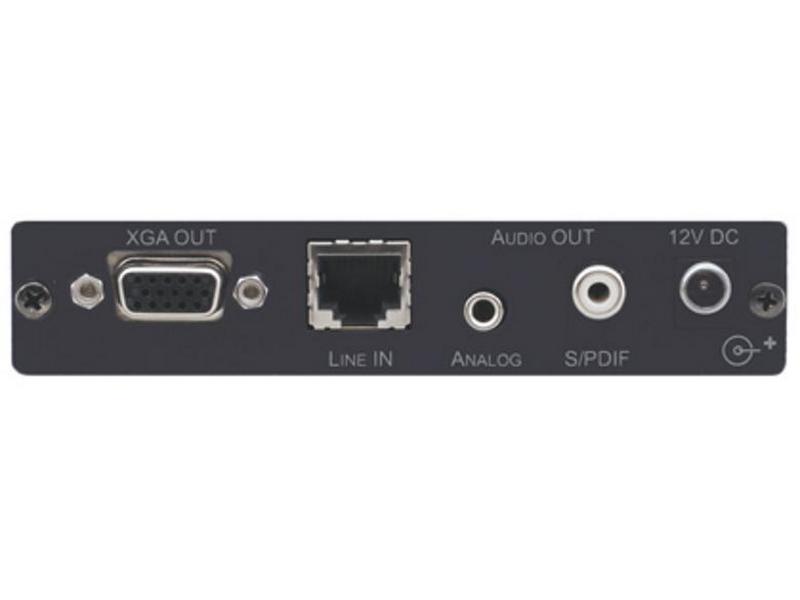

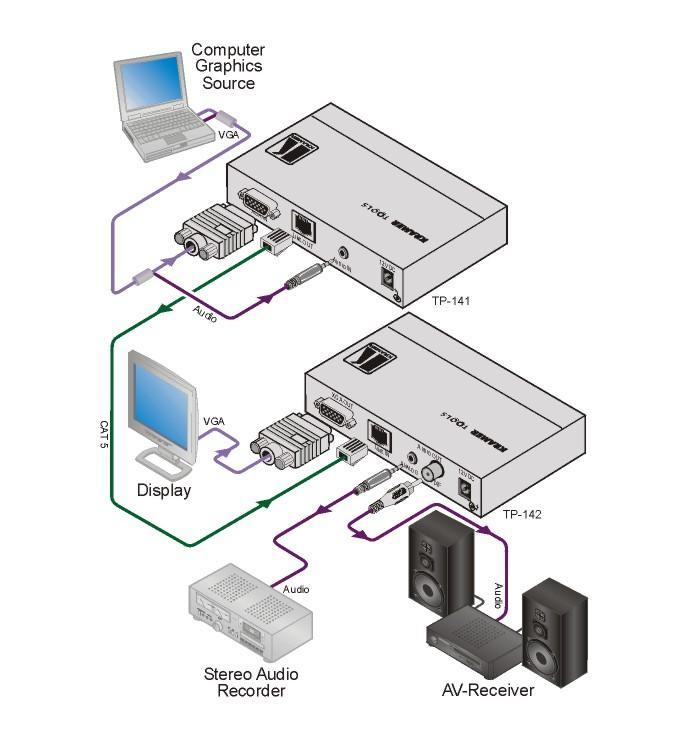

Download Manual The TP-141 and TP-142 are an extended range twisted pair transmitter and receiver for computer graphics video (including HDTV) and unbalanced stereo audio signals, with high electrical noise immunity. The TP-141 converts computer graphics video and audio inputs to twisted pair signals, and the TP-142 converts the twisted pair signals back into computer graphics video, unbalanced stereo and S/PDIF digital audio signals.
Features:
- Resolution – Up to UXGA.
- HDTV Compatible.
- Twisted Pair Connectors – RJ-45 connectors.
- Audio Outputs – Unbalanced stereo and S/PDIF (24-bit 48kHz) simultaneously (TP-142).
- Level (Gain) and EQ (Peaking) Controls (TP-142).
- System Range – Up to 250m (750ft) when using Kramer BCP-HDTP cable, or 600ft when using Kramer’s standard skew-free cable, such as the BC-XTP.
- Cable – UTP (unshielded twisted pair) or STP (shielded twisted pair) such as CAT 5.
- Power Connect™ System – Only one unit in a system, the transmitter or the receiver, needs to be connected to a power source when the devices are within 50m (150ft) of each other.
- Compact Kramer TOOLS™ – 3 units can be rack mounted side-by-side in a 1U rack space with the optional RK-3T rack adapter.
Compatible Transmitters: TP-141
