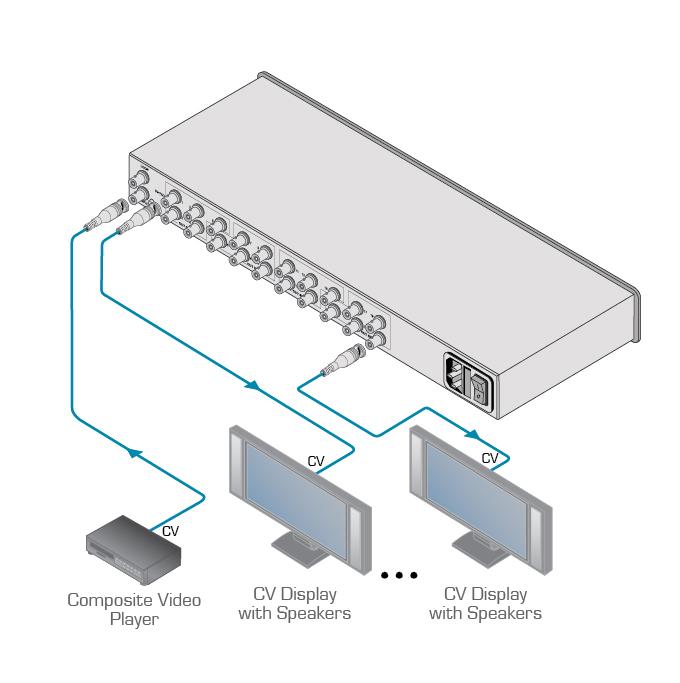

The VM-1021N is a high-performance distribution amplifier for composite or SD-SDI video signals. It provides controls to compensate for signal losses inherent in long cable runs.
Features
| INPUT: | 1 composite video/single component with loop, 1Vpp/75? on a BNC connector with termination switch. |
| OUTPUTS: | 20 composite/component video, 1Vpp/75? on BNC connectors. |
| VIDEO BANDWIDTH (-3DB): | 350MHz. |
| DIFF. GAIN: | 0.1%. |
| DIFF. PHASE: | 0.07Deg. |
| K-FACTOR: | <0.05%. |
| VIDEO S/N RATIO: | 74dB. |
| CONTROL: | Level: -1.1dB to + 2.7dB; EQ.: 0 to 2.9dB @4.4MHz. |
| NON-LINEARITY: | 0.1%. |
| COUPLING: | DC. |
| POWER CONSUMPTION: | 230V AC, 50/60Hz (115V USA), 6.7VA. |
| OPERATING TEMPERATURE: | 0° to +40°C (32° to 104°F). |
| STORAGE TEMPERATURE: | -40° to +70°C (-40° to 158°F). |
| HUMIDITY: | 10% to 90%, RHL non-condensing. |
| DIMENSIONS: | 19" x 7" x 1U W, D, H, rack mountable. |
| WEIGHT: | 2.6kg (5.7lbs) approx. |
| INCLUDED ACCESSORIES: | Power cord. |
| Weight | 6.00 lbs |
|---|
