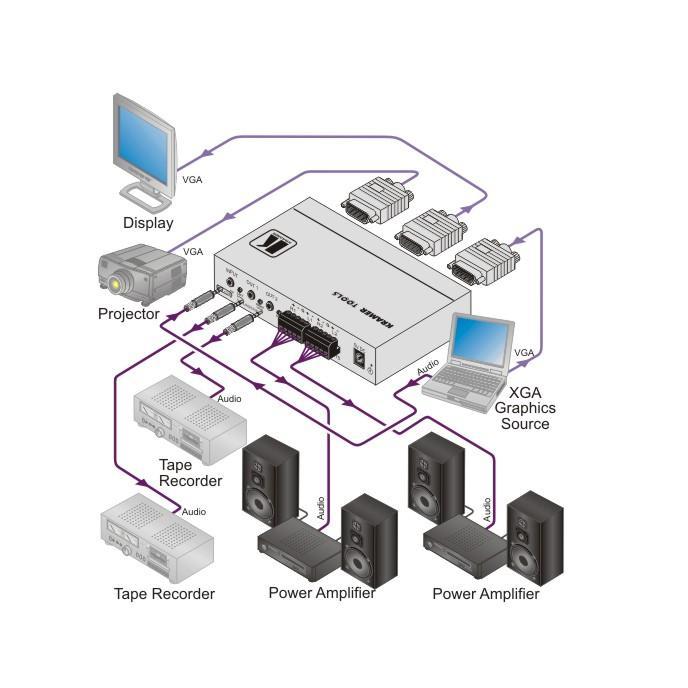

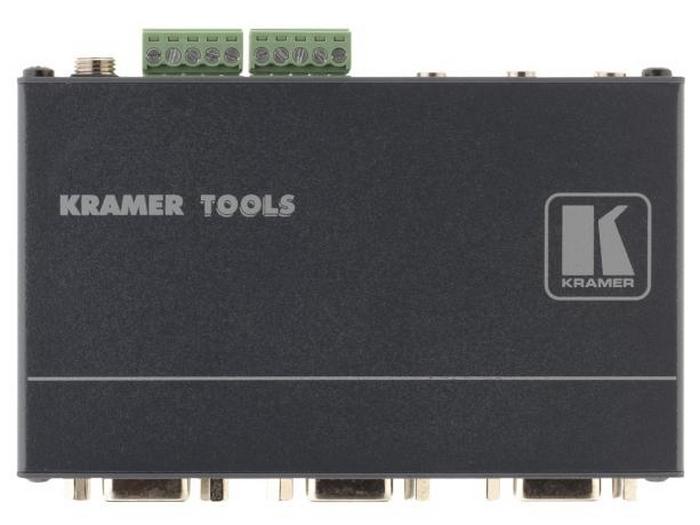

The VP-200AK is a high-performance distribution amplifier for computer graphics video signals, with resolutions up to and exceeding UXGA, and stereo audio signals. It takes a computer graphics video and an unbalanced stereo audio input and outputs simultaneously two computer graphics video, two balanced, and two unbalanced stereo audio signals.
- High Bandwidth – 510MHz (-3dB).
- HDTV Compatible.
- Audio Outputs – Simultaneous balanced and unbalanced stereo.
- EQ (Peaking Control) Audio Level (Gain) Controls.
- Kr-isp® Advanced Sync Processing – Ensures compatibility with a wide range of computers (even if the sync level is too low) by restoring the sync signal waveform. Kr-isp® advanced sync processing can be enabled or disabled via internal switches.
- ID Bit Control.
- Compact Kramer TOOLS™ – 3 units can be rack mounted side-by-side in a 1U rack space with the optional RK-3T rack adapter.
SPECIFICATIONS

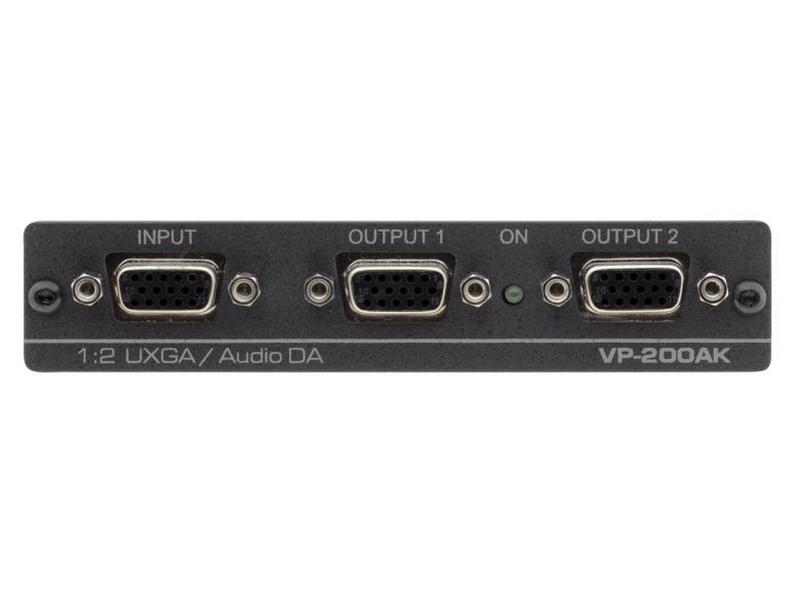

| INPUTS: | 1 XGA on a 15-pin HD (F) connector; 1 unbalanced stereo audio on a 3.5mm mini jack. |
| OUTPUTS: | 2 UXGA on 15-pin HD (F) connectors; 2 unbalanced stereo audio on 3.5mm mini jacks; 2 balanced stereo audio on detachable 5-pin terminal blocks. |
| MAX. OUTPUT LEVEL: | Video: 2.0Vpp; Audio: 7.2Vpp. |
| BANDWIDTH (-3dB): | Video: 510MHz; Audio: >100kHz. |
| DIFF. GAIN: | 0.55%. |
| DIFF. PHASE: | 0.10Deg. |
| K-FACTOR: | <0.05%. |
| S/N RATIO: | Video: 72.5dB @5MHz; Audio: 82dB (balanced); 88dB (unbalanced). |
| CONTROLS: | EQ: 0dB to 4.7dB @50MHz. |
| COUPLING: | Video: DC; Audio: AC at the output; DC at the input. |
| AUDIO THD + NOISE: | 0.005% @1kHz (unbalanced and balanced). |
| AUDIO 2nd HARMONIC: | 0.003% (unbalanced); 0.001% (balanced). |
| POWER SOURCE: | 5V DC, 120mA. |
| DIMENSIONS: | 12cm x 7.18cm x 2.42cm (4.7″ x 2.8″ x 0.95″) W, D, H. |
| WEIGHT: | 0.3kg (0.66lbs) approx. |
| ACCESSORIES: | Power supply, 3ft 15-pin HD cable, mounting bracket. |
| OPTIONS: | RK-3T 19″ rack adapter. |
