Description

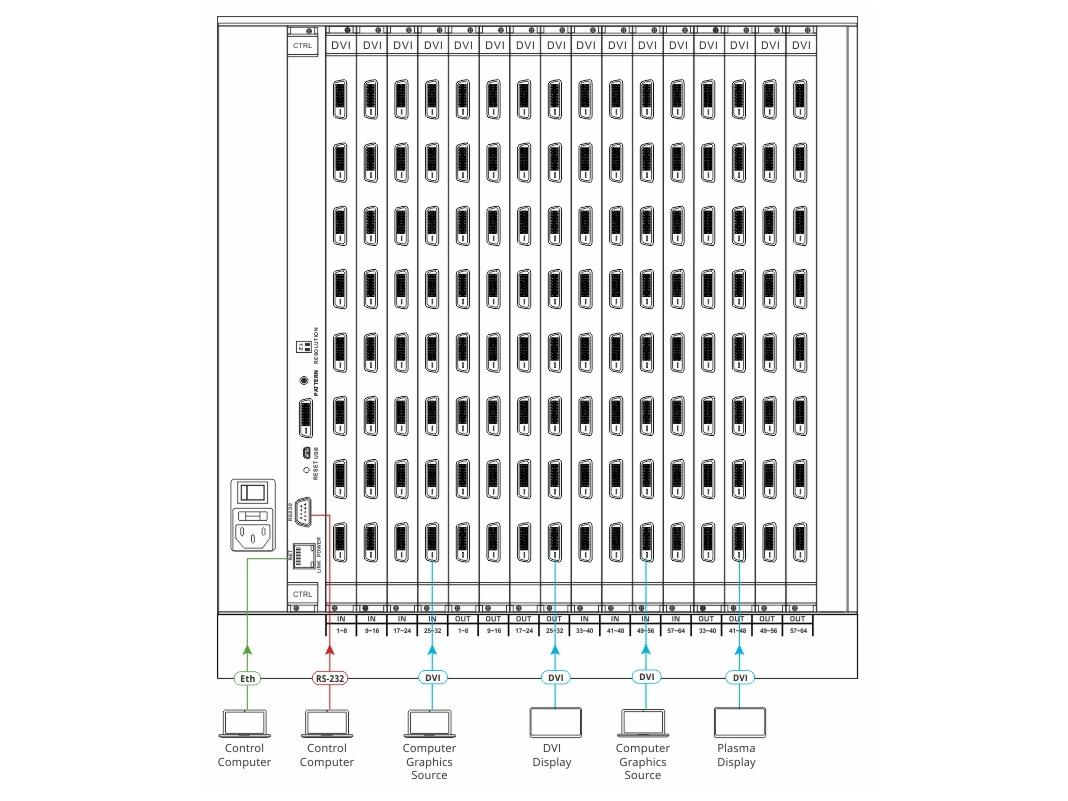

Download Manual VS-6464DN-EM is a high-performance 8×8 to 64×64 modular matrix switcher chassis* for AV signals. The unit is a multi-format digital switcher, populated from 8×8 to 64×64 in increments of eight inputs and/or eight outputs. The chassis includes two (optional three) redundant power supplies, a control module and a test module that can monitor and test any input and output in the matrix. VS-6464DN-EM supports a wide variety of input and output cards for different AV signals.
Features:
- Kramer Core™ – FLEXIBLE INFRASTRUCTURE CONVERSION! Copper, Fiber or Twisted Pair – all can be used at the same time, according to input/output module selection. The matrix receives digital signals from compatible Kramer transmitters, automatically converts between available infrastructure options and sends the signals to compatible Kramer receivers. Kramer Core™ solution is the ultimate in versatility!
- Max. Data Rate – 6.75Gbps (2.25Gbps per graphic channel) when using compatible cards.
- HDTV Compatible.
- HDCP Compliant – With DVI (HDCP) and HDMI modules.
- HDMI Support.
- Kramer Equalization & re‑Klocking™ Technology – Rebuilds the digital signal to travel longer distances.
- Optional Fast Switching Support – For fraction of a second switching.
- Modular & Easily Configurable Platform – Input or output module types can be mixed and added in increments of 8 from 8×8 up to 64×64.
- Protocol 3000 Support.
- Flexible Configuration – To disable HDCP support and convert between HDMI and DVI.
- Default EDID – For each input.
- EDID Capture – Copies and stores the EDID from a display device.
- Take Button – Executes multiple switches all at once.
- Memory Locations – Stores multiple switches as presets to be recalled and executed as needed.
- Built-in Test Pattern Module – With 4 output resolutions for troubleshooting video problems and additional monitor port with audio embedding and de-embedding.
- Front Panel Lockout.
- Optional Redundant Power Supply – Hot-swappable.
- Modular Cooling System – 2 easily replaceable, low-noise, hot-swappable fan racks.
- Flexible Control Options – Front panel, IR remote (included), RS-232 (K-Router™ Windows®-based software is included), Ethernet, mini USB port for communicating with unit and FW upgrade, in/out audio jacks for unit testing, and reset button for convenient unit reset (for future use).
- Worldwide Power Supply – 100-240V AC.
APPLICATIONS
- Professional display systems requiring video signal routing.
- Broadcast, presentation and production facilities, as well as monitoring in large duplication systems.
- Rental/staging applications.
*Chassis only. Cards sold separately
