Description
The VS-R264 is a standalone Full HD audio/video encoder and decoder designed to stream, record, and decode live video over IP. It encodes 1920x1080p video using H.264 and supports simultaneous streaming and local recording to SD, USB, or internal storage. The unit is compact and operates independently without a dedicated PC – ideal for reliable 24/7 AV distribution.
Key capabilities include H.264 long GOP encoding up to 30 Mbps, 3 simultaneous RTMP outputs for simulcast and backup, and support for RTMP RTSP HLS RTP UDP streaming protocols. The VS-R264 also embeds digital audio in HDMI and accepts balanced analog inputs for professional audio integration. Recording formats include MPEG2-TS and MP4 allowing native archive and delivery options.
Performance details include selectable encode scaling up to 1920x1080p, frame rate limiting, adjustable keyframe intervals, and variable or constant bit rate control from 500 kbps to 30 Mbps. The device includes 17 GB internal storage in firmware version 2.0.1 and supports MP4 recording in addition to TS. Audio encoding uses AAC at 64k to 512k bps and supports 32k 44.1k and 48k Hz sampling.

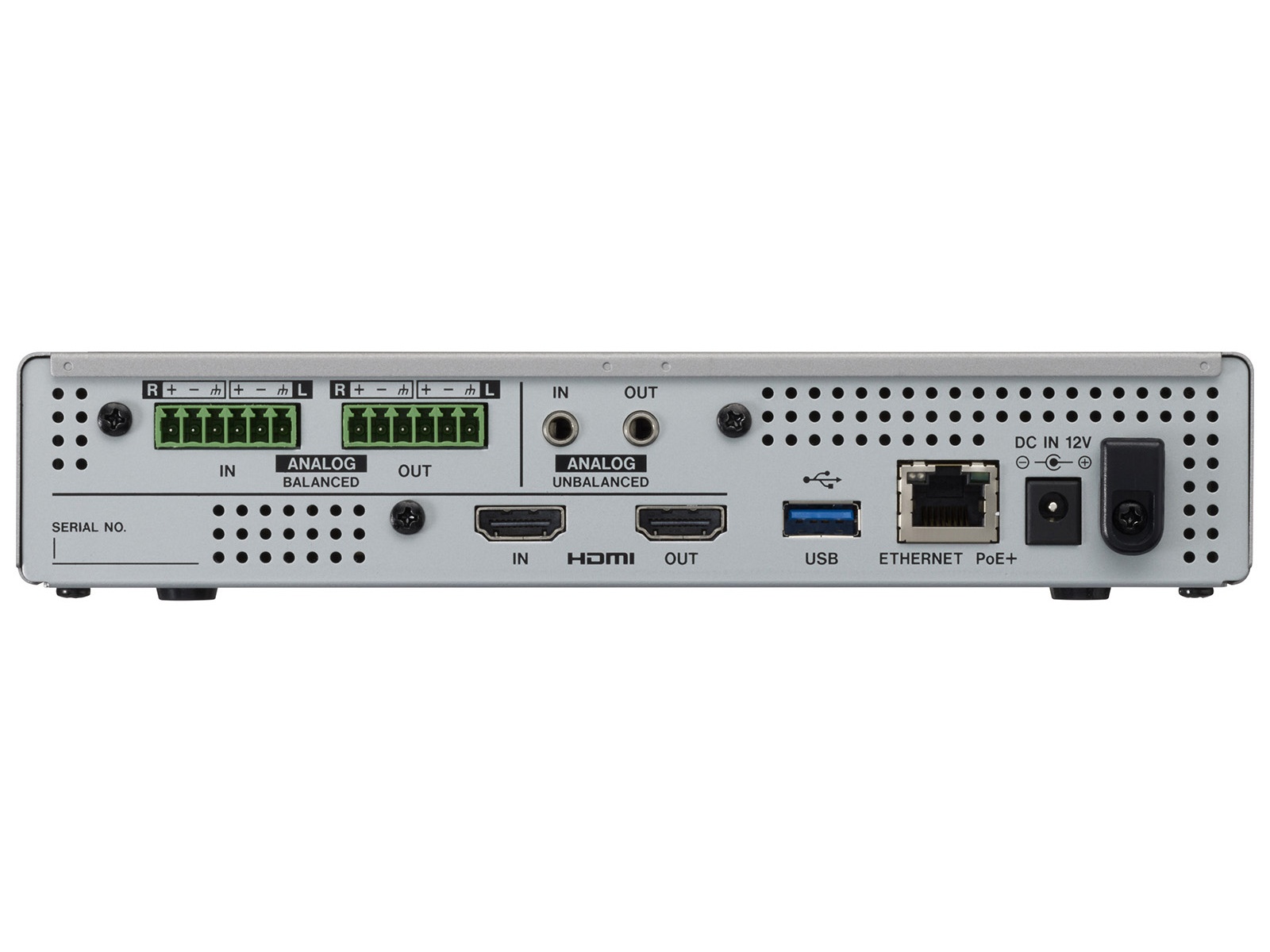

Connectivity covers HDMI IN v1.4a and HDMI OUT v2.0, balanced Euroblock analog I/O and unbalanced 3.5 mm jacks, Gigabit Ethernet with PoE+ support, and USB 2.0/3.0 for external media. Control and integration are available via a RESTful API V2 and standard TCP/IP UDP HTTP protocols for use in control systems. The unit accepts Category 5e or faster STP cables and supports 1000BASE-T networks.
The VS-R264 suits corporate AV, education, houses of worship, government, and live event streaming where stable long-duration encoding and local backup are required. Use cases include live campus feeds, auditorium events, remote training, and distributed digital signage where simultaneous streaming and archival recording are essential. Multiple RTMP outputs provide redundancy and multi-platform distribution.
Installation and operation are straightforward – the half-rack chassis includes mounting brackets and Euroblock plugs for quick wiring. PoE+ support simplifies deployment where remote power is preferred, and front-panel controls plus RESTful API enable both local and centralized control. Firmware updates and configuration options allow integration into complex AV over IP systems and ensure long-term reliability.
