Description
DESCRIPTION

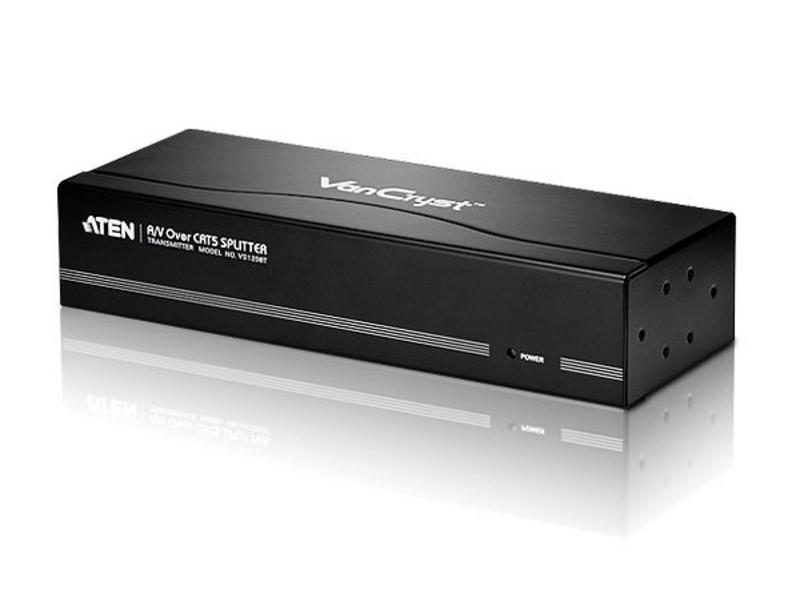

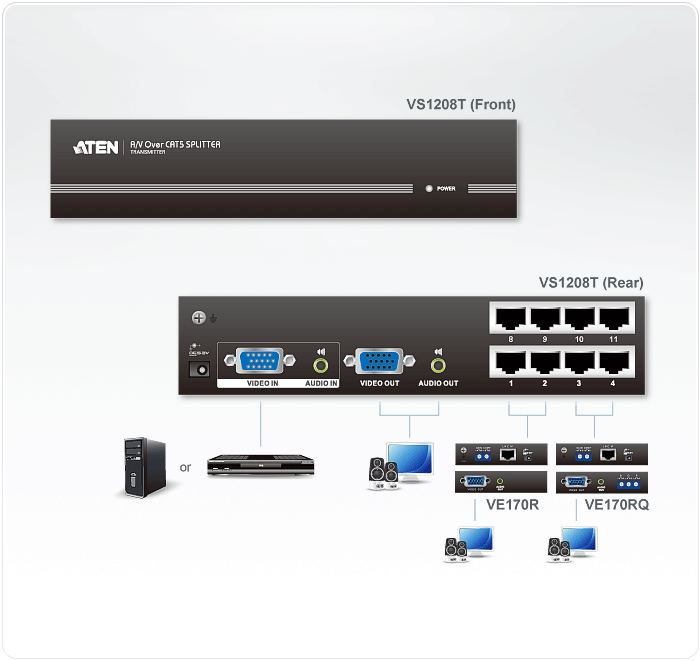

The VS1208T A/V Over Cat 5 Splitter is a cost-effective and efficient solution for sending high quality audio and video content to multiple displays. Connect to an ATEN A/V Over Cat 5 Receiver* via Cat 5e cable and the displays can be located up to 300 m (1000 ft) away from the single input source.
The VS1208T A/V Over Cat 5 Splitter is ideal for any professional A/V installation that requires multimedia content to delivered to multiple destinations.
FEATURES
- One audio/video input to 8 audio/video outputs via Cat 5e cable
- Supports local display + 8 remote displays
- Supports up to 225 MHz bandwidth
- Uses Cat 5e cable to extend displays up to 300 m
- Superior video quality – up to 1920 x 1200@60Hz
- Audio enabled (mono)
- Built-in 8KV/15KV ESD protection
- Rack-mountable
SPECIFICATIONS
| Video connections | |
| Input | 1 x HDB-15 Male |
| Output | 1 x HDB-15 Female |
| Connectors | |
| Audio Input | 1 x Mini Audio Jack Female |
| Audio Output | 1 x Mini Audio Jack Female |
| Power | 1 x DC Jack |
| Unit to Unit Connectors | 8 x RJ-45 Female |
| Video Resolution | 1920×1200 @ 60Hz |
| Cable Distance | 1000 ft |
| Power | |
| Voltage | 5.3 VDc |
| Amps | 350 mA |
| Power Consumption | 1.64 W 5.6 BTU / hr |
| Housing | |
| Case | Metal |
| Operating Temperature | 0 – 122 F |
| Storage Temperature | -4 – 140 F |
| Humidity | 0 – 80% RH, Non-condensing |
| Physical Properties | |
| Unit Weight | 1.4 lb. |
| Case Qty | 5 |
| Case Weight | 14.0 lbs |
| Case Dimension | 12.8x 9.8x 6.9 in. |
| Unit Package Dimensions | 6.3x 1.2x 9.4 in. |
| Unit Weight with package | 2.3 lbs. |
| Unit Dimension | 7.9x 2.9x 1.7 in. |
- * The specification and pictures are subject to change without notice.
- * All trademarks and logos are the properties of their respective holders.
Package Contents
- 1x VS1208T A/V Over Cat 5 Splitter
- 1x Power Adapter
- 1x Rack Mount Kit
- 1x Foot Pad Set (4 pcs)
- 1x Grounding Wire
- 1x User Guide
